Air Dryer: Service and Repair

Air Suspension Compressor Drier

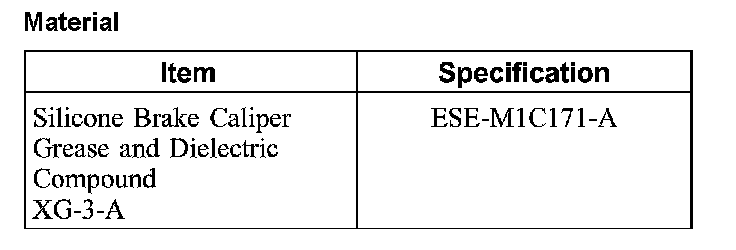

Material:

Removal and Installation

CAUTION: Suspension fasteners are critical parts because they effect performance of vital components and systems and their failure can result in major service expense. A new part with the same part number or an equivalent part must be installed, if installation is necessary. Do not use a part of lesser quality or substitute design. Torque values must be used as specified during reassembly to make sure of correct retention of these parts.

1. Remove the air compressor.

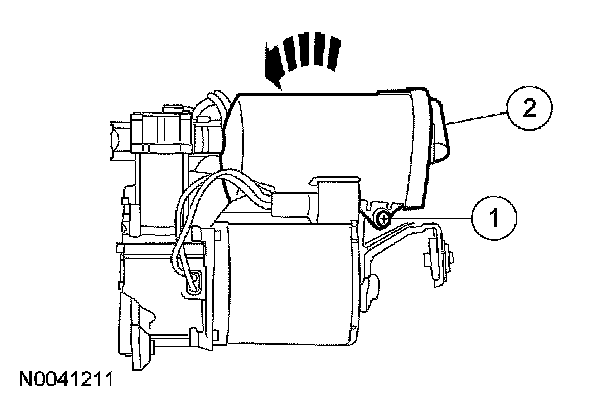

2. Remove the compressor drier.
1 Remove the retaining screw.
^ To install, tighten to 3 Nm (27 inch lbs.).

2 Rotate the compressor drier 90° to unlock then remove the air compressor drier.

3. NOTE: Inspect the O-ring for damage and install a new O-ring as necessary. Lubricate the solenoid seal area with grease.

NOTE: When installing the air lines, make sure the white air line is fully inserted into the fitting for correct installation.

NOTE: Ride height adjustments must be carried out after the air compressor/drier is installed.

To install, reverse the removal procedure.
