Test B: DTC B1359 - Ignition Run/ACC Circuit Failure
Pinpoint Test B: DTC B1359 - Ignition RUN/ACC Circuit FailureNormal Operation
When placed in the RUN position, the ignition switch provides fused battery voltage to these circuits:
^ 296 (WH/VT)
^ 158 (BK/PK)
^ 1717 (VT/OG)
^ 687 (GY/YE)
^ 294 (WH/LB)
When placed in the ACC position, the ignition switch provides fused battery voltage to these circuits:
^ 296 (WH/VT)
^ 158 (BK/PK)
Possible Causes
^ Fuse(s)
^ Circuit open
^ Circuit shorted
^ Central junction box (CJB)

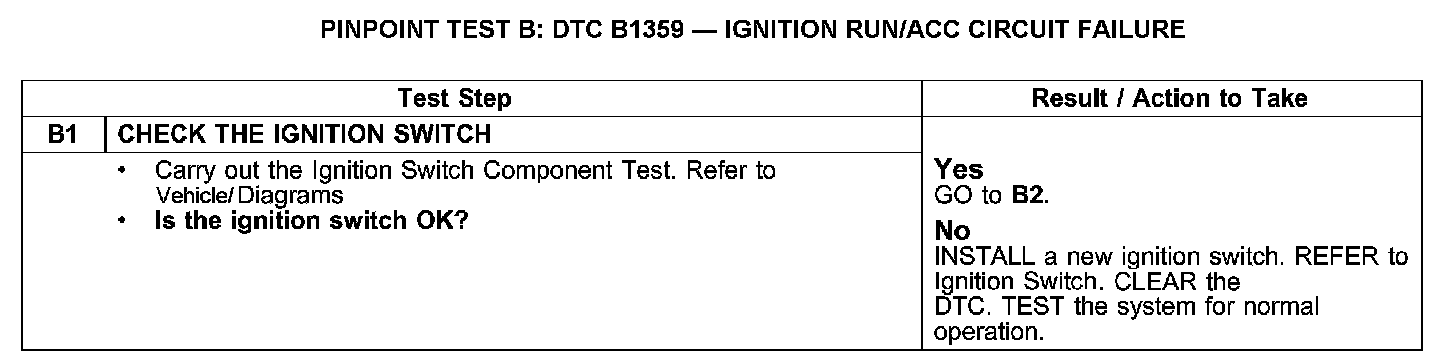

B1:

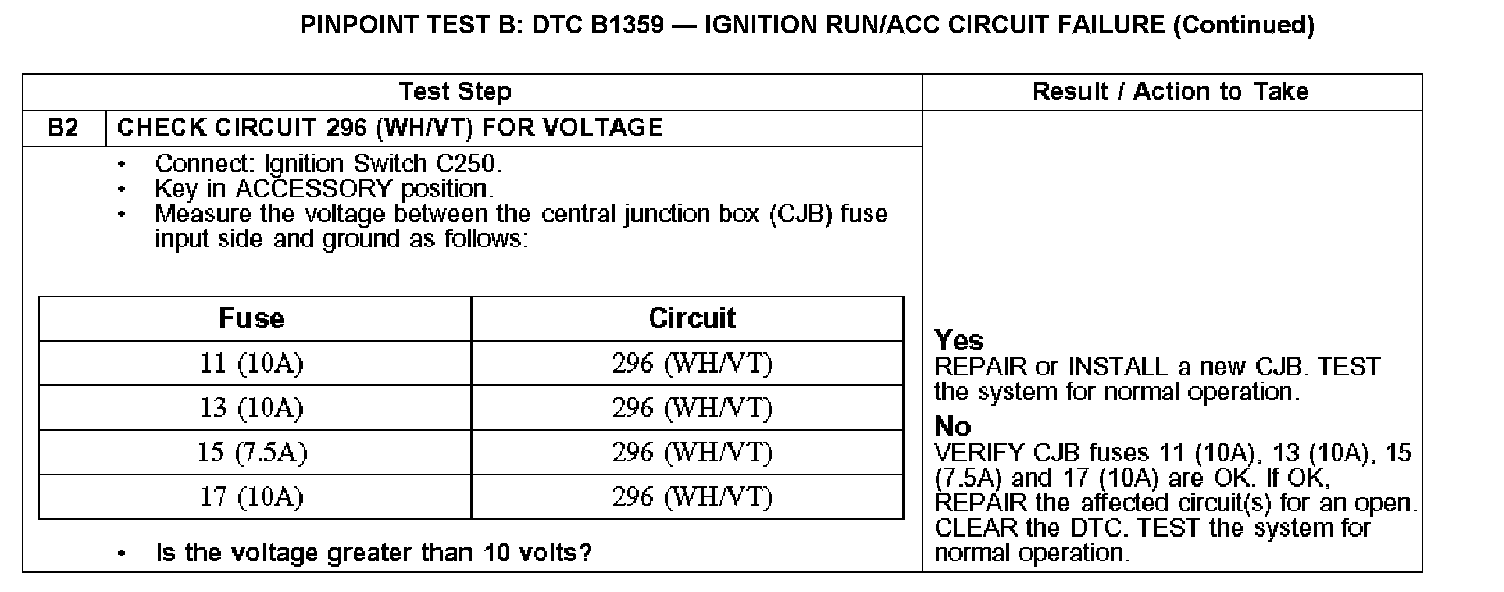

B2:
