Evaporative System Service Port: Service and Repair

EVAPORATIVE EMISSION TEST PORT







Removal and Installation

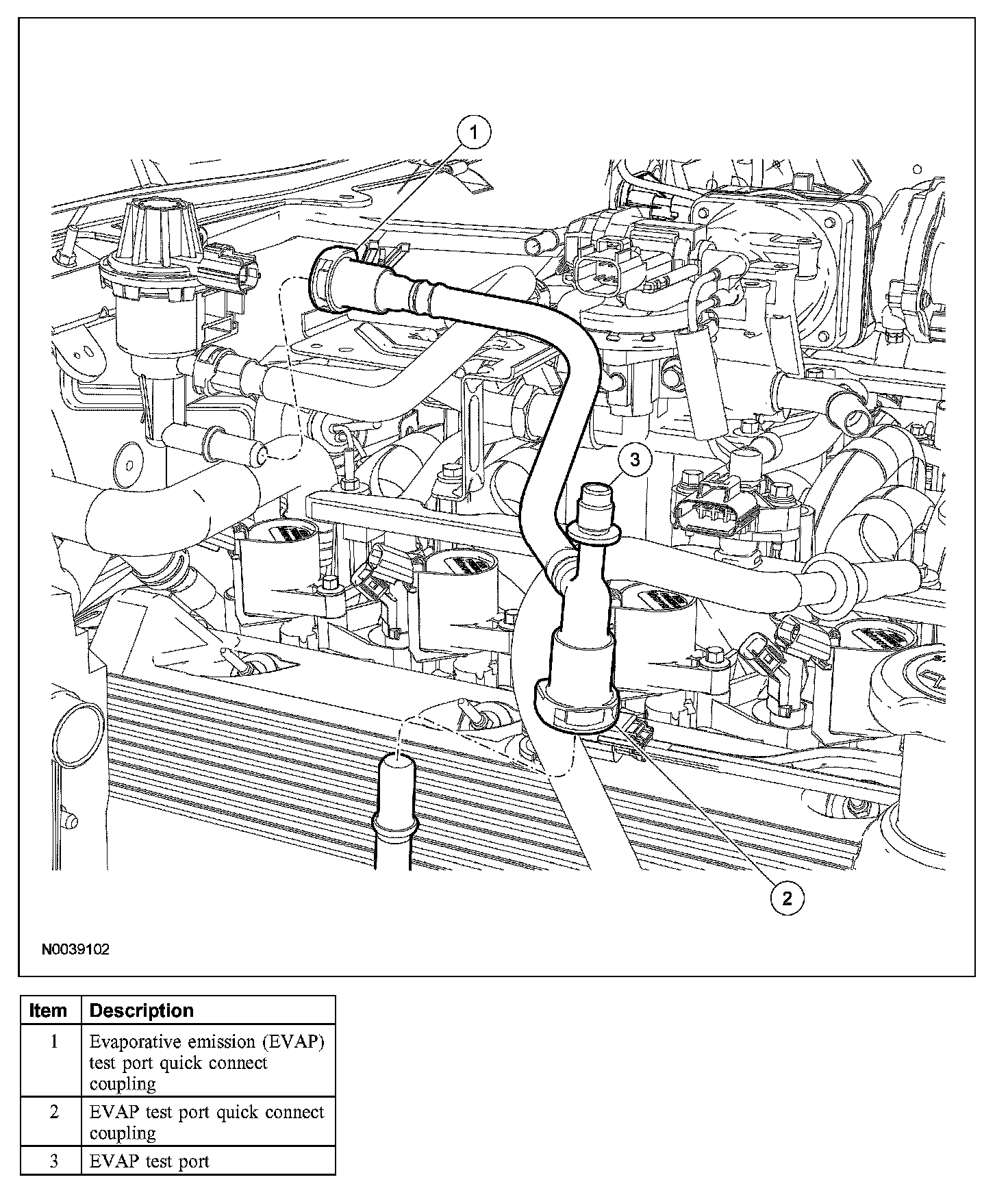

1. Disconnect the evaporative emission (EVAP) test port quick connect coupling at the EVAP canister purge valve.
2. Disconnect the EVAP test port quick connect coupling at the EVAP vapor tube and remove the EVAP test port.
3. To install, reverse the removal procedure.
- Leak test the system. Evaporative Emission System Leak Test
- Carry out the Evaporative Emission Repair Verification Drive Cycle. Evaporative Emission Repair Verification Drive Cycle
