Test L: Temperature Control Is Inoperative/Does Not Operate Correctly - Manual Climate Control

PINPOINT TEST L: TEMPERATURE CONTROL IS INOPERATIVE/DOES NOT OPERATE CORRECTLY - MANUAL CLIMATE CONTROL

L1:

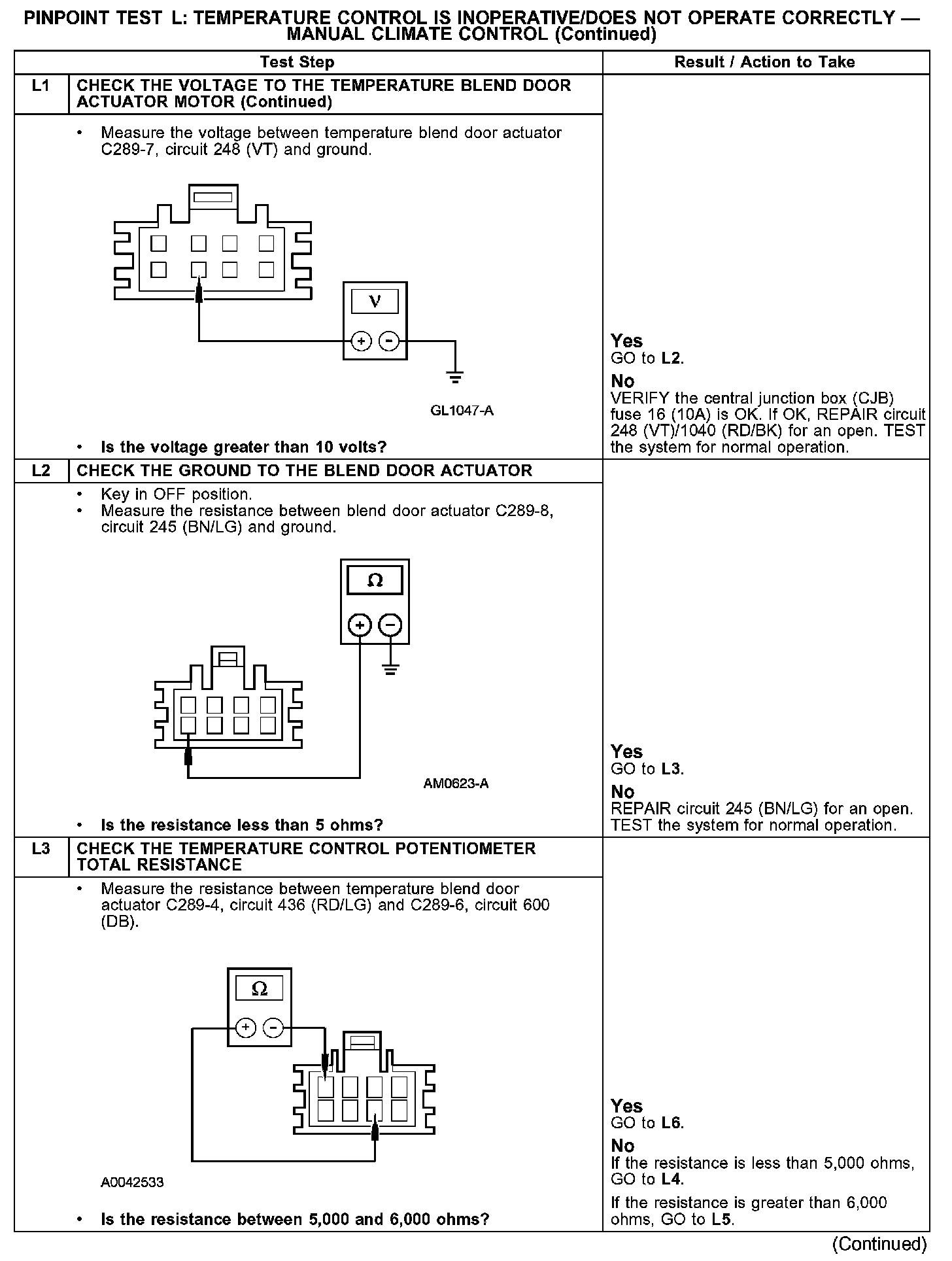

L1-L3:

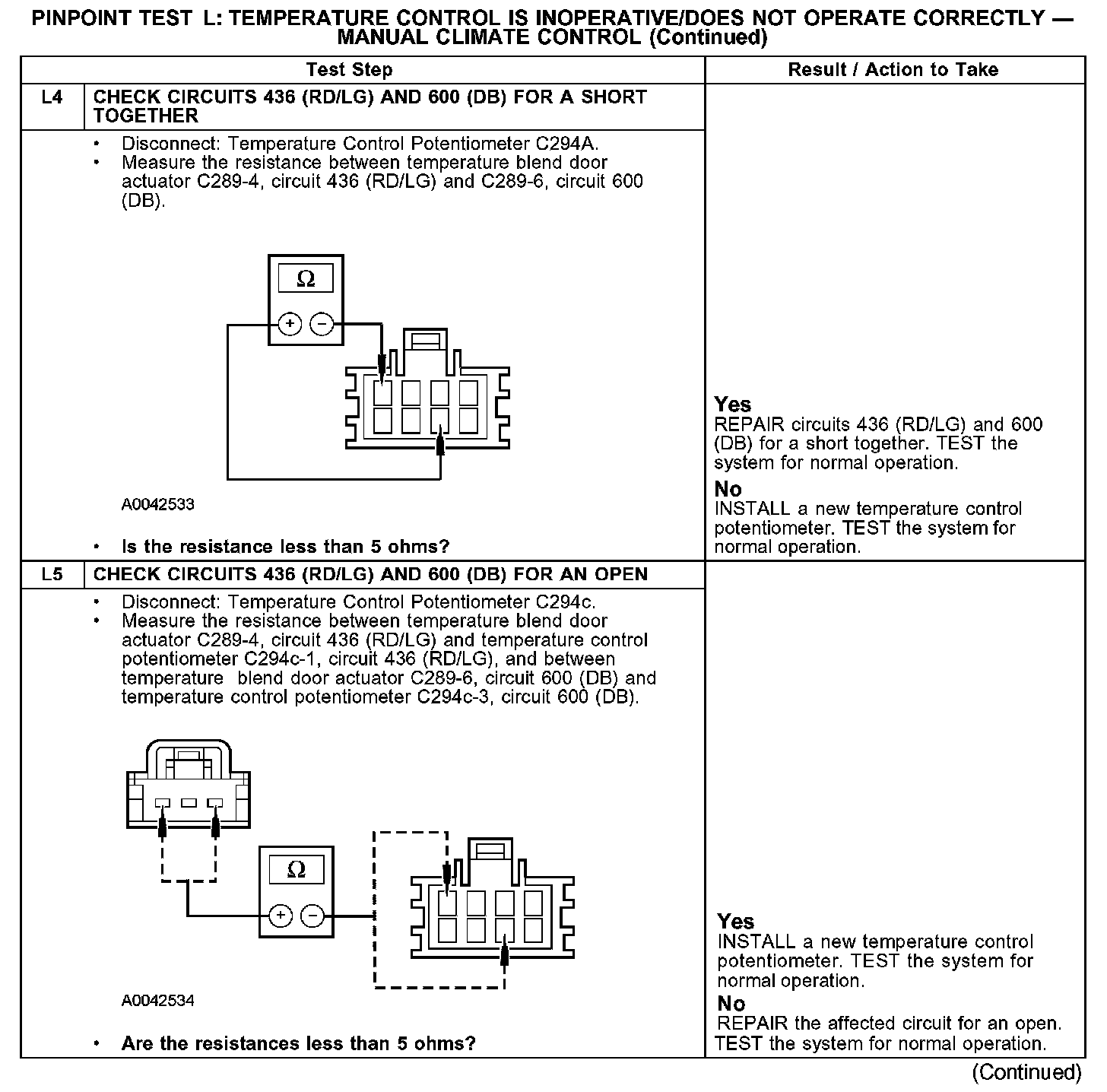

L4-L5:

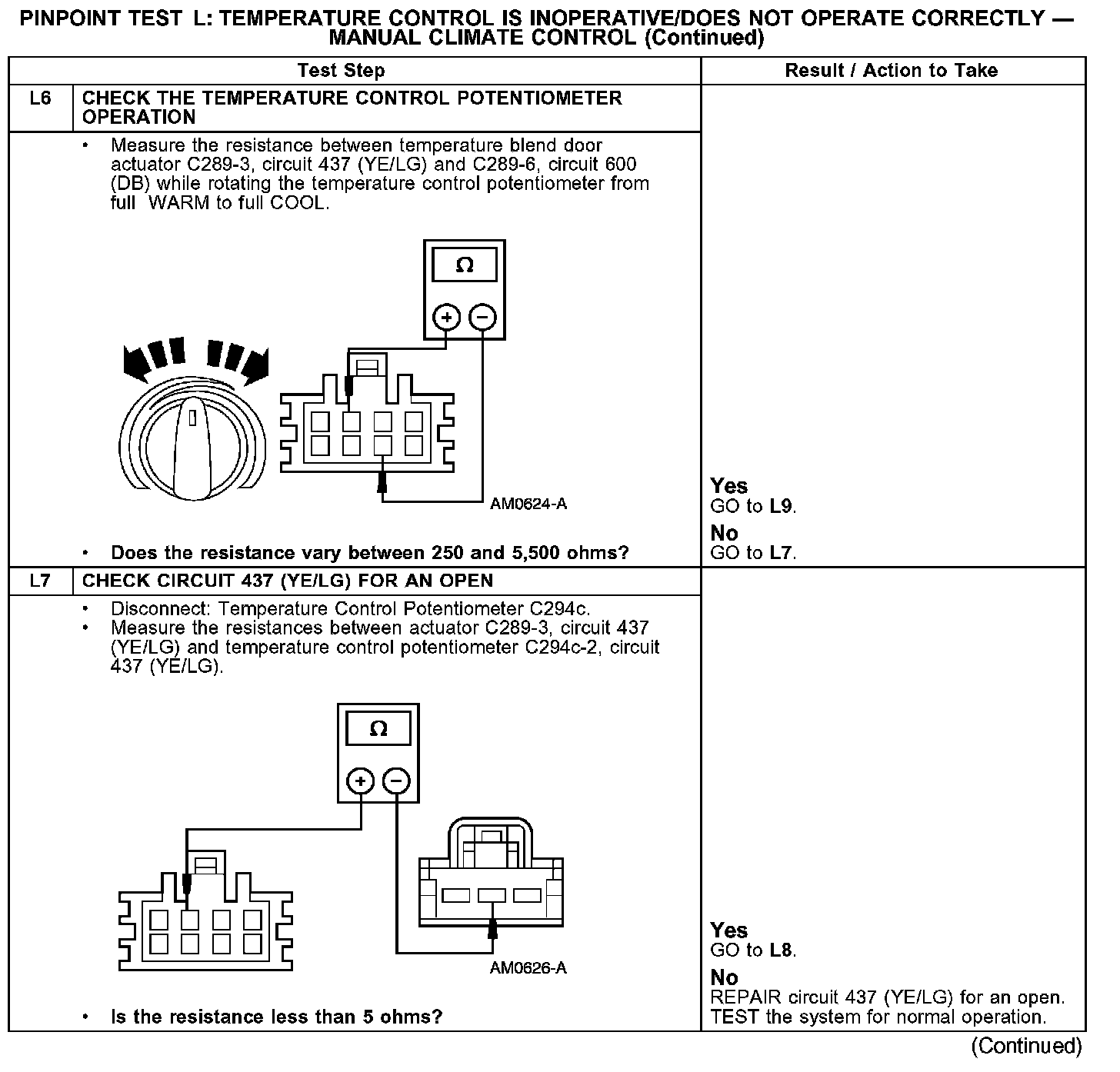

L6-L7:

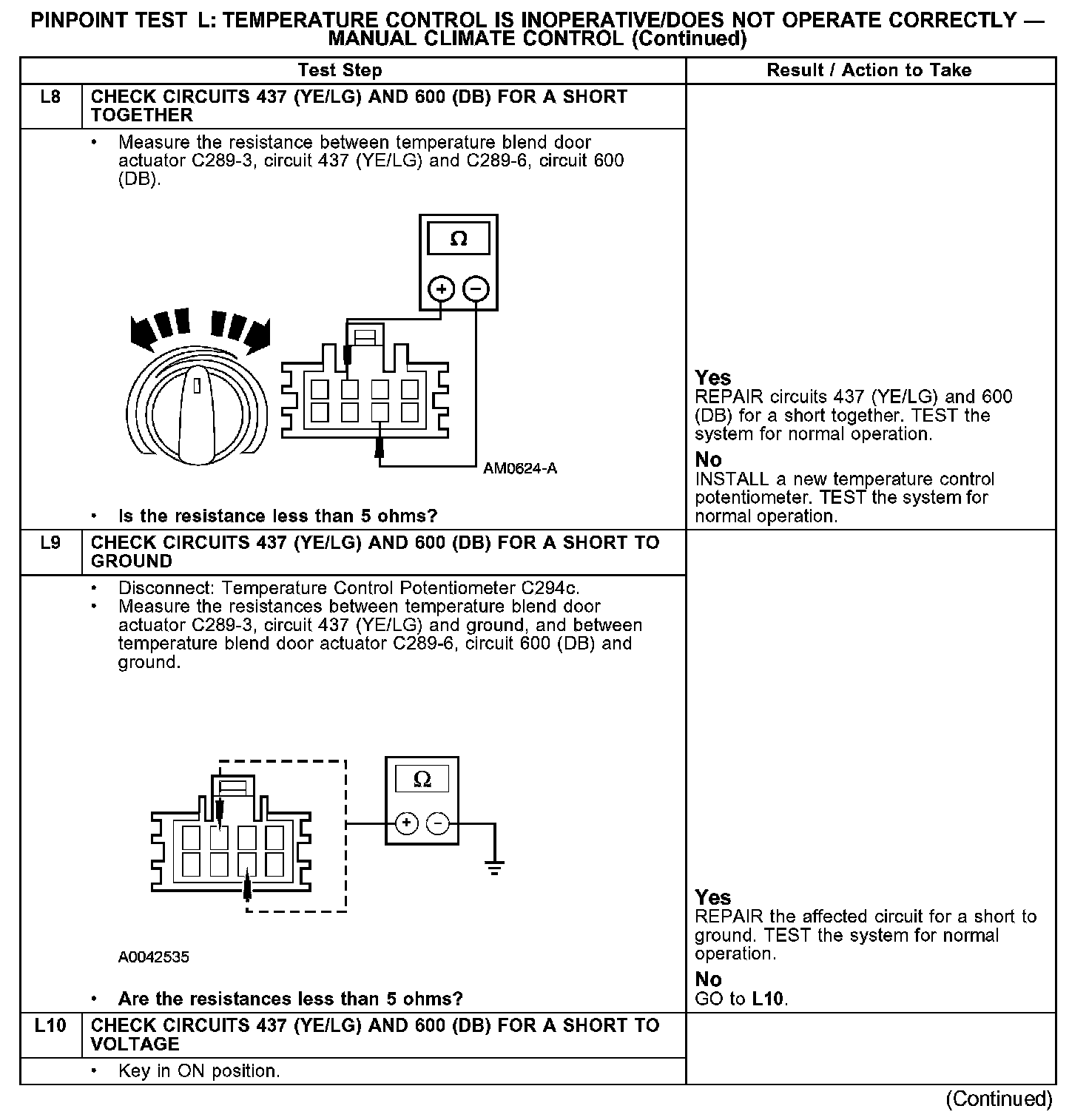

L8-L10:

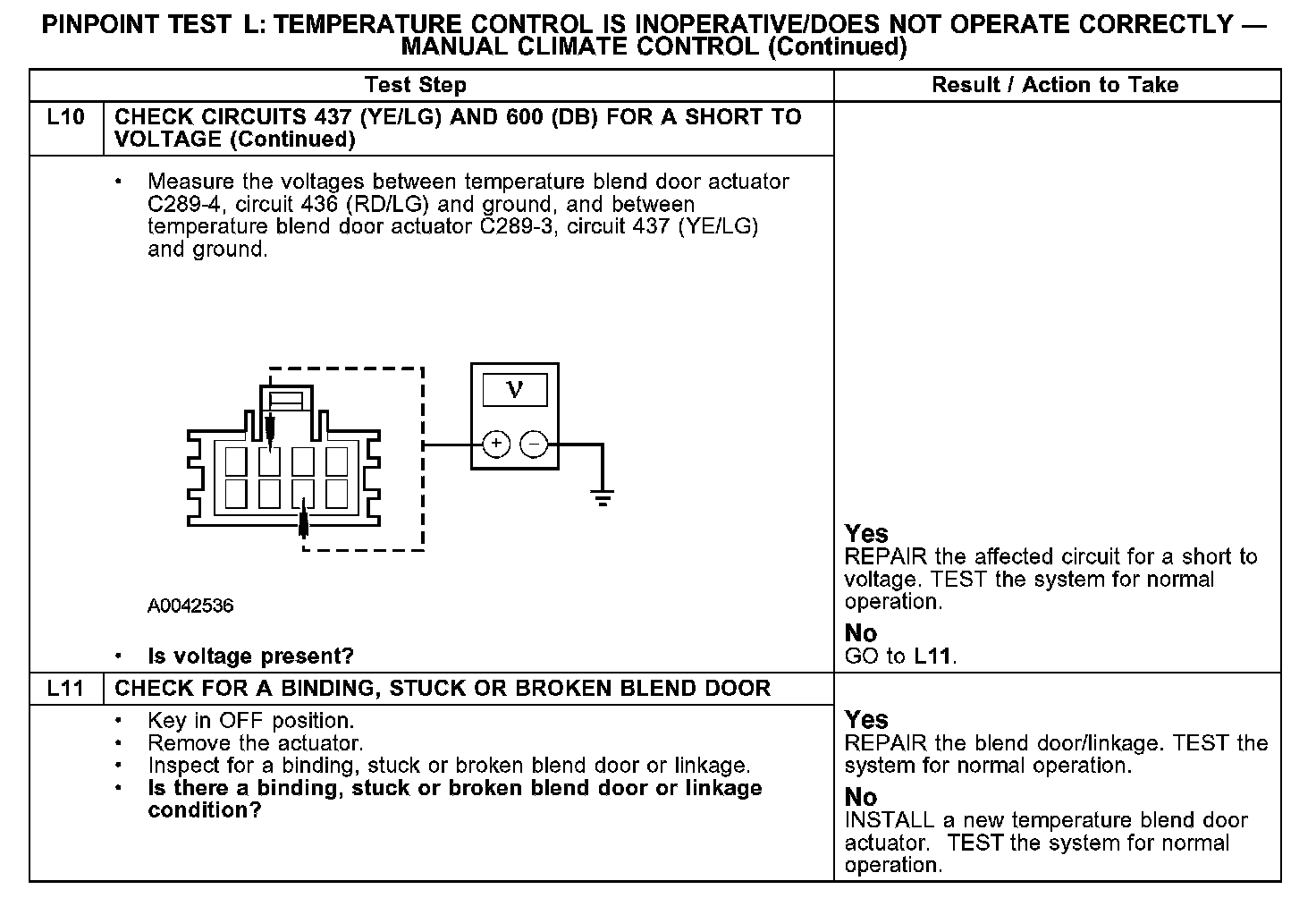

L10-L11:

Normal Operation
Under normal operation, the temperature blend door actuator is supplied voltage on circuit 248 (VT)/1040 (RD/BK) and ground on circuit 57 (BK). As the temperature selection changes it varies the voltage on circuit 437 (YE/LG) to the temperature blend door actuator. The temperature control potentiometer receives reference voltage from the temperature blend door actuator through circuit 436 (RD/LG). Ground for the temperature control potentiometer is supplied from the temperature blend door actuator through circuit 600 (DB).

Possible Causes
- Fuse
- An open, short to voltage, ground or together in circuits 57 (BK), 248 (VT)/1040 (RD/BK), 436 (RD/LG), 437 (YE/LG) or 600 (DB)
- Temperature blend door actuator
- Temperature control potentiometer
- Stuck or bound linkage or door
