Test A: The Door Locks Do Not Operate Correctly From 1 Switch

PINPOINT TEST A: THE DOOR LOCKS DO NOT OPERATE CORRECTLY FROM 1 SWITCH

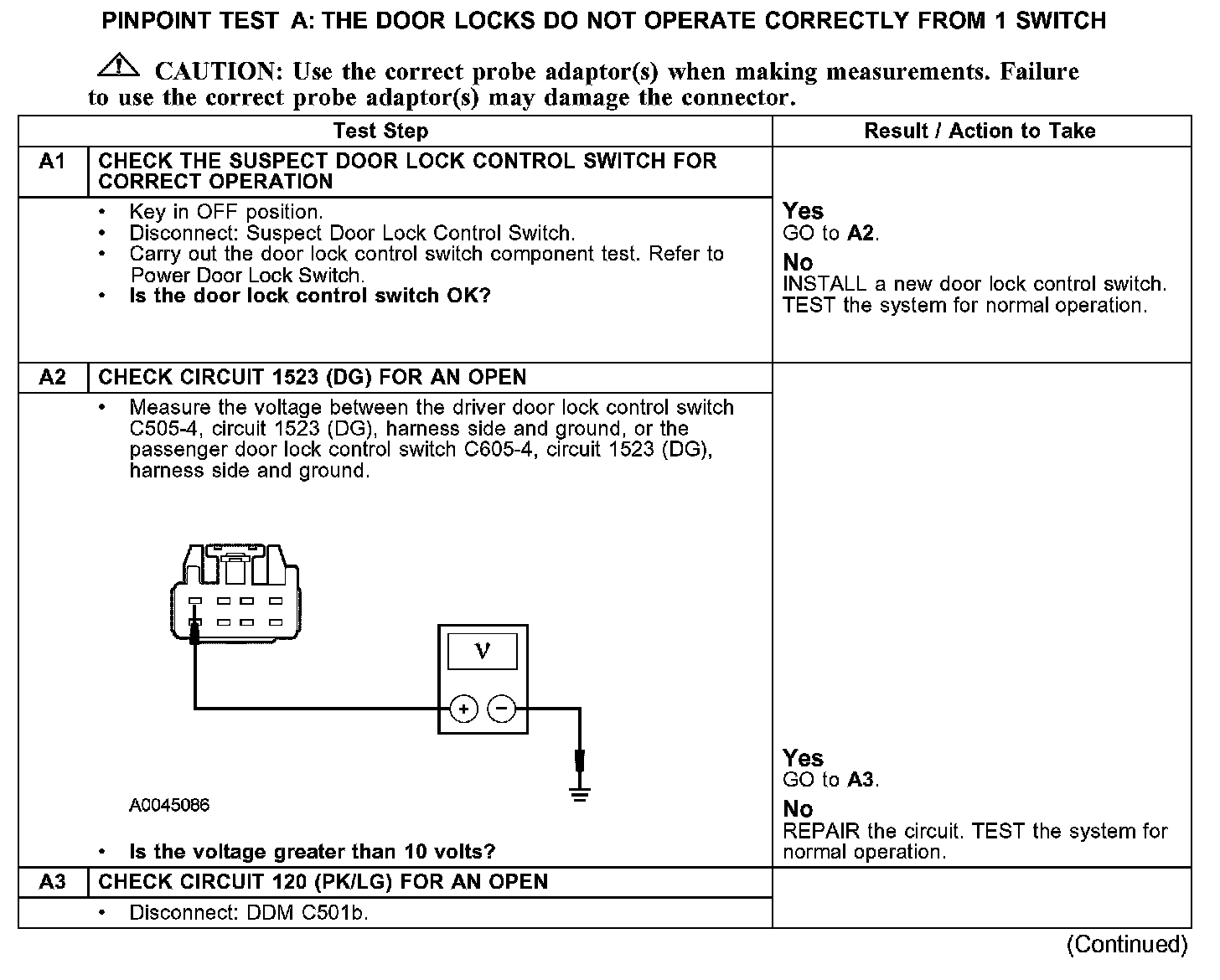

A1-A3:

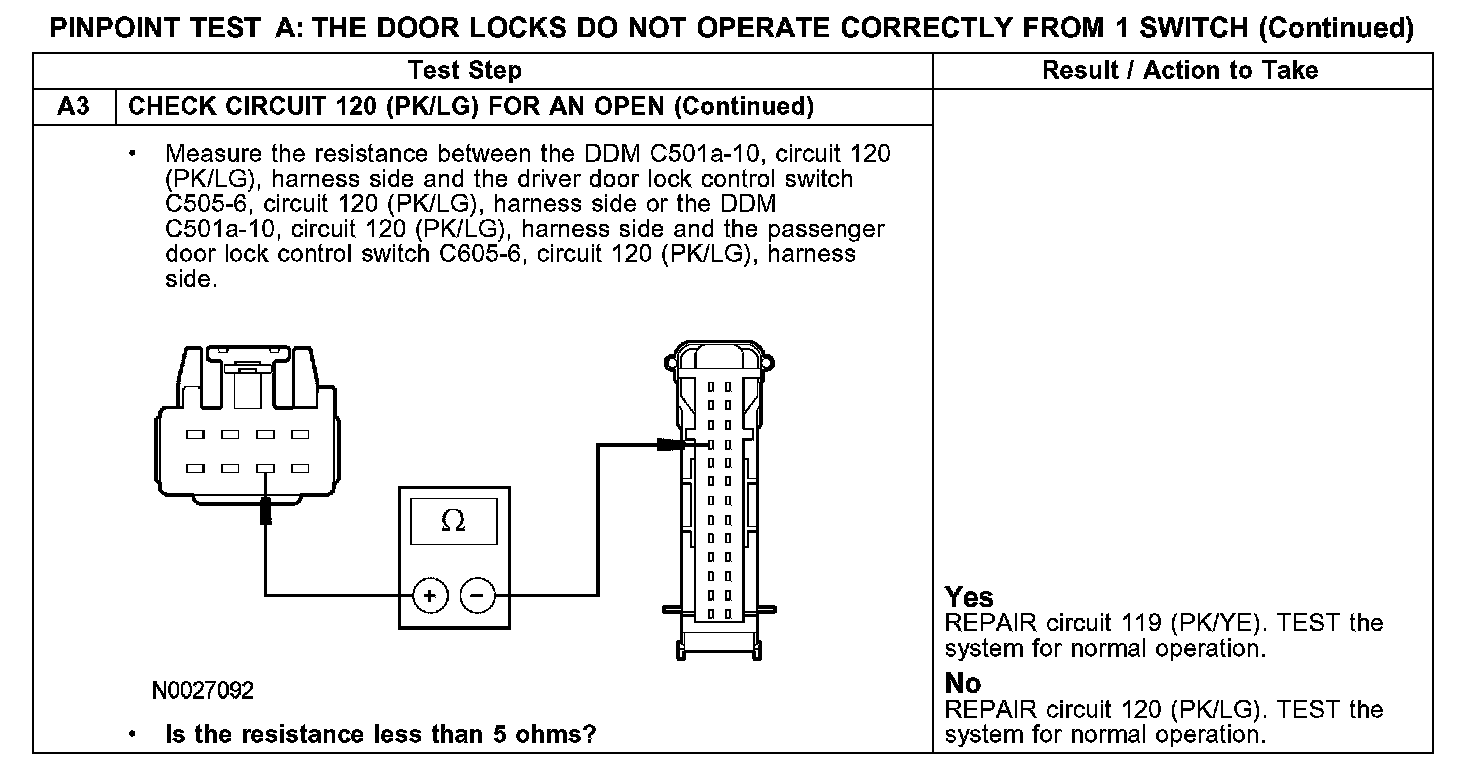

A3 Continued:

Normal Operation
The central junction box (CJB) supplies voltage to the driver side door lock switch and the passenger side door lock switch through circuit 1523 (DG). The driver door module (DDM) receives lock or unlock requests from the door lock switches on circuits 119 (PK/YE) and circuit 120 (PK/LG).

Possible Causes
- circuit 119 (PK/YE) open
- circuit 120 (PK/LG) open
- circuit 1523 (DG) open
- door lock control switch
