Floor Console - Finish Panel

FLOOR CONSOLE - FINISH PANEL

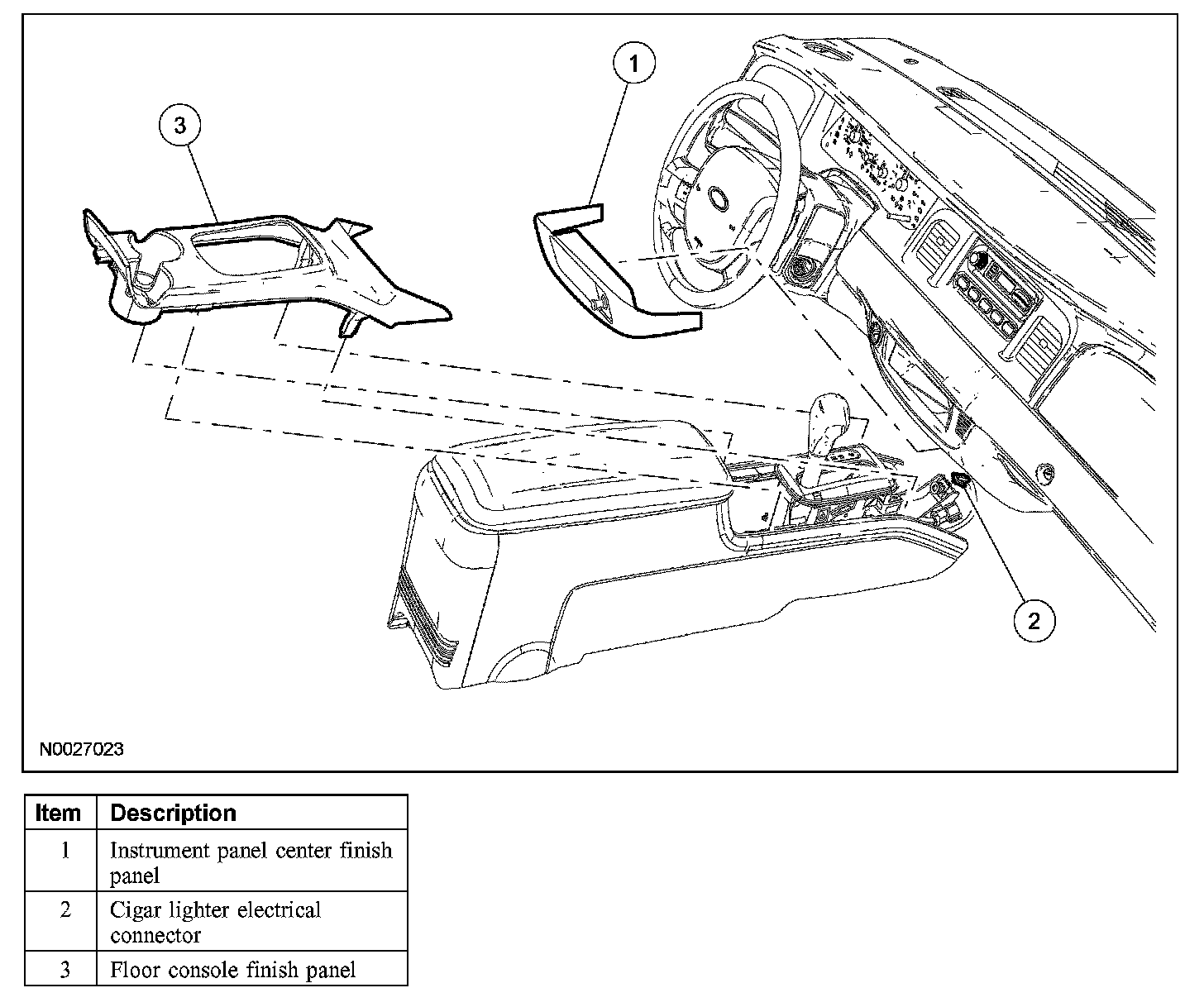

Removal and Installation
1. Apply the parking brake.
2. Place the transmission range selector lever in the 1 position.
3. Remove the instrument panel center finish panel and disconnect the cigar lighter electrical connector.
4. Release and remove the floor console finish panel.
5. To install, reverse the removal procedure.
