Rear Door Panel: Service and Repair

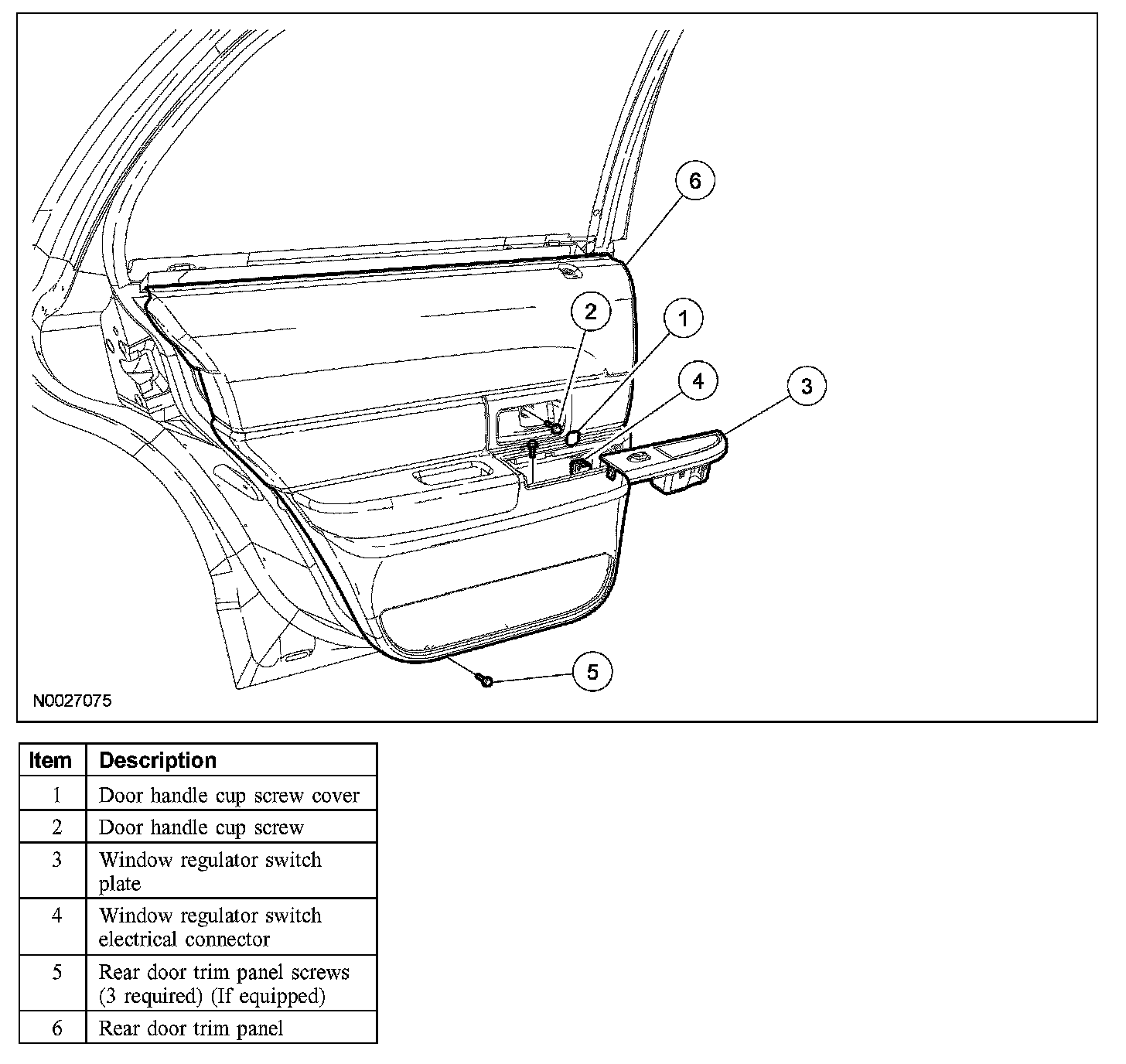

REAR DOOR TRIM PANEL







Removal and Installation
1. Disconnect the battery.
2. Remove the door handle cup screw cover and the screw.
3. If equipped, remove the 2 passenger assist handle covers, 2 screws. and the passenger assist handle.

4. CAUTION: Use care not to damage the trim panel when removing.

Release the window regulator switch plate, disconnect the electrical connector and remove the window regulator switch plate.

5. NOTE: Long wheel base (LWB) vehicles are equipped with 5 screws.

Remove the 3 screws and the rear door trim panel.

6. To install, reverse the removal procedure.
