Wiper Pivot Arm - Rear

WIPER PIVOT ARM - REAR

REMOVAL

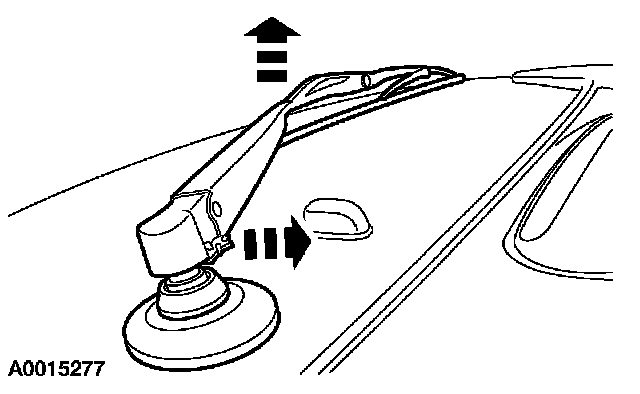

1. CAUTION: To prevent glass or paint damage, do not use metal or sharp tools to remove the wiper pivot arm.

Raise the wiper pivot arm off the rear glass, and pull the latch lever out away from the wiper arm.

2. Lower the wiper pivot arm towards the glass to relieve pivot arm spring tension.
3. Remove the wiper pivot arm.

INSTALLATION
1. To install, reverse the removal procedure.
