Rear window washer reservoir

REAR WINDOW WASHER RESERVOIR

REMOVAL
1. Remove RH quarter trim panel.

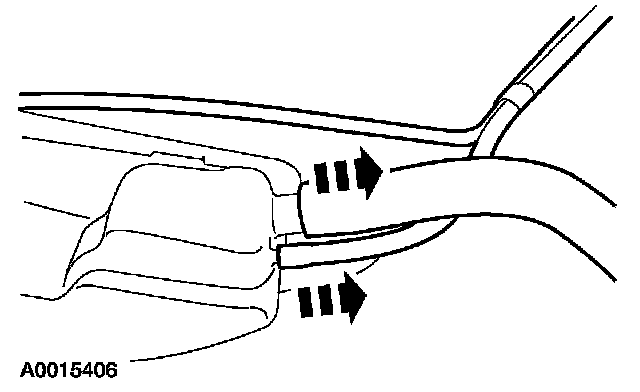

2. Remove the filler hose and the vent hose from the rear window washer reservoir.







3. Depress the two locking tangs on the rear washer filler spout.







4. Pull the rear washer fill spout and the fill hose out of the body and remove them from the vehicle.







5. WARNING: Windshield washer solution contains methanol which is poisonous. Observe all cautions and warnings indicated on label of washer solution container.

NOTE: The windshield washer reservoir will drain when the washer hose is disconnected.

Disconnect the electrical connector and washer hose from the washer pump.

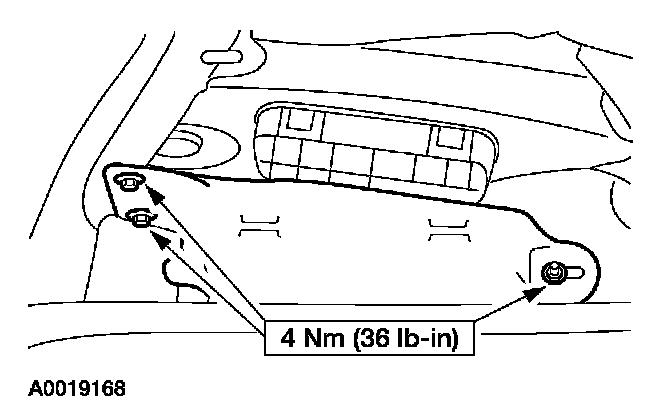

6. Remove the two bolts and one nut that retain the rear window washer reservoir and remove the reservoir from the vehicle.

INSTALLATION
1. To install, reverse the removal procedure.
