Home >> Mercury >> 2005 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Windows and Glass >> Windows >> Testing and Inspection >> Pinpoint Tests >> Test A: A Single Power Window Is Inoperative - Driver Front Power Window Is Inoperative/Does Not Operate Correctly

Test A: A Single Power Window Is Inoperative - Driver Front Power Window Is Inoperative/Does Not Operate Correctly

PINPOINT TEST A: A SINGLE POWER WINDOW IS INOPERATIVE - DRIVER FRONT POWER WINDOW IS INOPERATIVE/DOES NOT OPERATE CORRECTLY

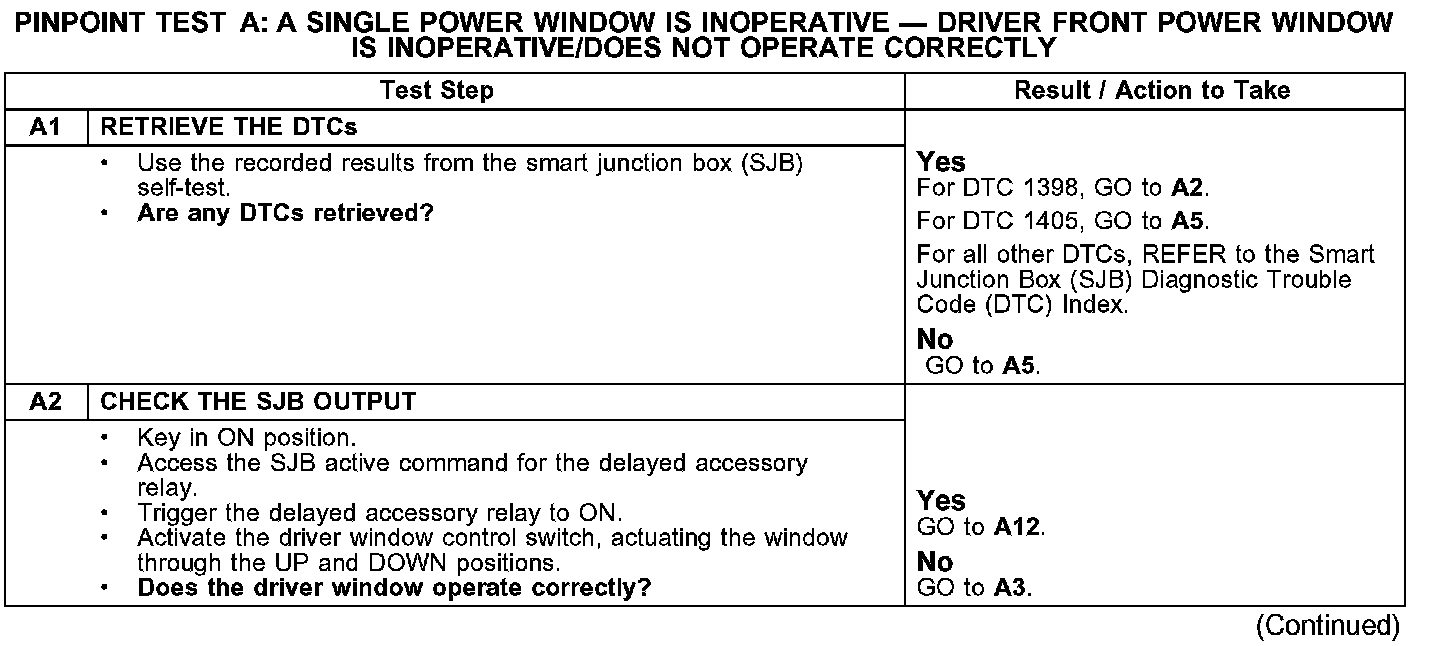

A1-A2:






A3-A6:

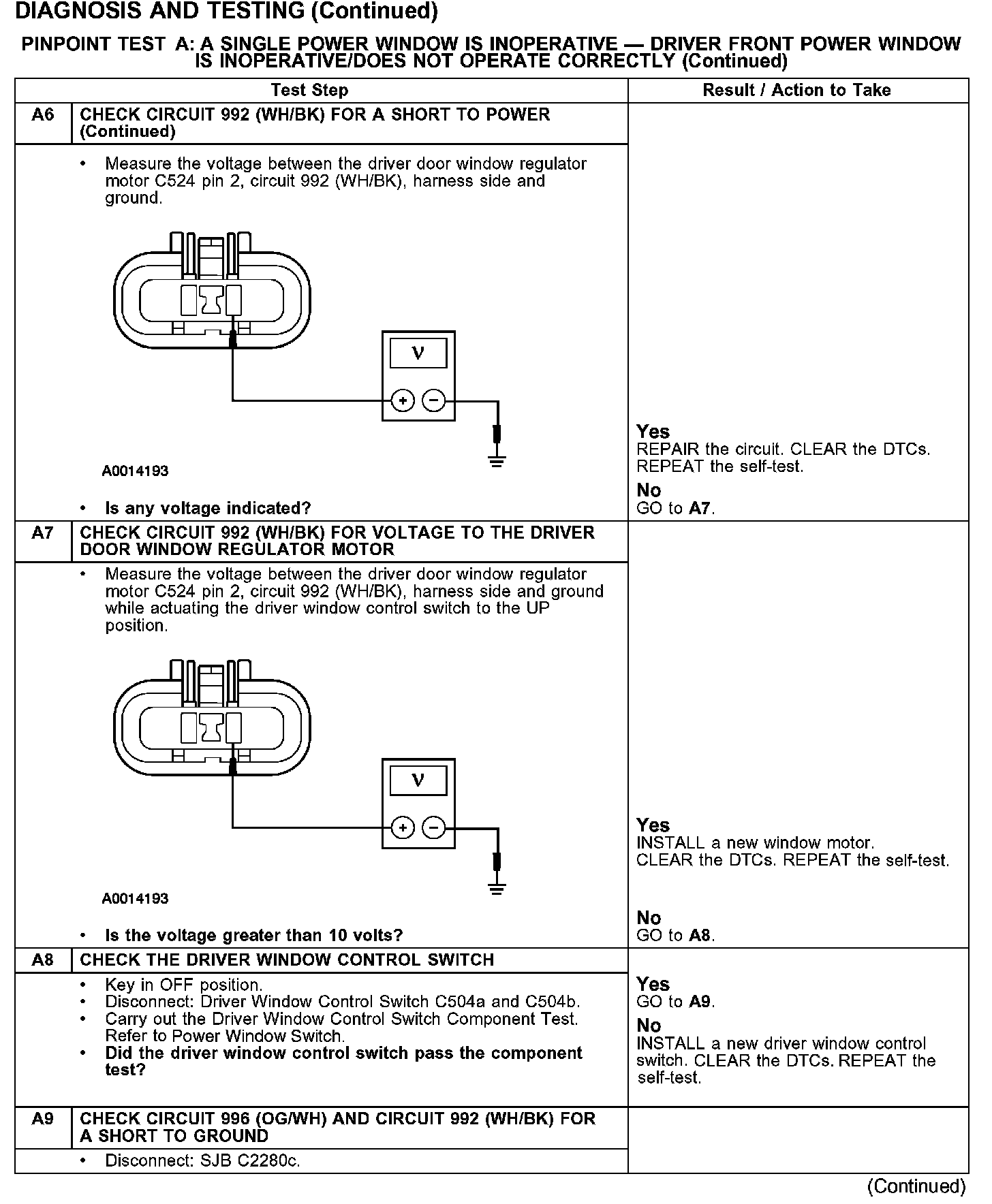

A6-A9:

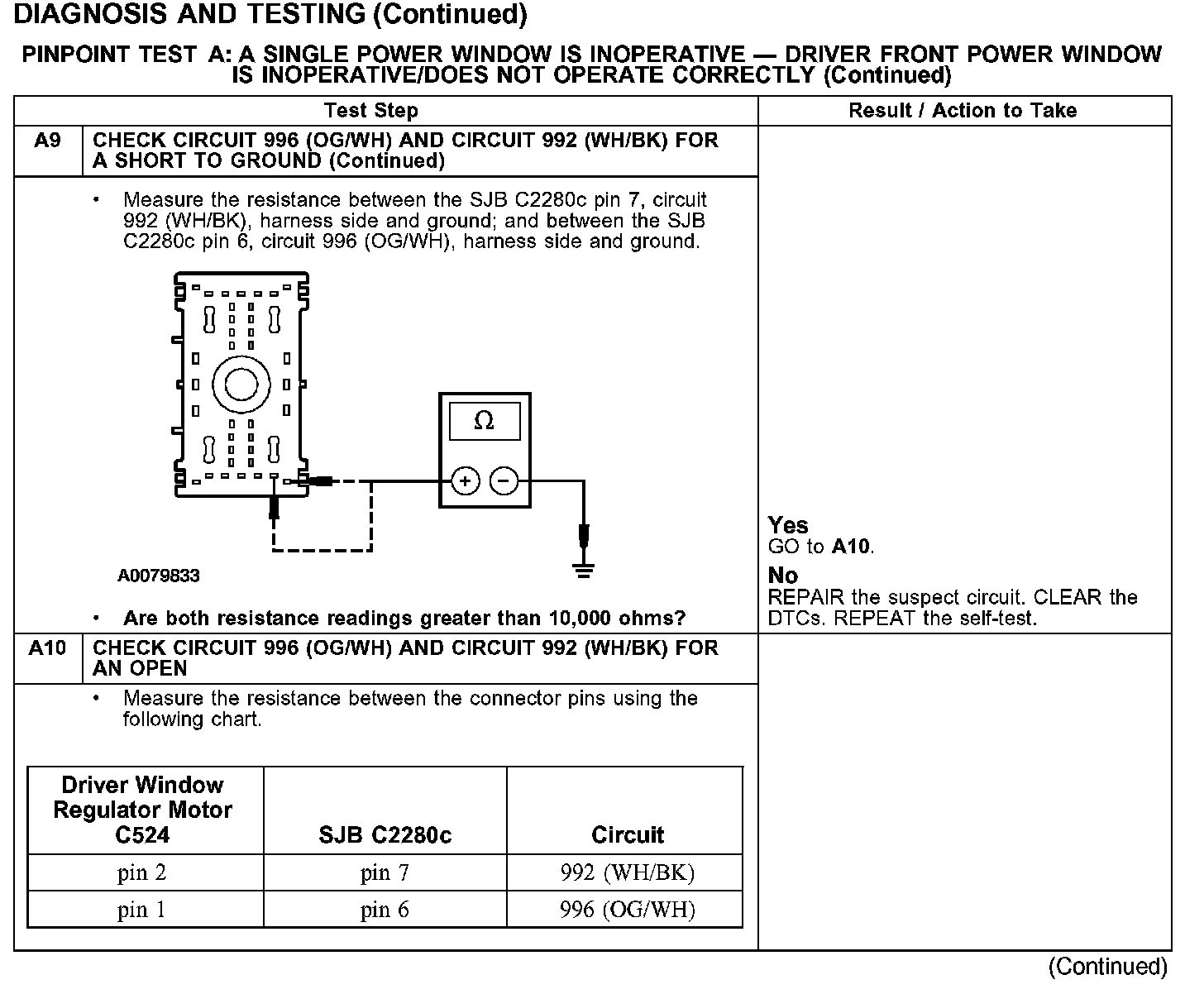

A9-A10:

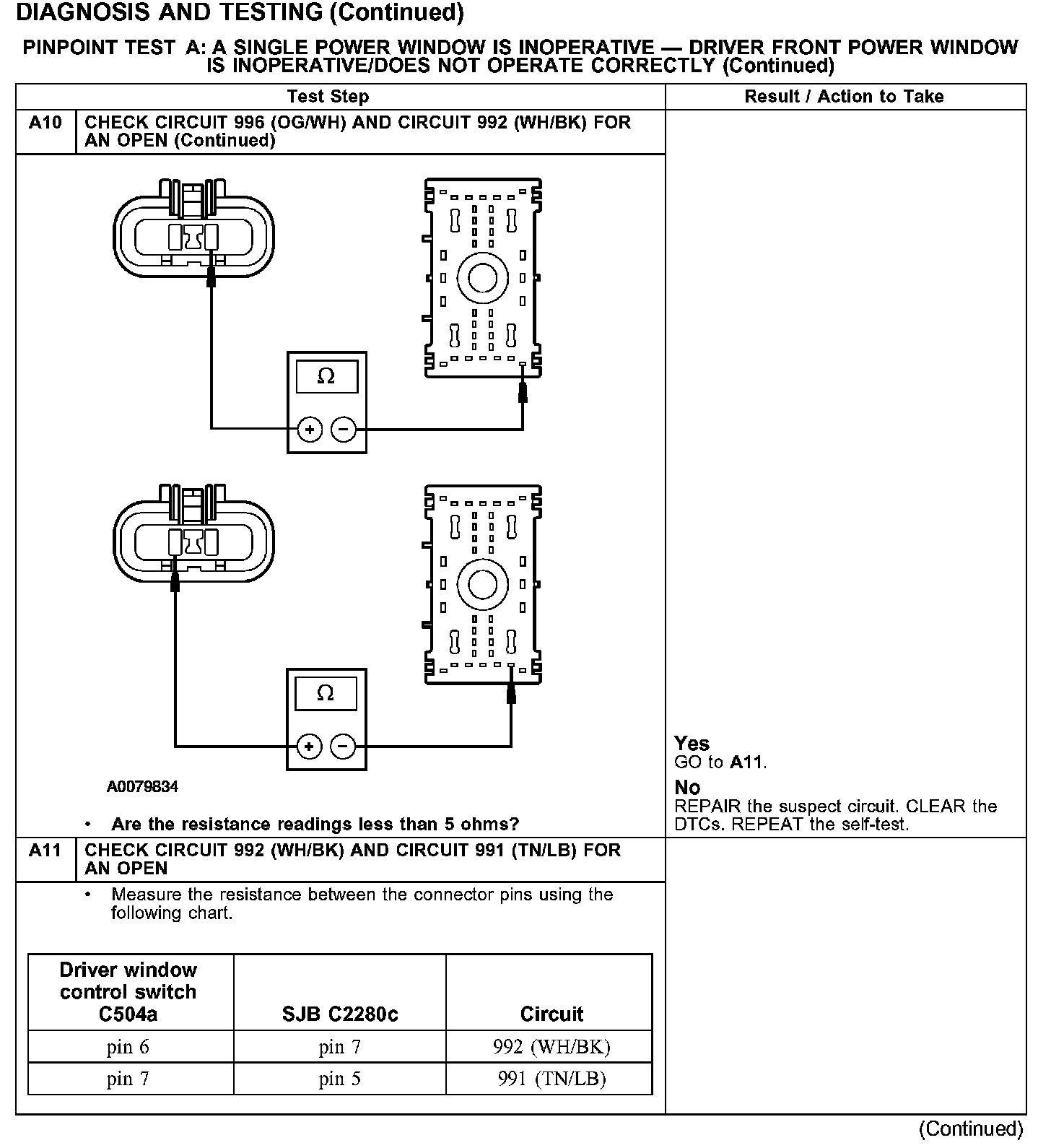

A10-A11:






A11-A12:
