Transmission Mount: Service and Repair

Transaxle Support Insulator

Removal
1. With the vehicle in NEUTRAL position it on a hoist.
2. Remove the LH wheel and tire.





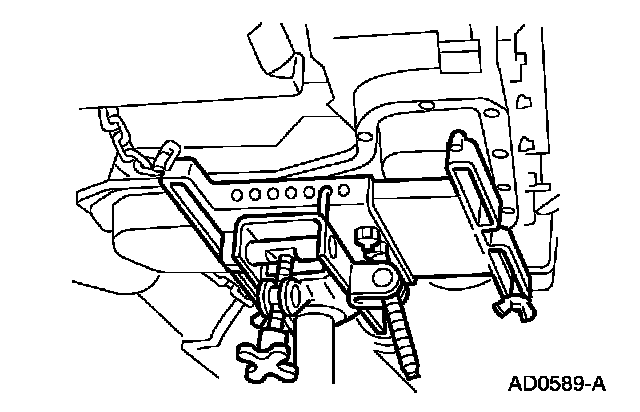

3. Place the high-lift transmission jack under the transaxle.

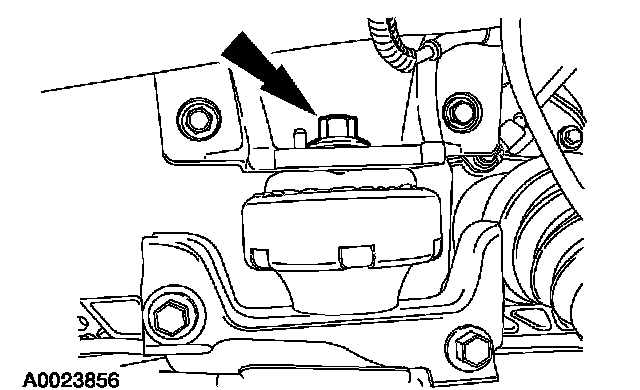

4. Remove the engine and transaxle upper support insulator nut.

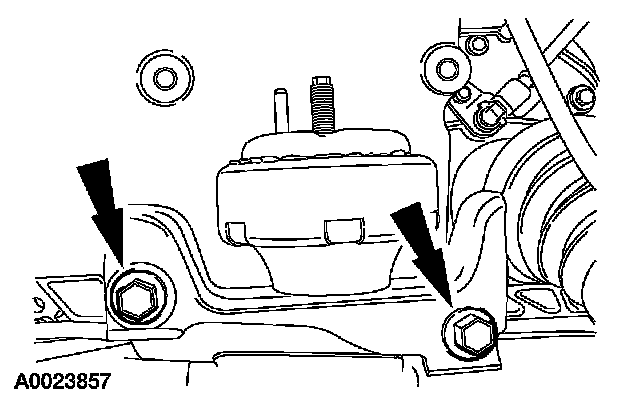

5. Remove the engine and transaxle upper support bracket bolts and bracket.

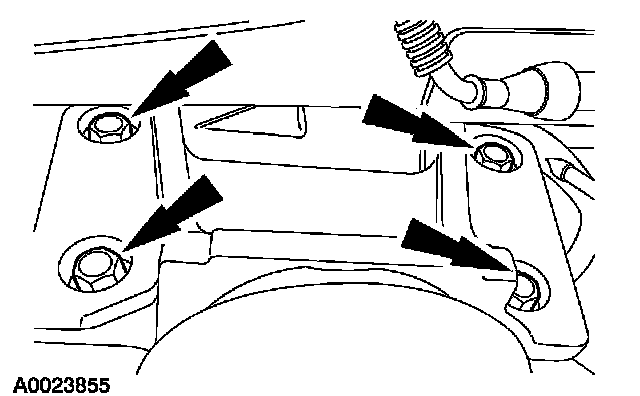

6. Remove the engine and transaxle upper support insulator bolts and insulator.

Installation

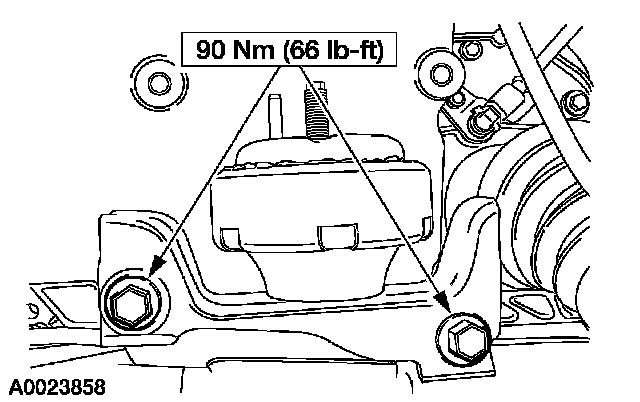

1. Install the engine and transaxle support insulator and bolts.

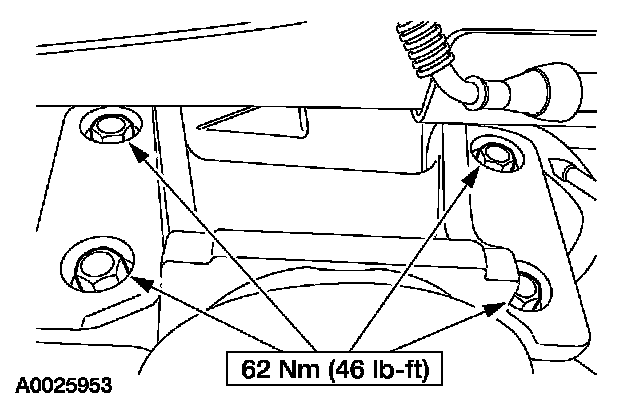

2. Install the engine and transaxle upper support bracket bolts and bracket.

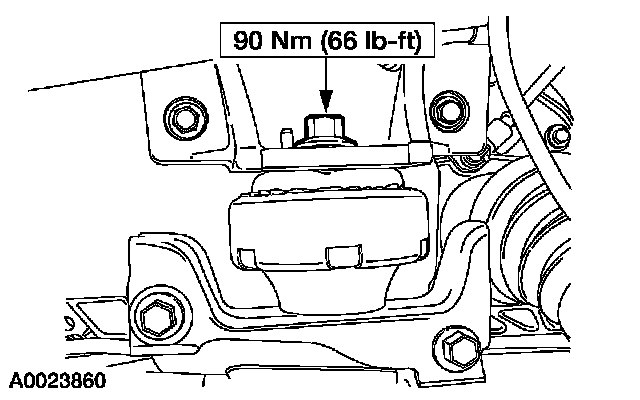

3. Install the engine and transaxle upper support insulator nut.
4. Remove the high-lift transmission jack.
5. Install the LH wheel and tire.
6. Lower the vehicle.
