Test A: The Shift Interlock System Does Not Release/Lock Correctly
Test A: The Shift Interlock System Does Not Release/Lock Correctly
PINPOINT TEST A: THE SHIFT INTERLOCK SYSTEM DOES NOT RELEASE/LOCK CORRECTLY

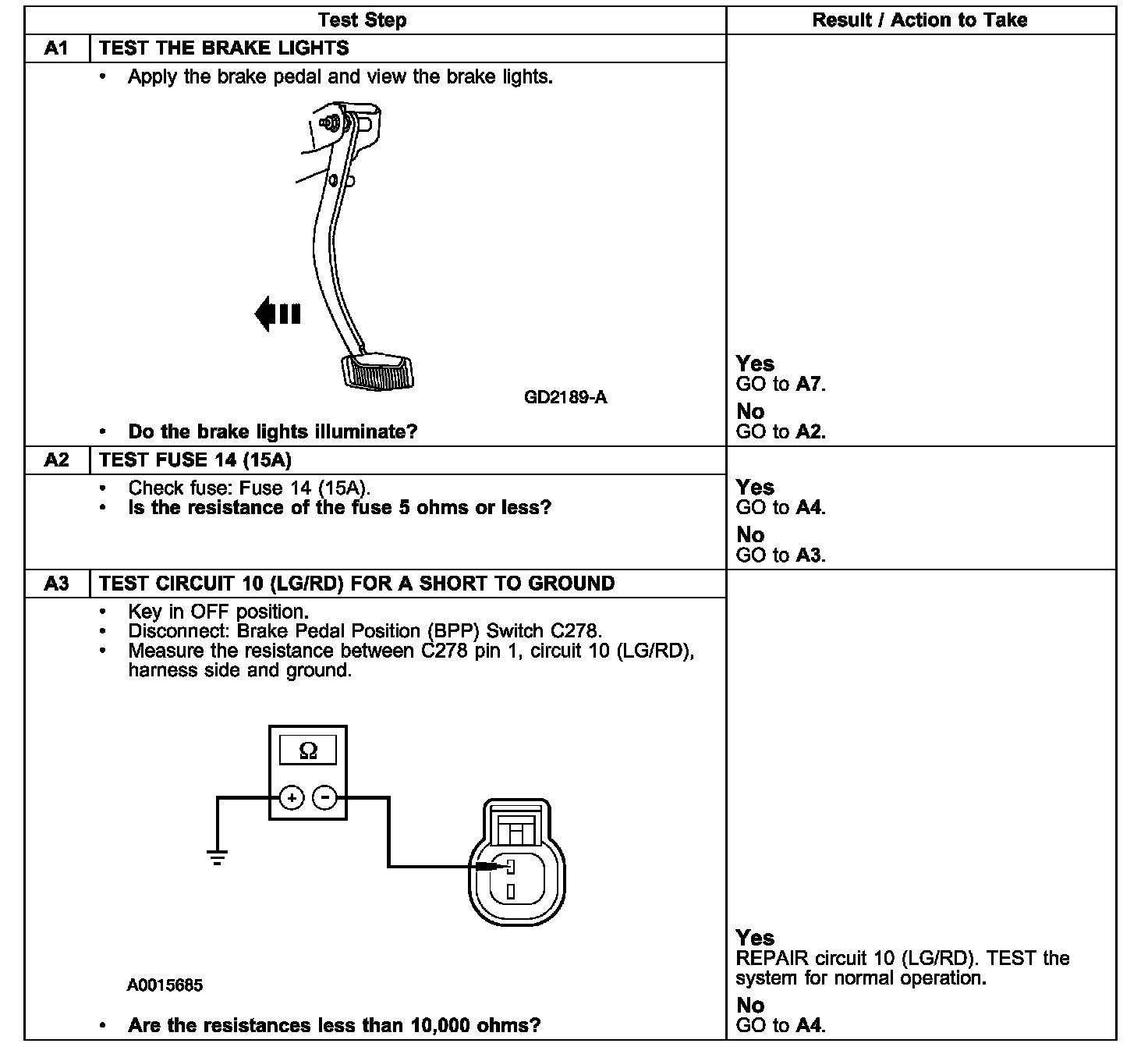

A1-A3:

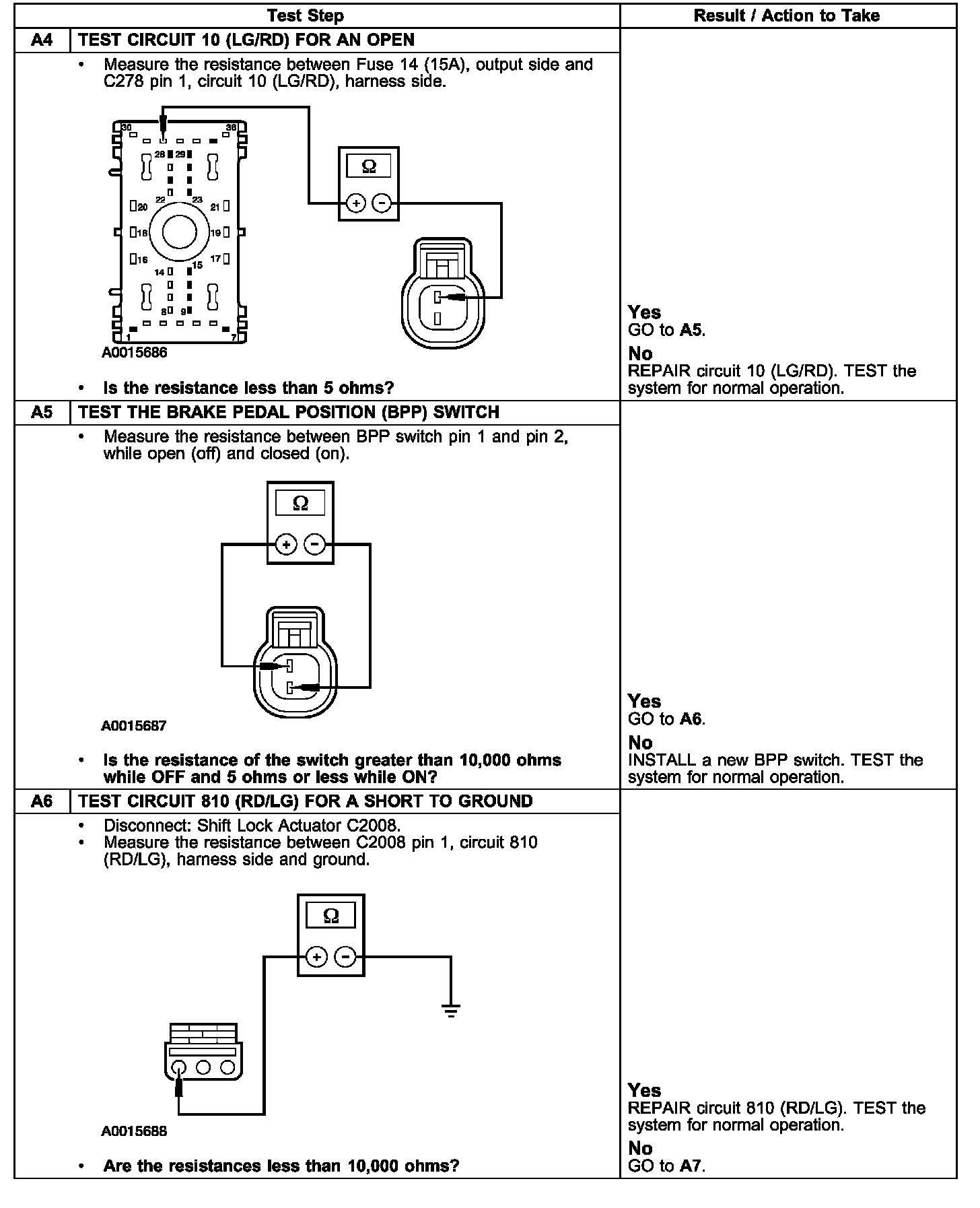

A4-A6:

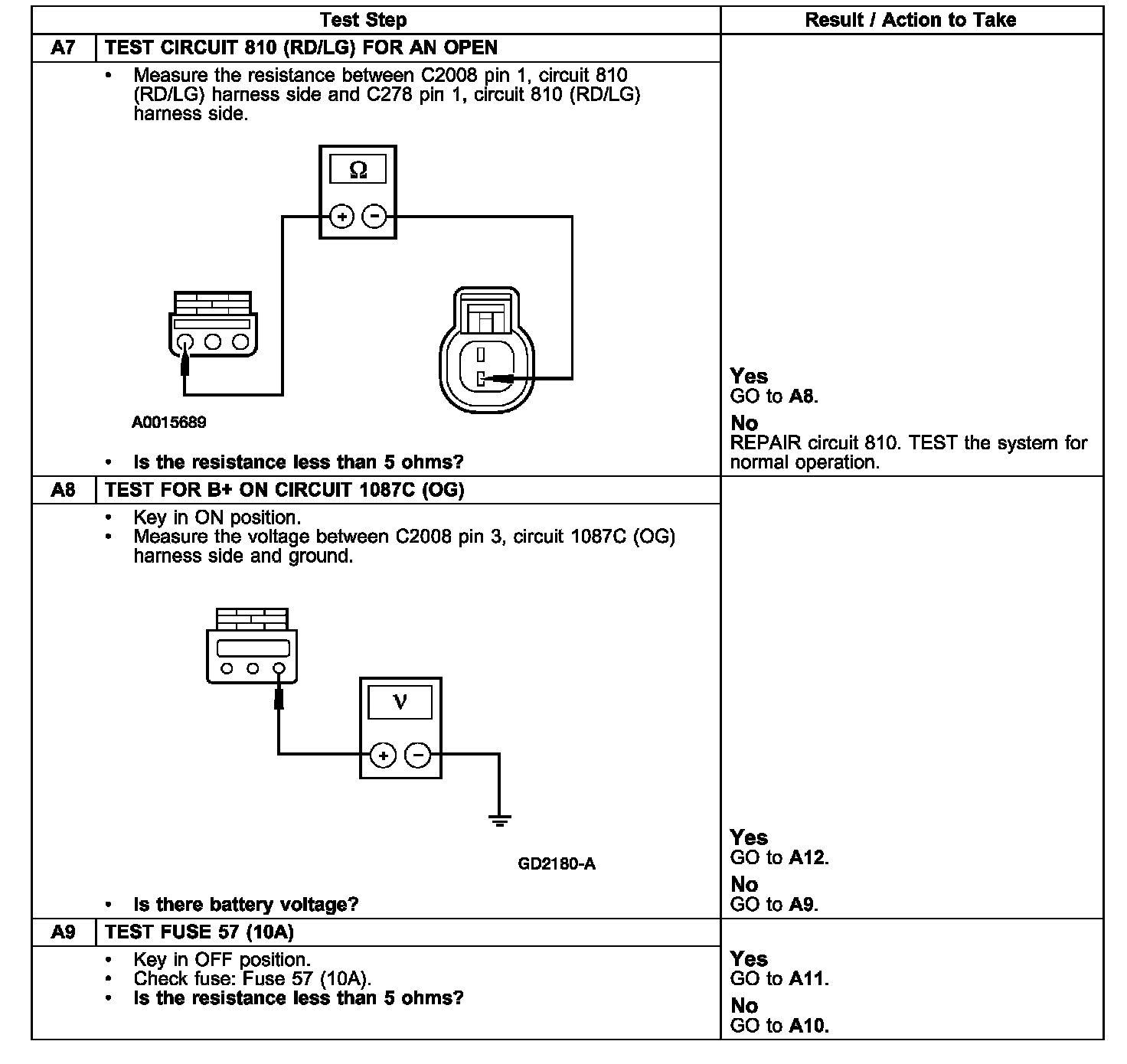

A7-A9:

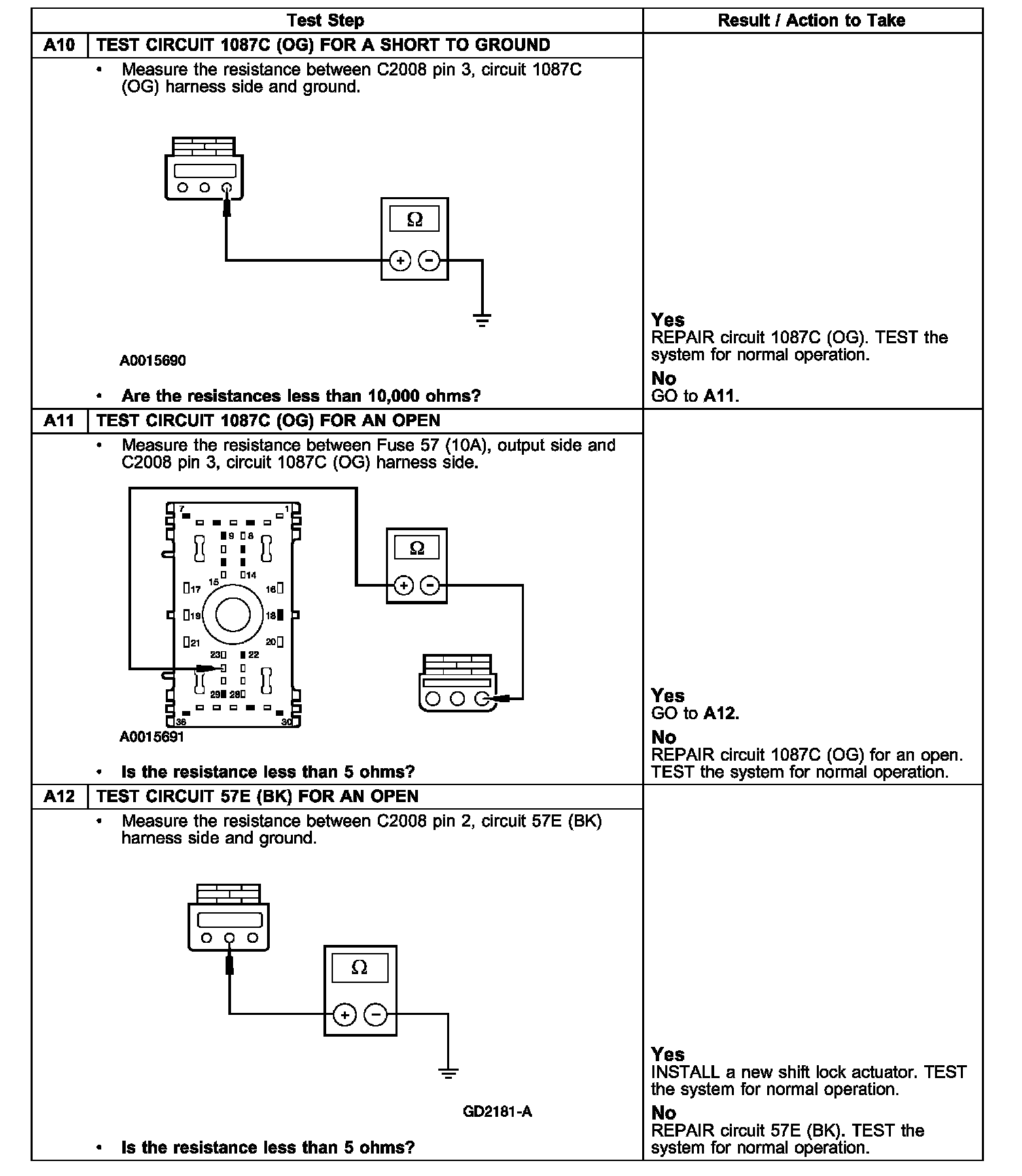

A10-A12:
