Pump Shaft

Pump Shaft

1. NOTE: Inspect the pump drive shaft in the area that the bearings ride. If worn, install a new shaft and main control.





Remove the Teflon (R) seals and inspect the shaft.

2. NOTE: Make sure that the seals are installed correctly.

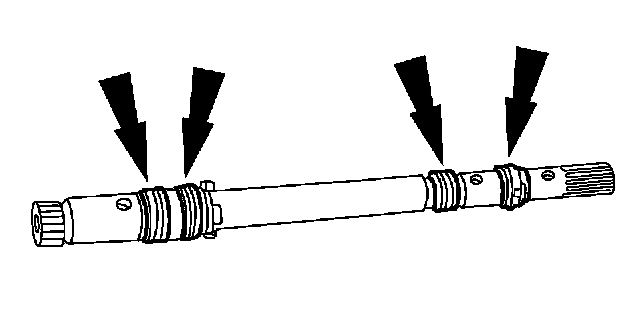

Install 4 new seals on the pump shaft.
