Driven Sprocket Support

Driven Sprocket Support

Disassembly

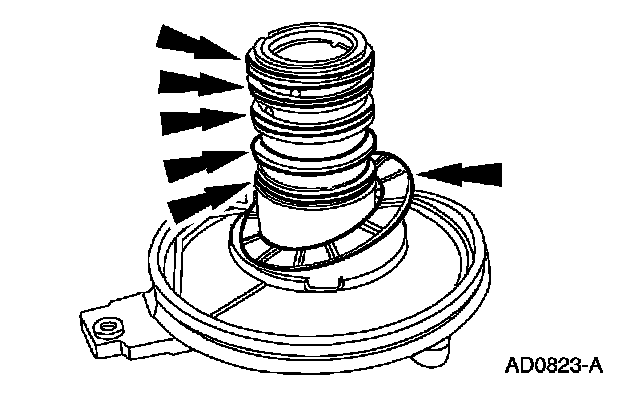

1. Remove the Teflon (R) rings and the No. 5 thrust washer.





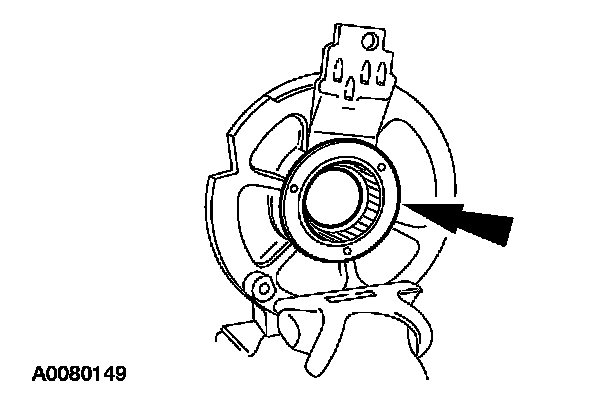

2. Inspect the driven sprocket bearing for damage. If damage is indicated, install a new driven sprocket.





Assembly

1. CAUTION: The seal rings must be installed correctly. Transmission failure could result.

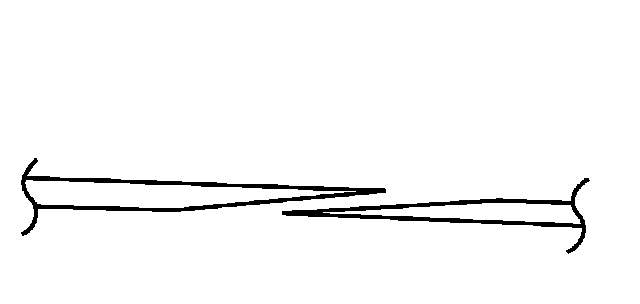

NOTE: Make sure that the seals are mated correctly.

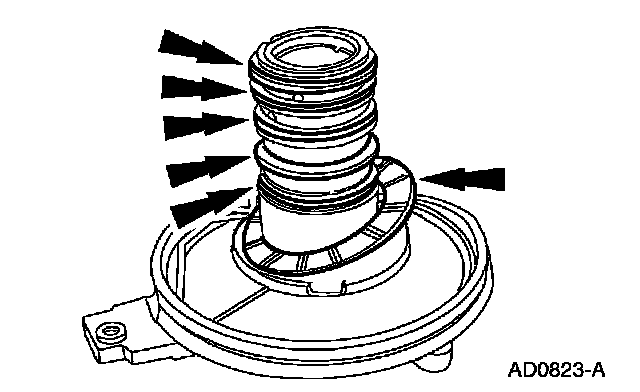

Install new Teflon (R) seals and the No. 5 thrust washer.
