Home >> Mercury >> 2005 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Testing and Inspection >> Pinpoint Tests >> Test A: Steering System Noise

Test A: Steering System Noise

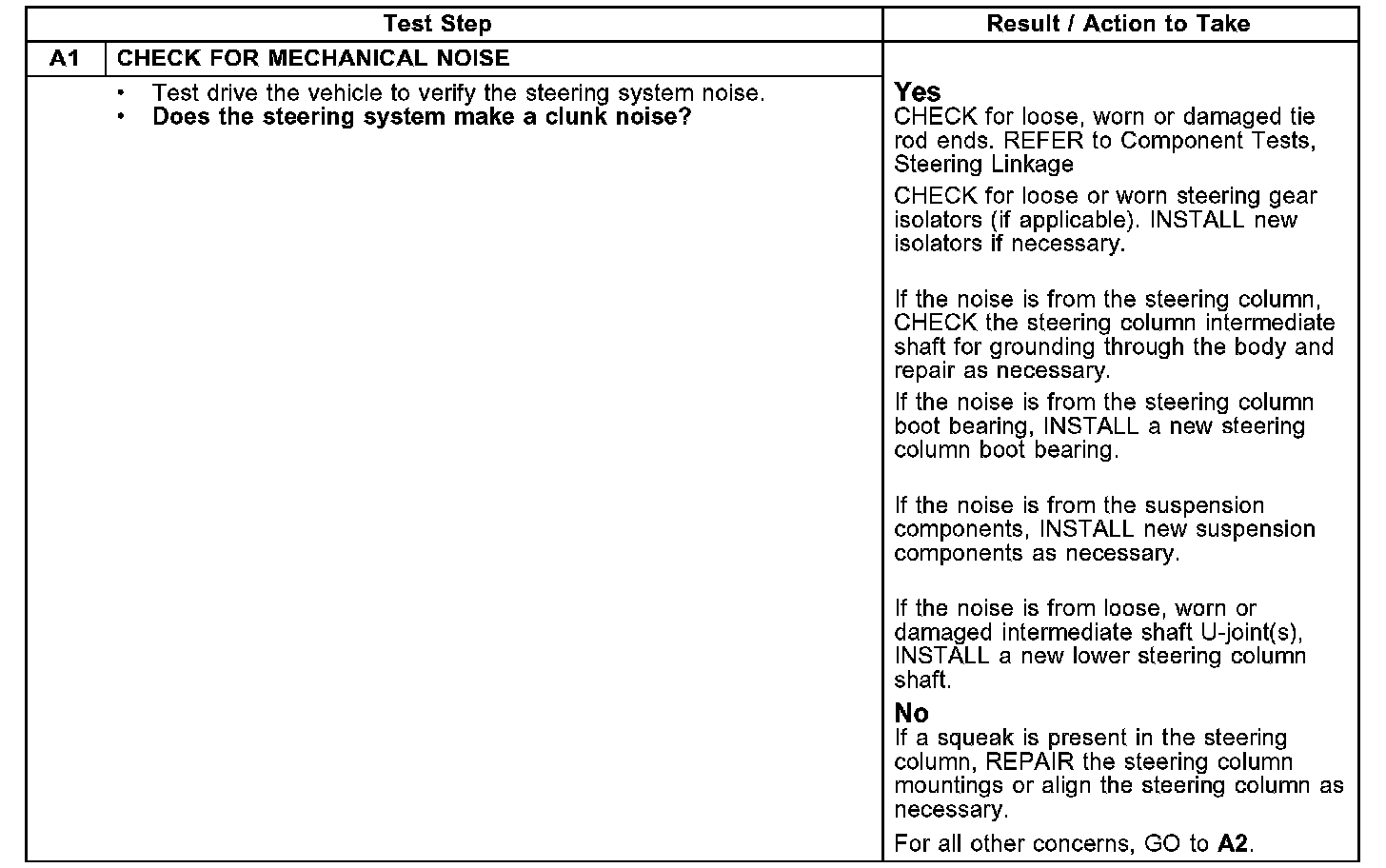

Test A1:

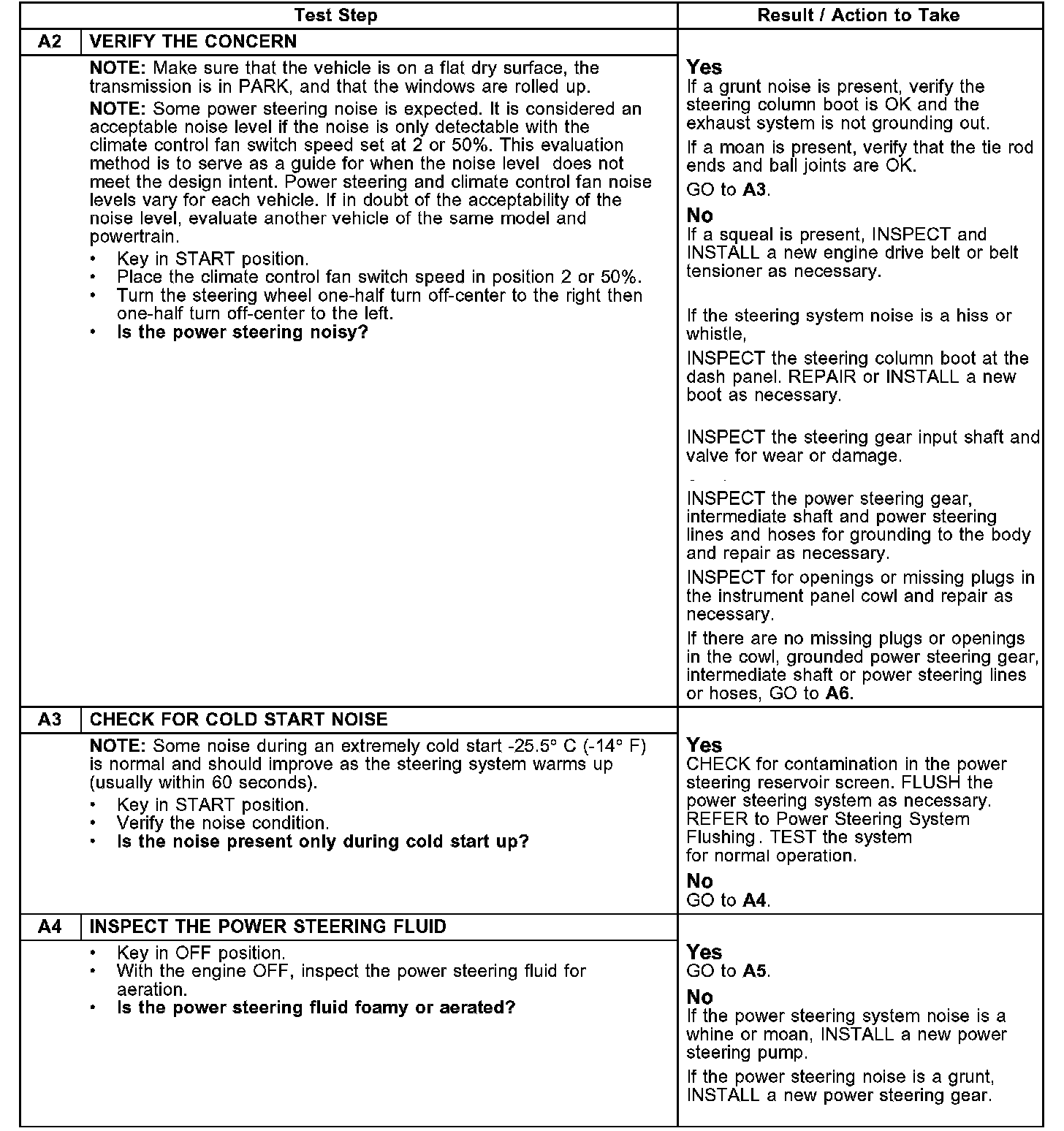

Test A2-A4:

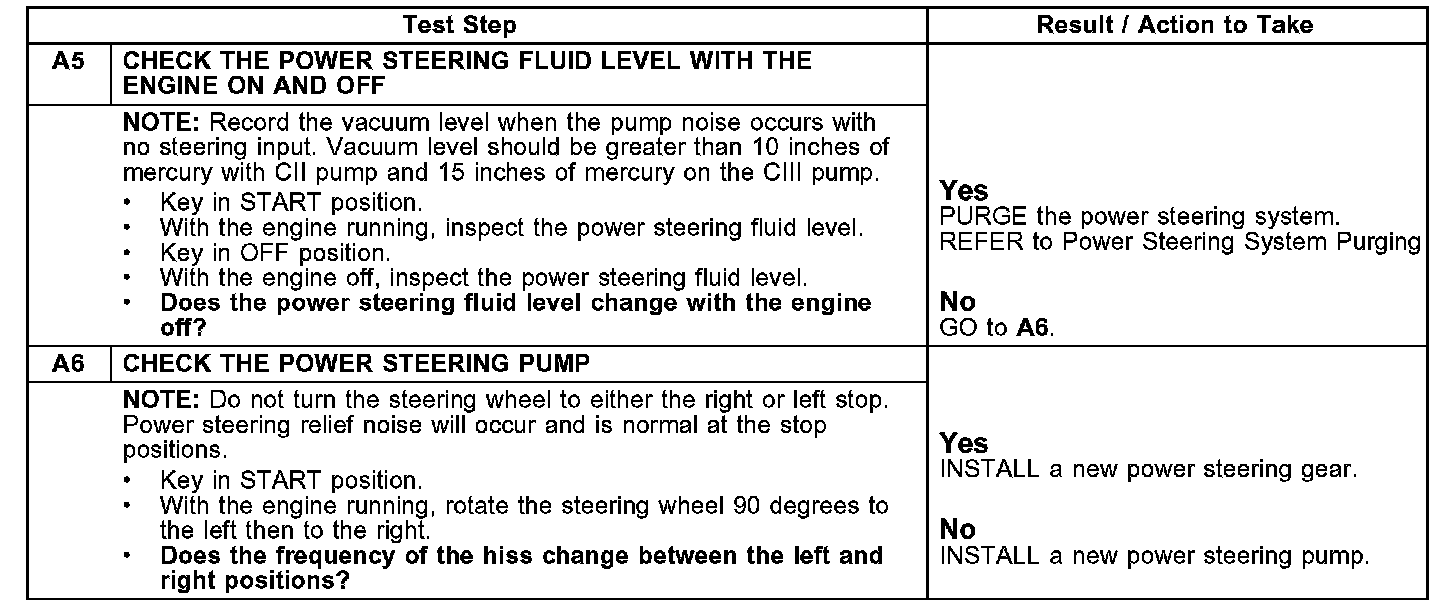

Test A5-A6:
