Ignition Switch - Late Build

Ignition Switch - Late Build

Removal and Installation
1. Depower the supplemental restraint system (SRS).

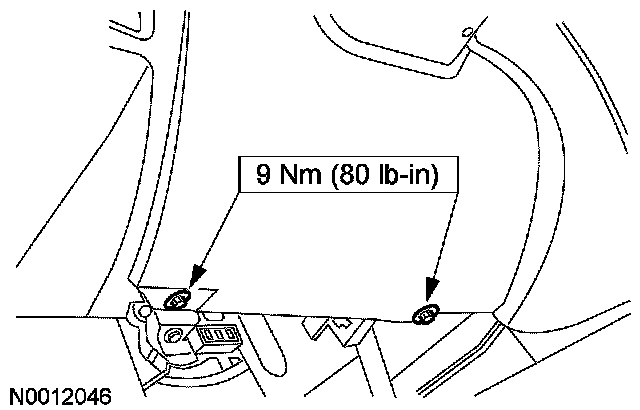

2. Remove the 2 lower instrument panel steering column cover screws and the cover.

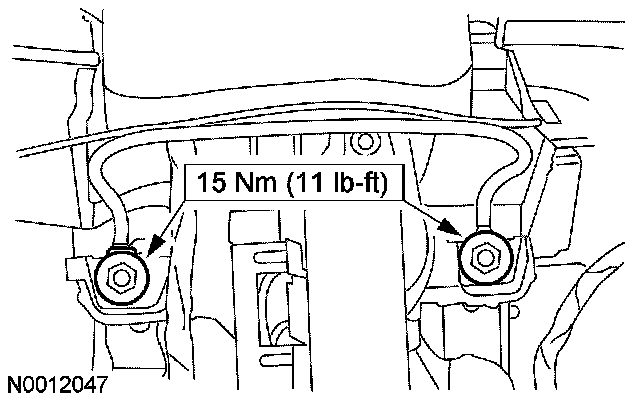

3. Remove the 2 instrument panel steering column opening cover reinforcement bolts and the reinforcement.

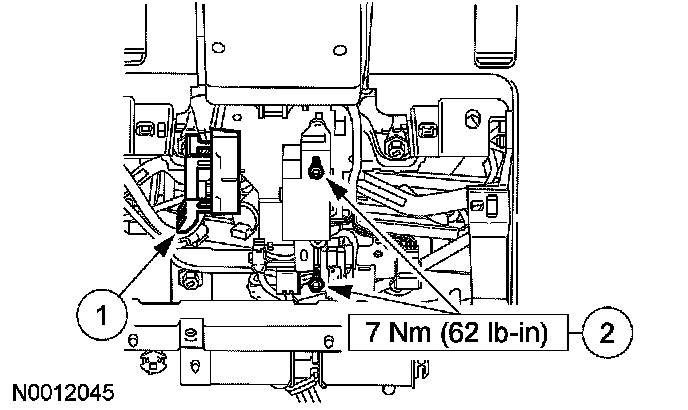

4. Remove the ignition switch.
1 Disconnect the electrical connector.
2 Remove the 2 screws.
5. To install, reverse the removal procedure.
^ Repower the supplemental restraint system (SRS).
