Power Steering Pump Pulley - 3.0L (2V) CII Pump

Power Steering Pump Pulley-3.0L (2V) CII Pump

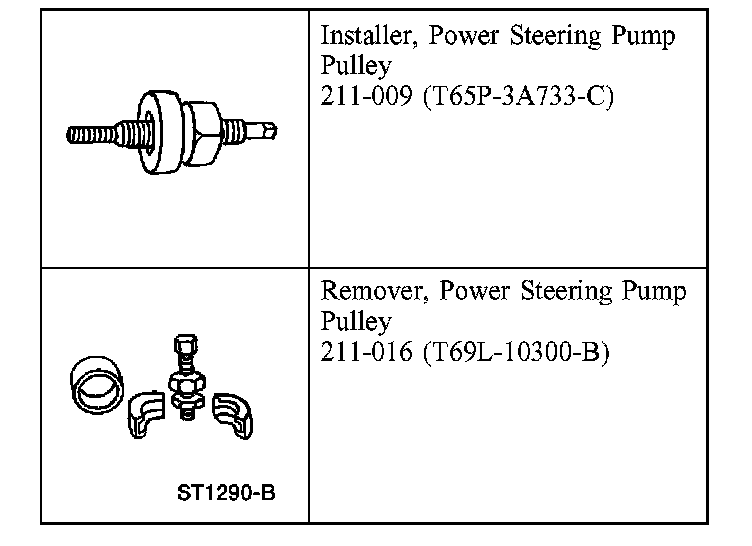

Special Tool(s)

Removal and Installation
1. Rotate the tensioner clockwise and remove the belt from the power steering pump pulley.

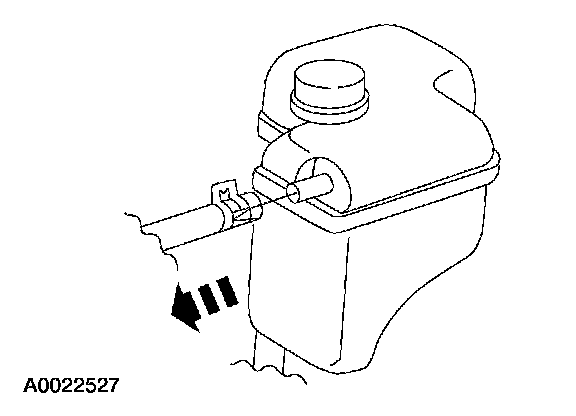

2. Disconnect the degas bottle coolant return hose.
- Block the hose to prevent coolant loss.





3. Using the special tool, remove the power steering pump pulley.
4. To install, reverse the removal procedure.





5. NOTE: The pulley must be installed within 0.25 mm (0.010 inch) flush with the power steering pump shaft.

Using the special tool, install the power steering pump pulley.
