Steering System
Steering System
Steering
System

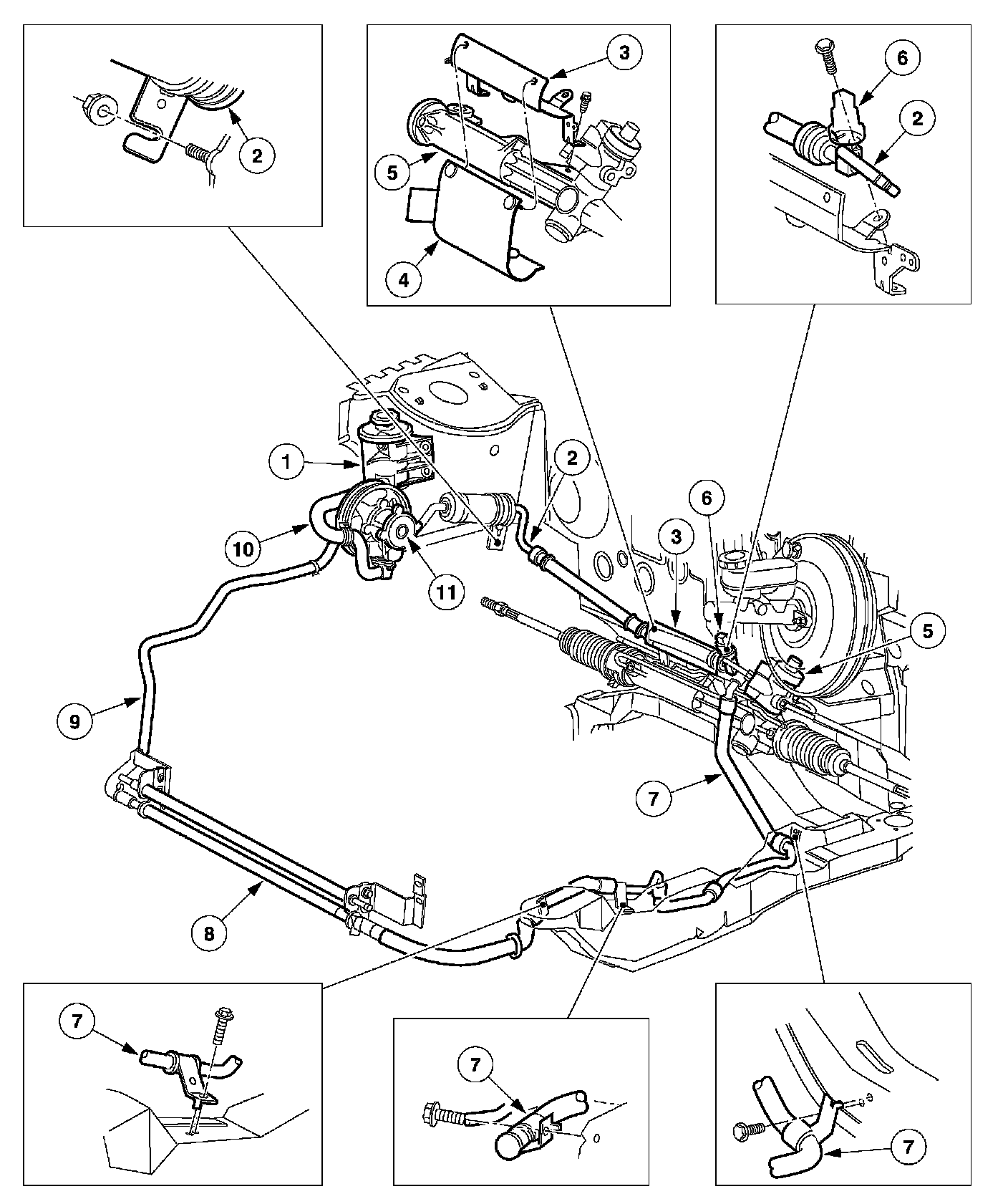

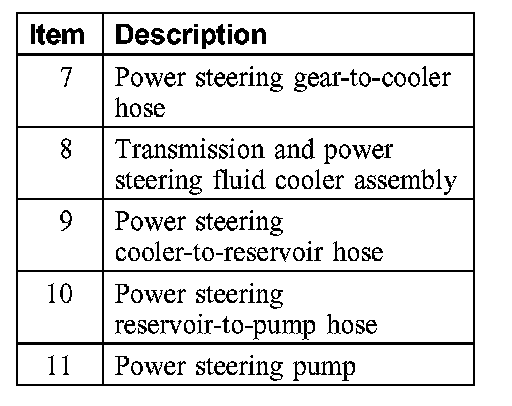

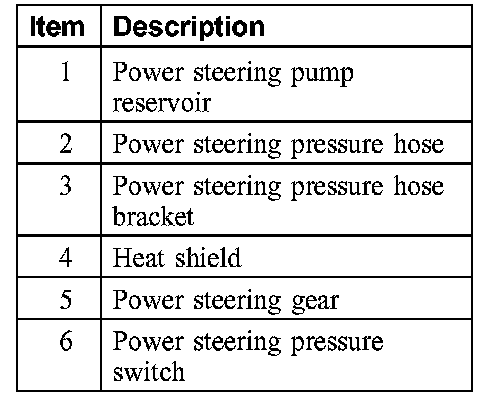

System View - 3.0L, 2V Engine (CII Pump)

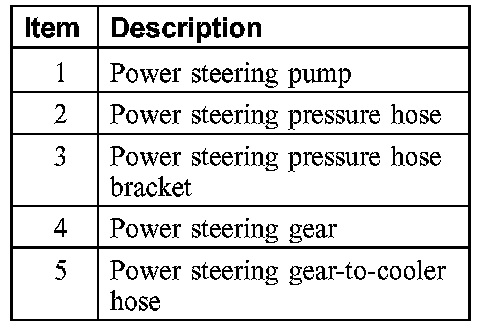

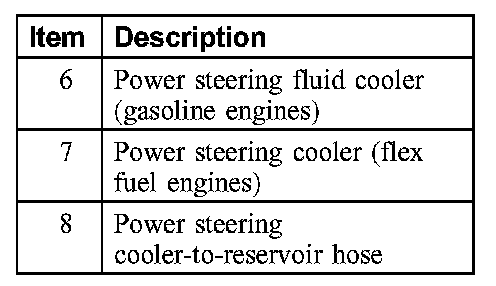

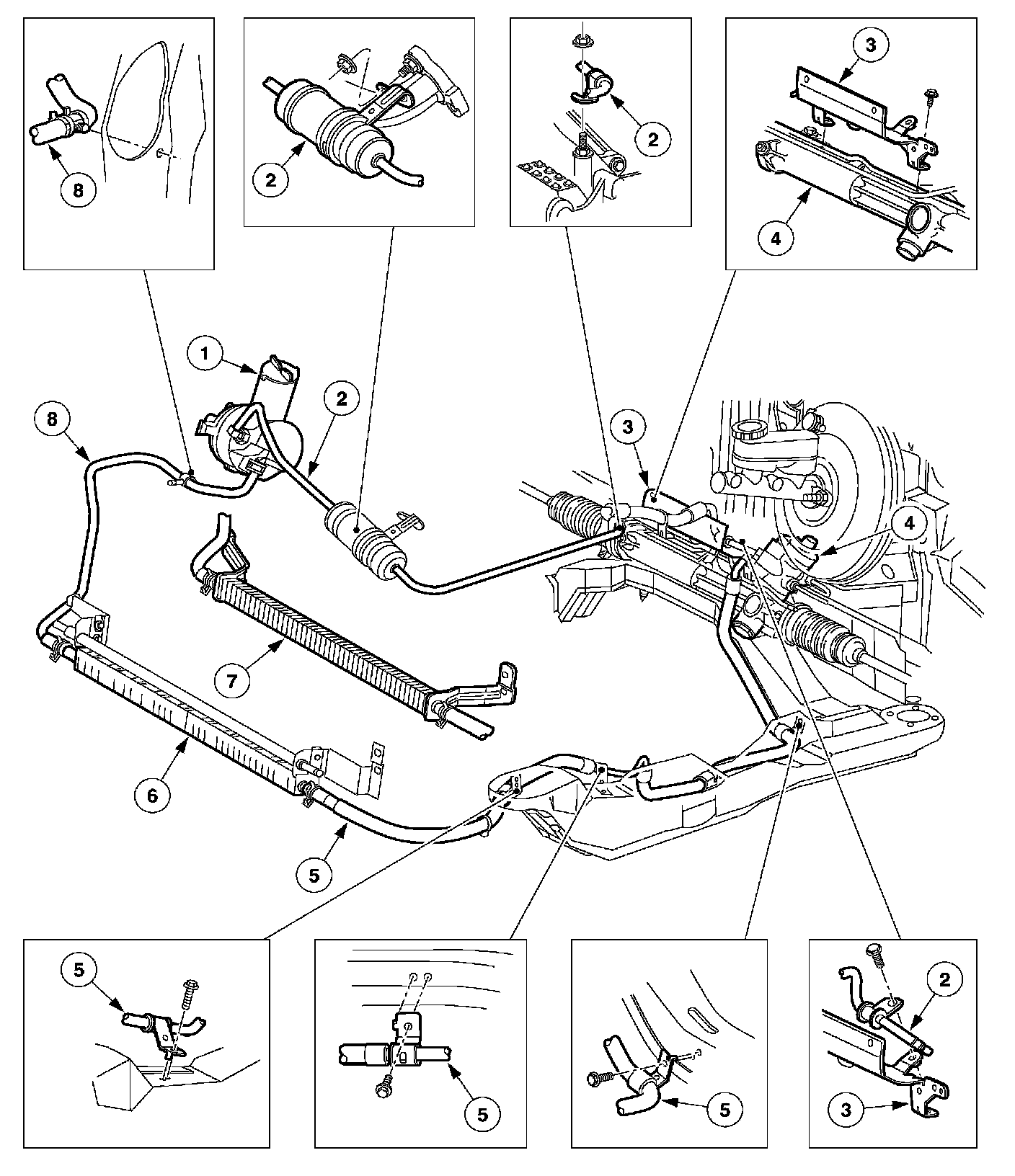

System View - 3.0L, 4V Engine (CIII Pump)
