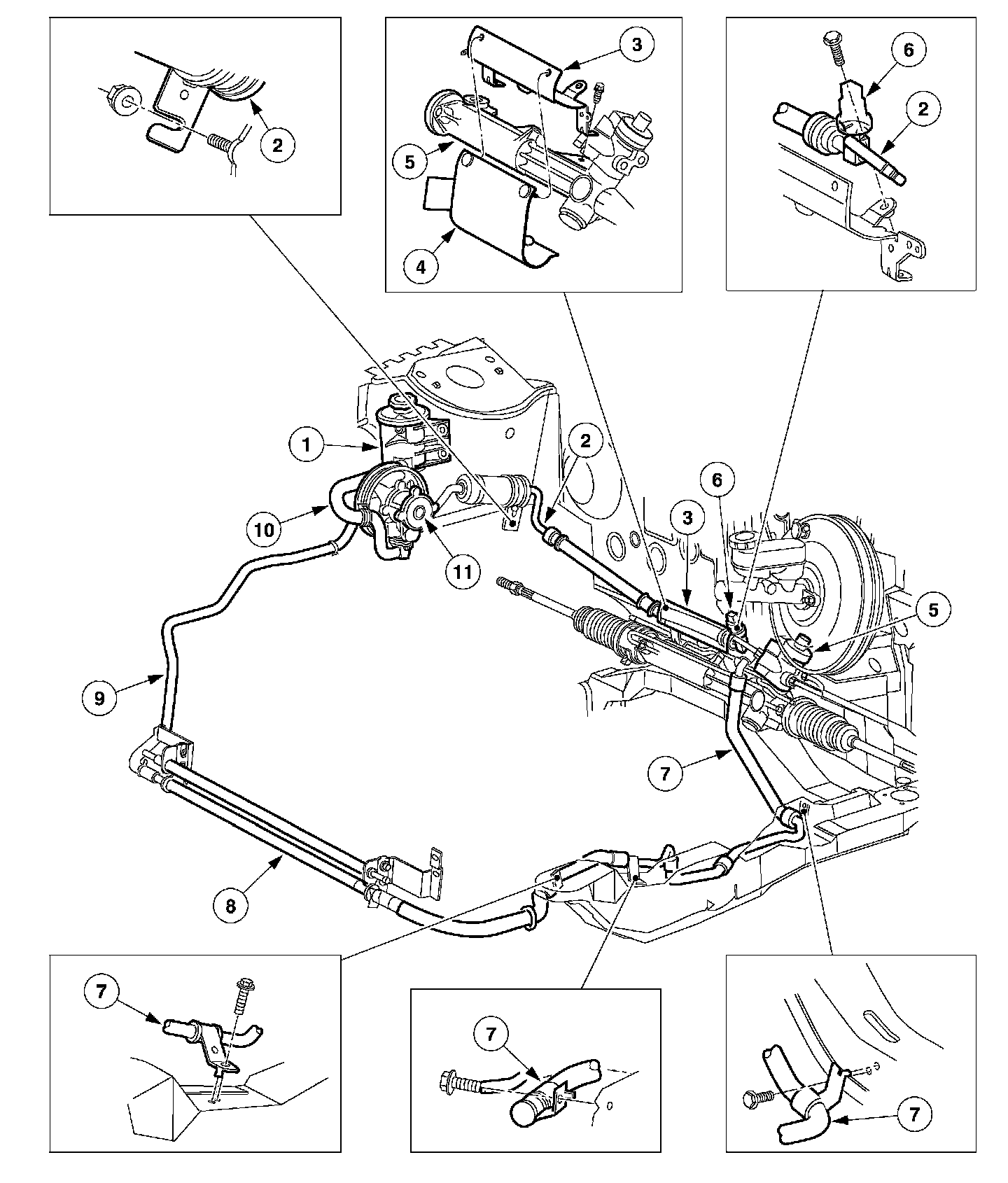

System View - 3.0L 4V Engine (CIII Pump)

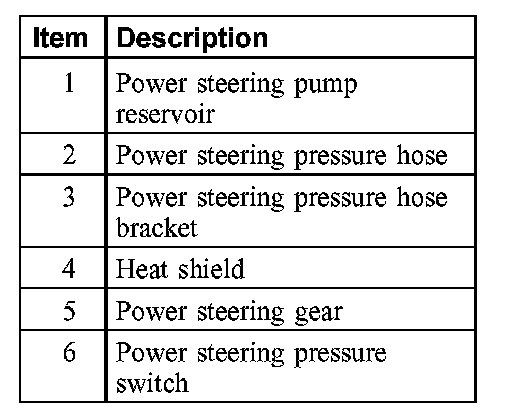

Part 1 Of 3:

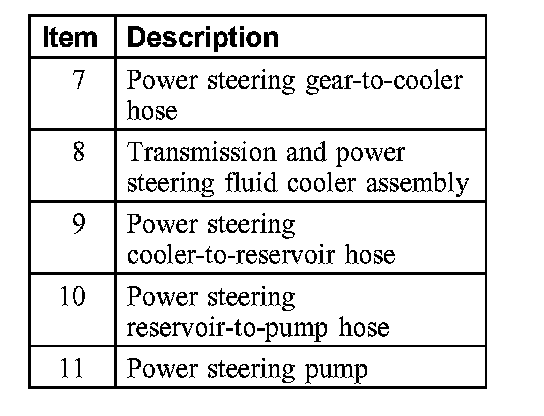

Part 2 Of 3:

Part 3 Of 3:

CIII Pump





Steering Gear (Typical)

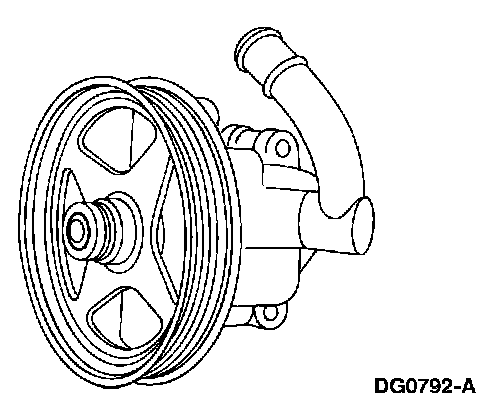

Power Steering Pump (CIII)

Power Steering Pressure (PSP) Switch
A Power Steering Pressure (PSP) switch is located on the power steering pressure hose. It sends a signal to the Powertrain Control Module (PCM) to increase idle speed for idling stability when power steering pump pressure increases above the set pressure value.
