System View - 3.0L 2V Engine (CII Pump)

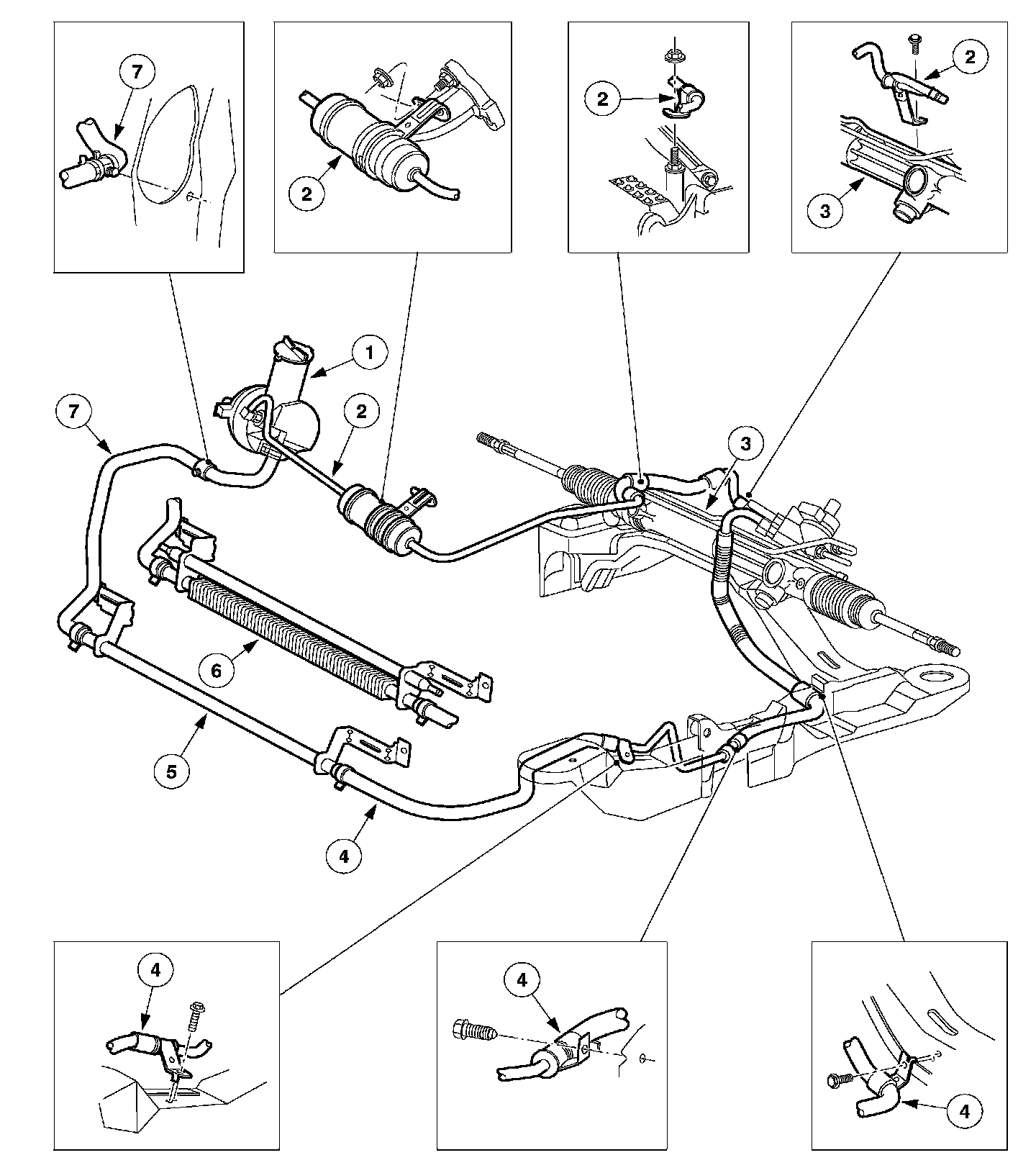

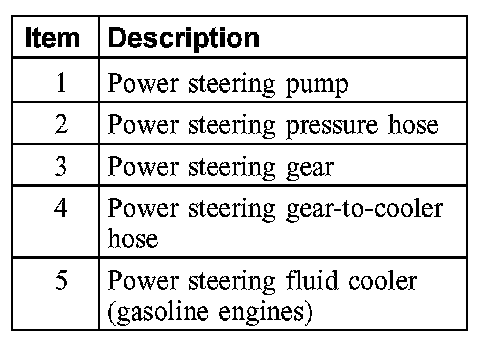

Part 1 Of 3:

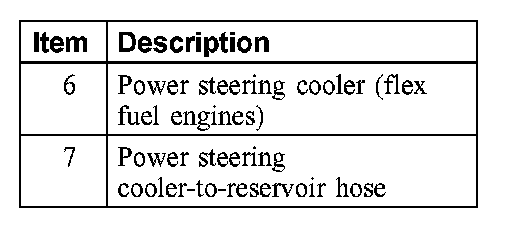

Part 2 Of 3:

Part 3 Of 3:

CII Pump

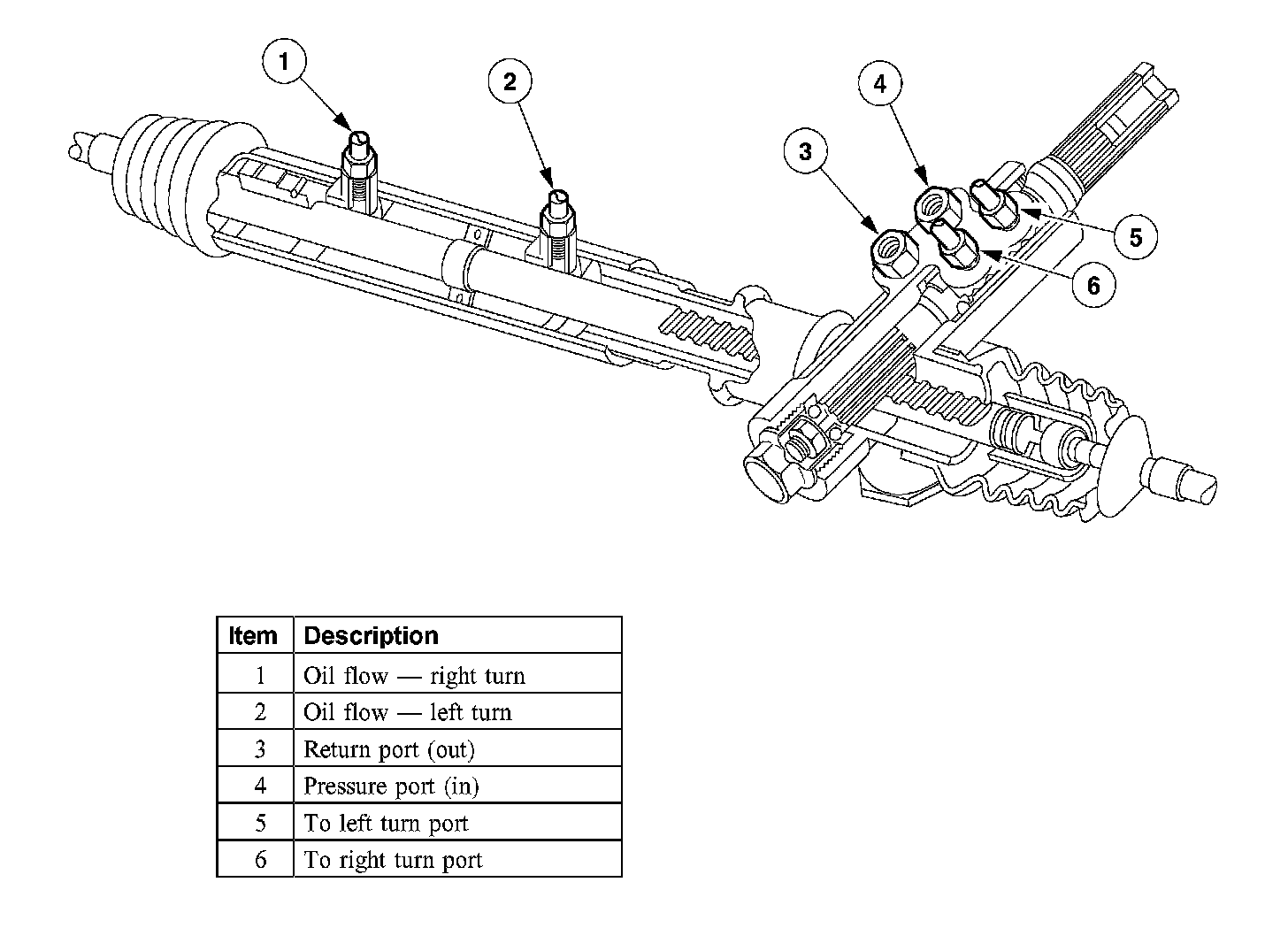

Steering Gear (Typical)

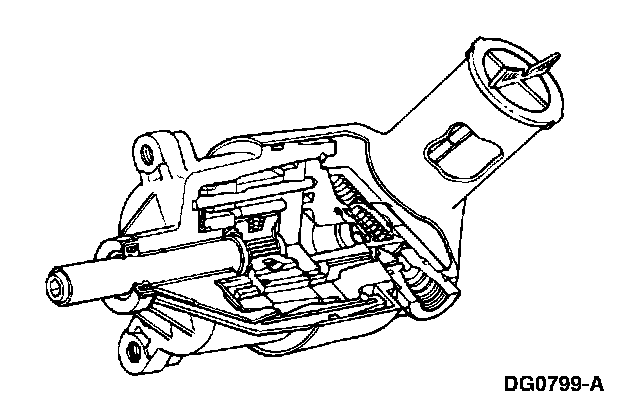

Power Steering Pump (CII)
