Initial Inspection and Diagnostic Overview
INSPECTION AND VERIFICATIONWARNING:
- When working underhood in the vicinity of the starter motor, be aware that the heavy gauge battery input lead at the starter solenoid is electrically hot at all times. A protective cap or boot is provided over the terminal of this lead and must be reinstalled after repairing.
- When working in area of the starter motor, be careful to avoid touching hot exhaust components.
NOTE: The anti-theft system must be functioning correctly before a logical starting system diagnosis can be carried out. Address anti-theft system concerns before continuing.
1. Verify the customer concern by operating the starting system to duplicate the conditions.

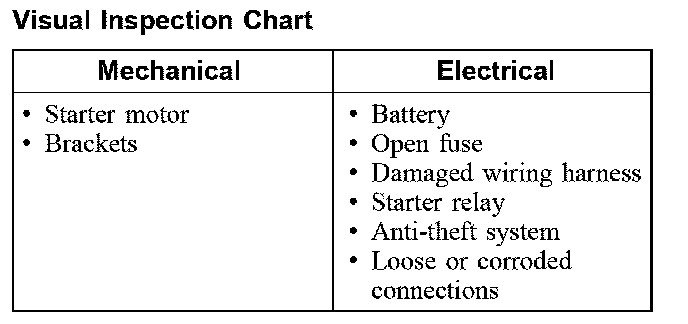

Visual Inspection Chart:
2. Inspect to determine if any of the following mechanical or electrical concerns apply.
3. If the inspection reveals an obvious concern that can be readily identified, repair as necessary.
4. If the concern remains after the inspection, determine the symptom. GO to Symptom Chart. Symptom Related Diagnostic Procedures
