Home >> Mercury >> 2005 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Timing Components >> System Specifications

System Specifications

CRANKSHAFT PULLEY
Crankshaft Pulley Bolts 50 Nm (37 ft. lbs.)

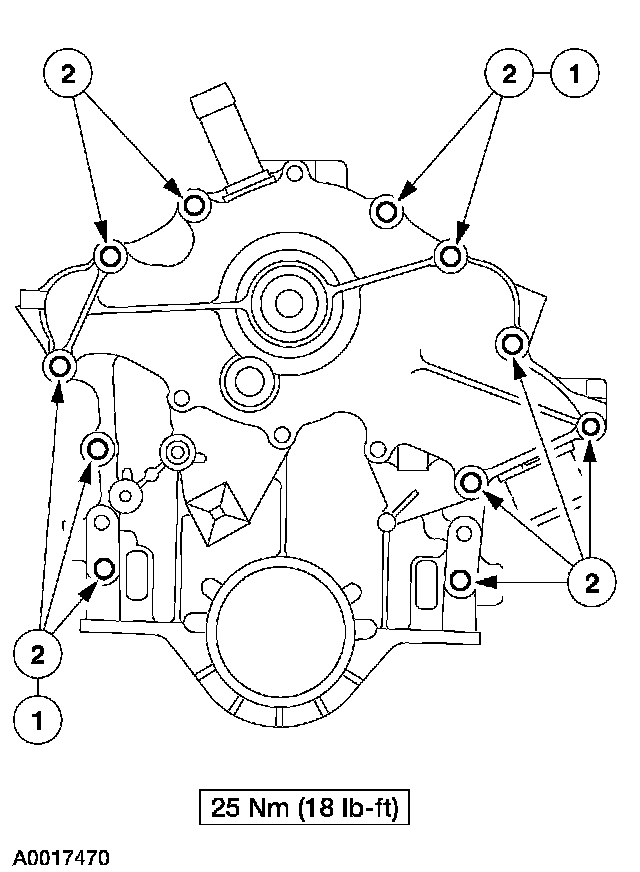

FRONT COVER






Front Cover Bolts 25 Nm (18 ft.lbs.)

CRANKSHAFT DAMPER
Crankshaft Damper Bolt 145 Nm (107 ft.lbs.)
