Inertia Fuel Shutoff Switch: Service and Repair

INERTIA FUEL SHUTOFF (IFS) SWITCH

Removal and Installation

All vehicles
1. Disconnect the battery ground cable.

Sedan
2. Position back the RH trunk liner.

Station wagon
3. Remove the rear quarter trim panel.

All vehicles

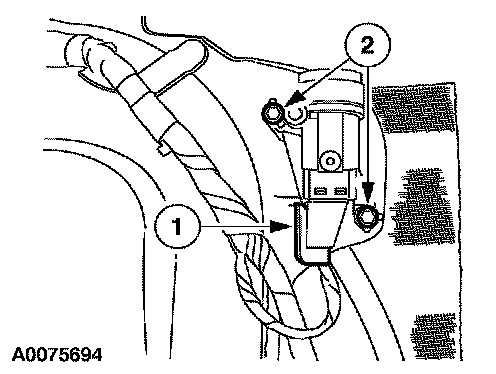

4. Remove the inertia fuel shutoff (IFS) switch.
1 Disconnect the IFS switch electrical connector.
2 Remove the screws and the switch.

5. To install, reverse the removal procedure.
