Safety Belt - Front, Center

SAFETY BELT - FRONT, CENTER

Removal and Installation

NOTE: New safety belt buckles, height adjusters, center adjust tongues and belts and retractors can be installed separately. However, if a safety belt assembly was in use during a collision, a new safety belt and retractor must be installed as well as the center adjust tongue and safety belt and buckle assembly or the center adjust tongue and the cable and buckle assembly. When installing new safety belts and buckles, height adjusters, safety cables and buckles, center adjust tongues and safety belts and retractors, use only the parts specified in the Ford Master Parts Catalog for the make and model of the vehicle being repaired. Safety belt assemblies must not be interchanged between vehicle models.

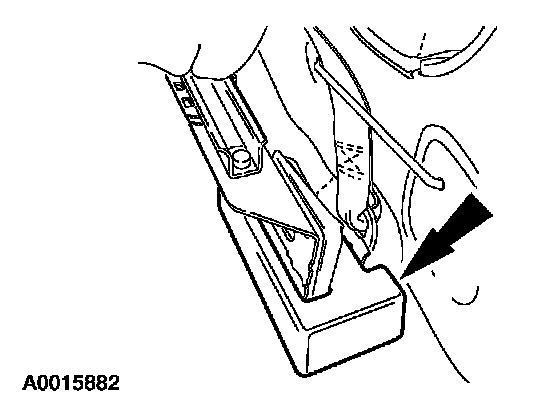

1. Remove the trim cover.

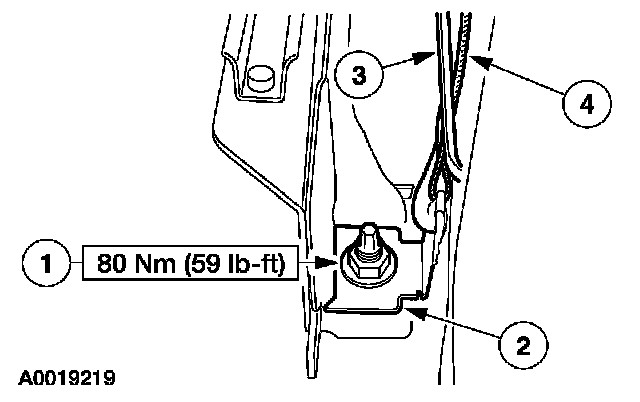

2. Remove the safety belt.
1 Remove the safety belt hold down nut.
2 Remove the safety belt anchor from the floor stud.
3 Route the safety belt from the retaining strap.
4 Remove the safety belt.

3. NOTE:
- Make sure to tighten the nut to specification.
- Make sure the safety belt is routed through the retaining strap.

To install, reverse the removal procedure.
- Make sure that the safety belt is routed through the retaining strap.

4. Check the restraint system for correct operation.
