Child Safety Seat Tether Anchor - Four Door

CHILD SAFETY SEAT TETHER ANCHOR - FOUR DOOR

Removal and Installation
1. Remove the parcel shelf.

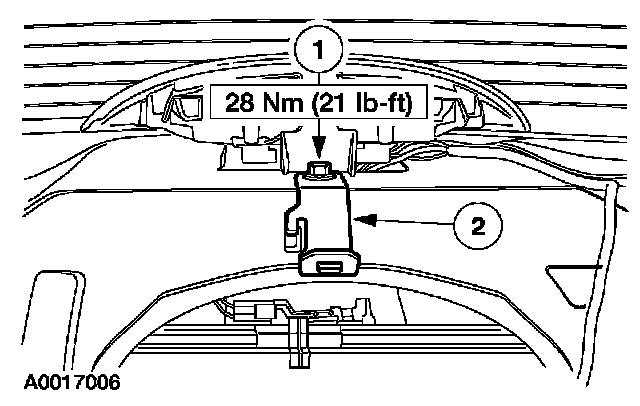

2. NOTE: The passenger side is shown, the driver side is similar.

Remove the outboard child safety seat belt tether anchor.
1 Remove the bolt.
2 Remove the outboard child safety seat tether strap anchor.

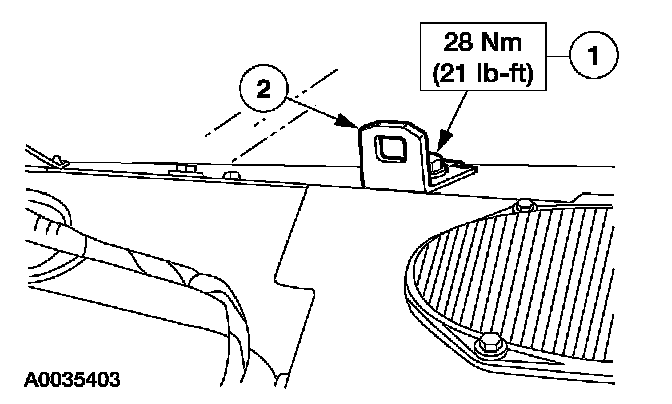

3. Remove the inboard child safety seat belt tether anchor.
1 Remove the bolt.
2 Remove the inboard child safety seat tether strap anchor.

4. WARNING: It is important that the bolt/anchor be securely tightened to specification. Otherwise, the child's safety seat may not be properly secured, and the child can be injured in case of a sudden stop or accident.

NOTE:
- Rework the sheet metal to its original condition and structural integrity.
- Make sure to tighten the bolts to specification.

To install, reverse the removal procedure.
- Refer to the removal procedure or Specifications for torque specifications.

5. Check the restraint system for correct operation.
