Test X: LFC 49/DTC C1981 - Seat Track Position Switch Circuit Fault

PINPOINT TEST X: LFC 49/DTC C1981 - SEAT TRACK POSITION SWITCH CIRCUIT FAULT

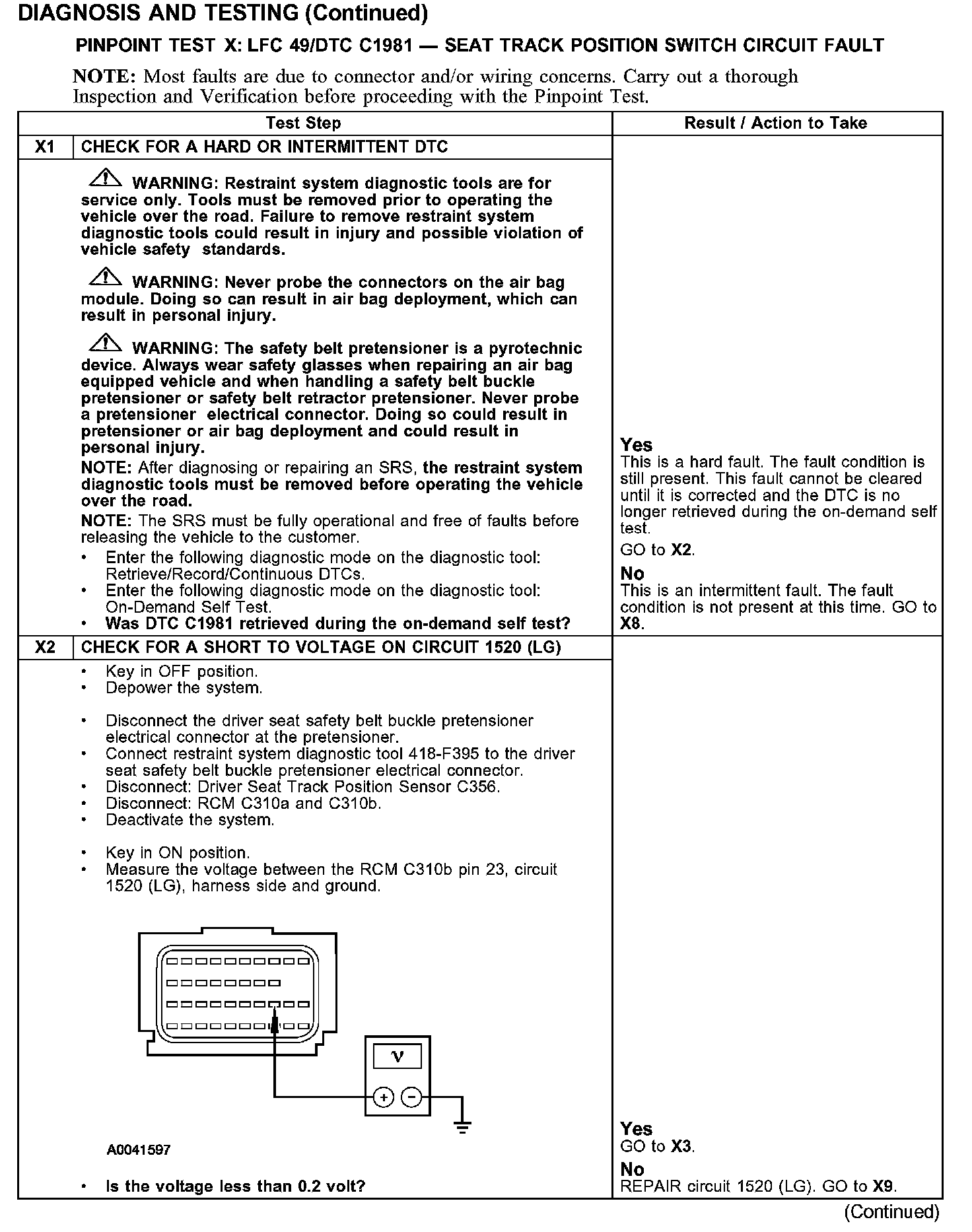

X1-X2:

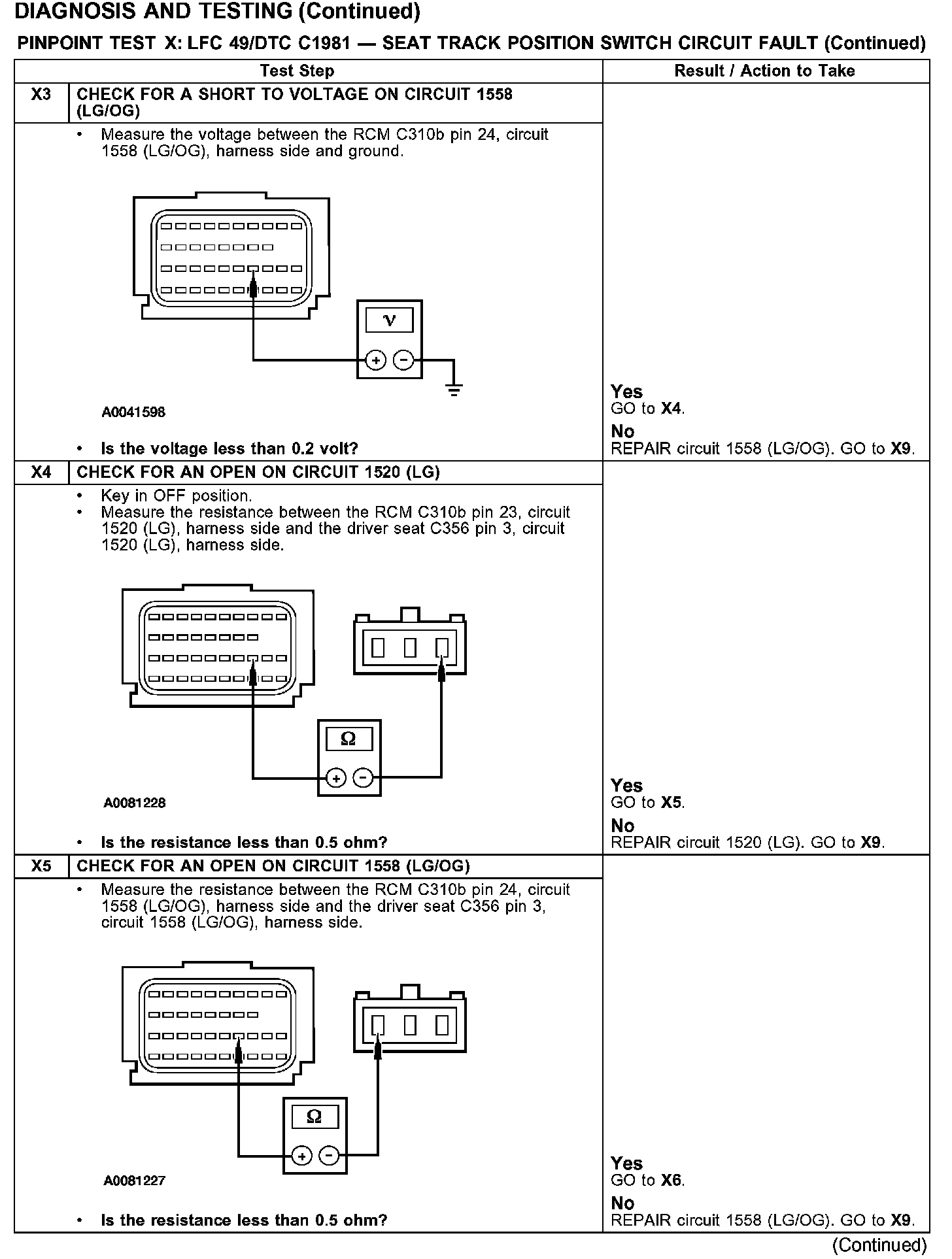

X3-X5:

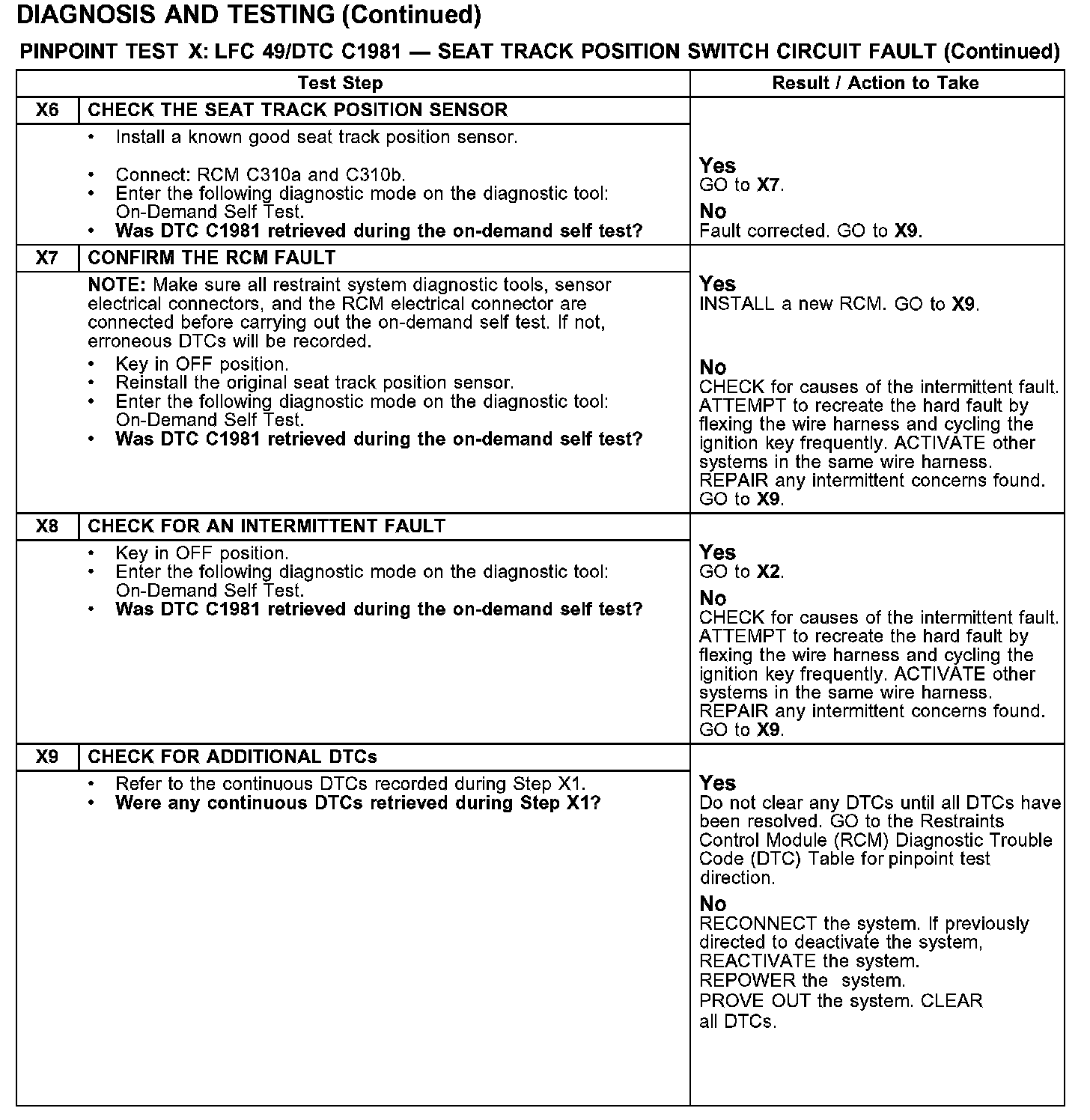

X6-X9:

Normal Operation
The seat track position sensor informs the RCM of the drivers seat position.

The restraints control module (RCM) monitors the driver seat track position sensor circuits. If the RCM detects an open circuit or short to voltage, it will store diagnostic trouble code (DTC) C1981 in memory and flash lamp fault code (LFC) 49 (or higher priority code if one exists) on the air bag indicator.

Possible Causes
A seat track position sensor open circuit or short to voltage fault can be caused by:
- wiring, terminals, or connectors.
- a faulted seat track position switch.
- a faulted RCM.
