Removal and Installation

SPARK PLUG

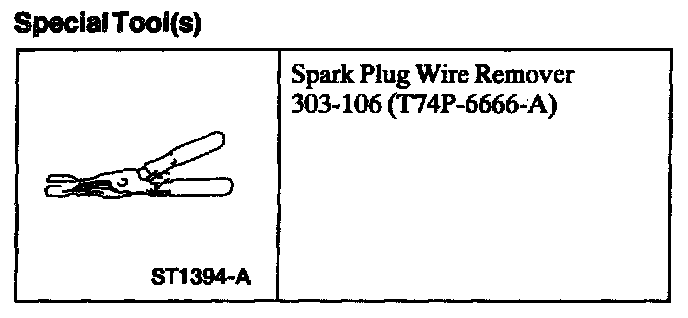

Spark Plug Wire Remover:

SPECIAL TOOL(S)

REMOVAL







1. CAUTION: It is important to twist the spark plug wire boots while pulling upward to avoid possible damage to the spark plug wire.

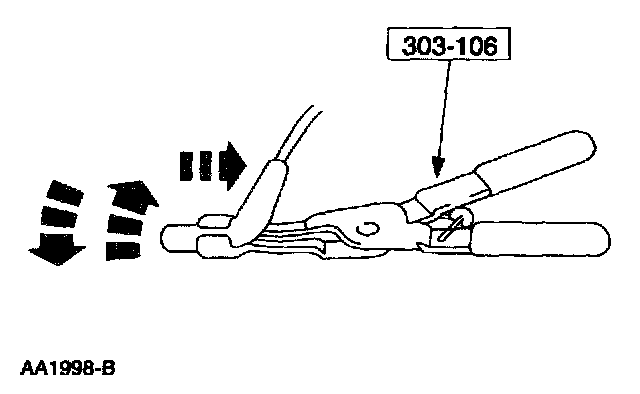

Using the special tool, with a twisting motion pull the spark plug wire off the spark plug.







2. NOTE:
- Loosen the spark plug one quarter turn then use compressed air to remove any foreign material in the spark plug well before removing the spark plugs.
- If an original spark plug is reused, make sure it is installed in the same cylinder from which it was taken. New spark plugs can be used in any cylinder.

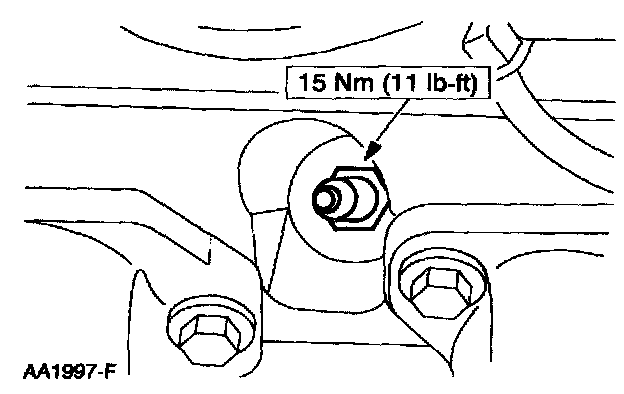

Remove the spark plug.

3. Inspect the spark plug firing tip.

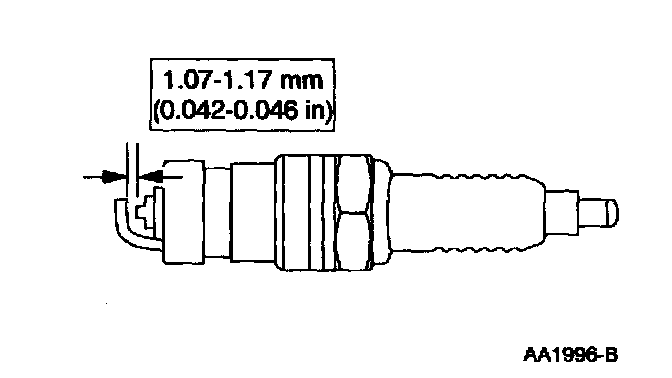

4. Adjust the spark plug gap as necessary.

INSTALLATION

1. CAUTION: Spark plug wires must be connected correctly.

To install, reverse the removal procedure.
