Air Cleaner Housing: Service and Repair

AIR CLEANER

REMOVAL
1. Remove the air cleaner outlet tube.

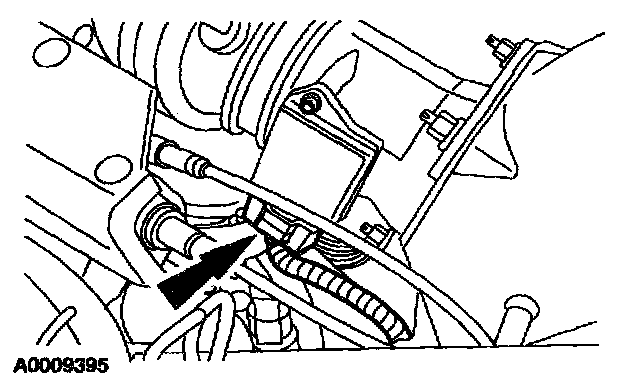

2. Disconnect the mass airflow sensor electrical connector.

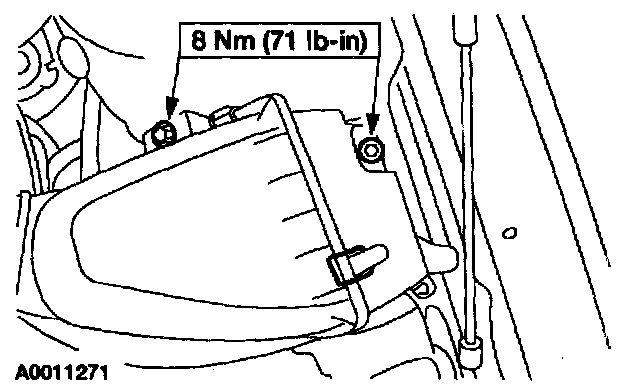

3. Remove the two air cleaner housing bolts.







4. Lift the air cleaner housing off the locating pin.

INSTALLATION
1. To install, reverse the removal procedure.
