Ignition Coil: Service and Repair

"AllData Editors Note:

Customers have reported success using the following spark plug wire placement on the coil pack."






IGNITION COIL

REMOVAL







1. CAUTION: It is important to twist the spark plug wire boots while pulling upward to avoid possible damage to the spark plug wire.

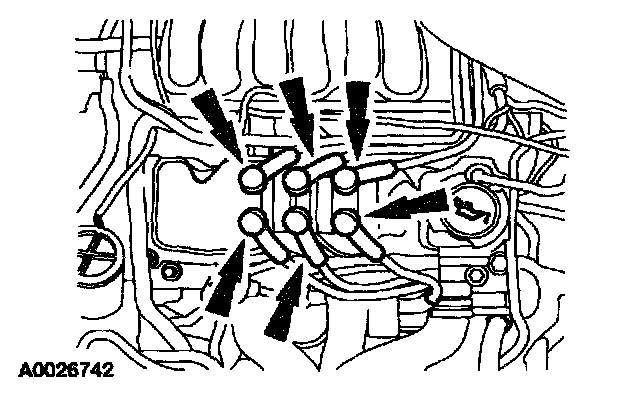

Disconnect the spark plug wires by twisting while pulling upward.

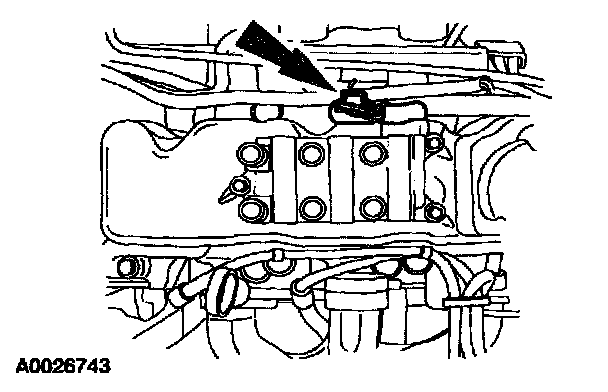

2. Disconnect the electrical connector from the ignition coil.







3. Remove the ignition coil.

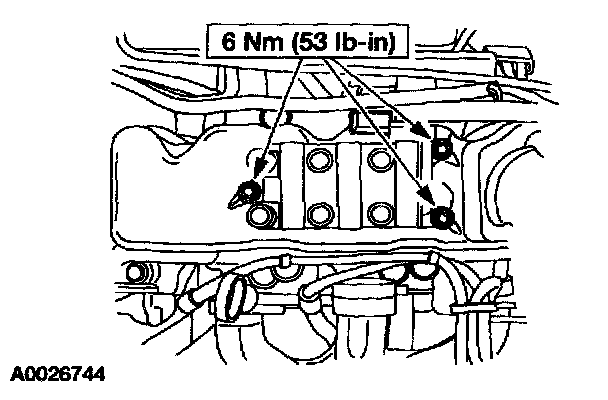

- Remove the bolts.
- Wipe the ignition coil towers with a clean cloth dampened with soap and water.

INSTALLATION

1. CAUTION: Spark plug wires must be connected to the correct ignition coil terminal.

To install, reverse the removal procedure.
