Home >> Mercury >> 2005 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Fuel Pump >> Locations >> Component Locations

Component Locations

ALLDATA editor's note: Ford identifies this one componenet by two different names: Fuel Pump Module or Fuel Tank Unit.

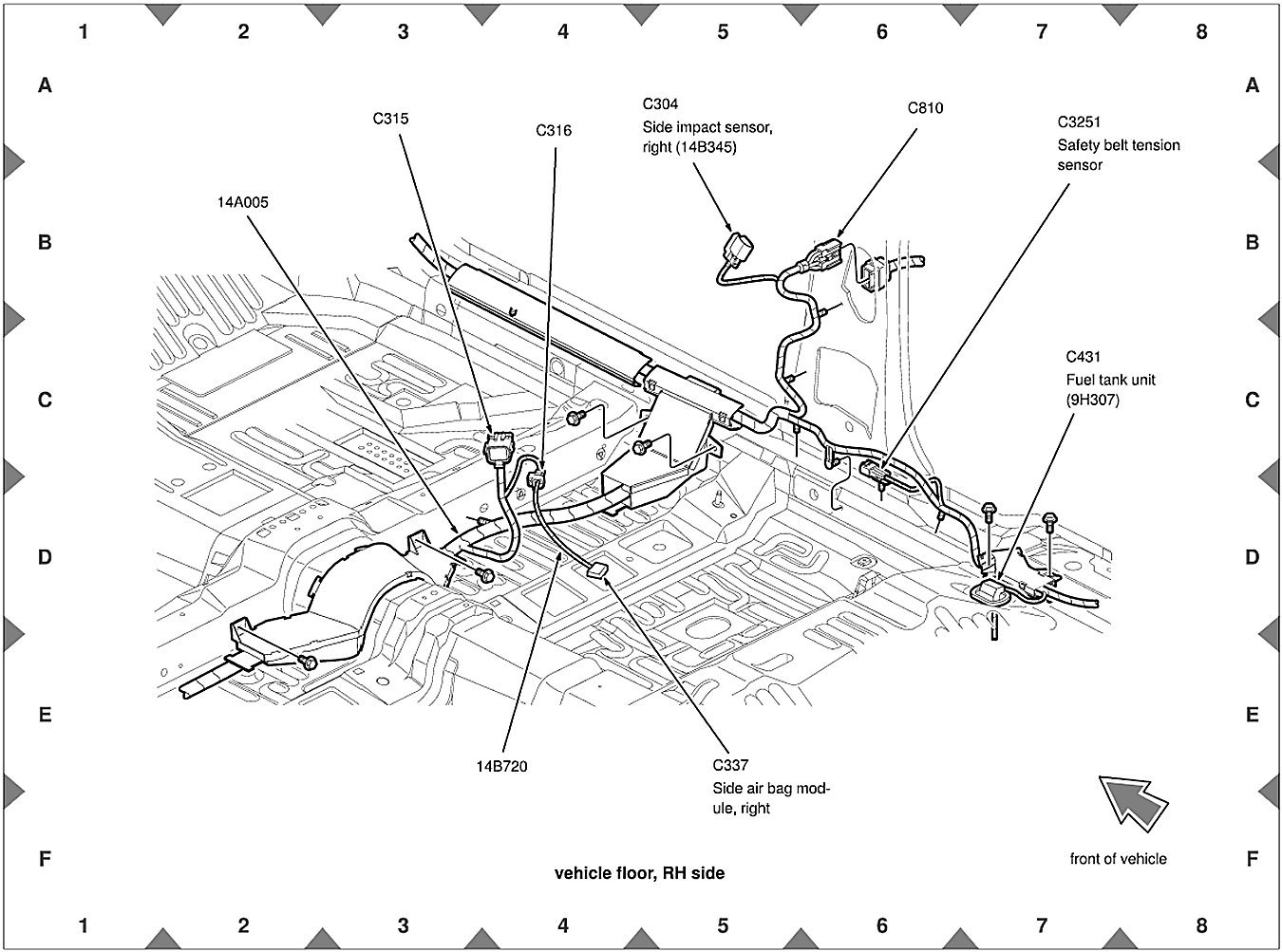

C431:

Fuel Tank Unit is located in the fuel tank.
