Spring Lock Coupling

SPRING LOCK COUPLING

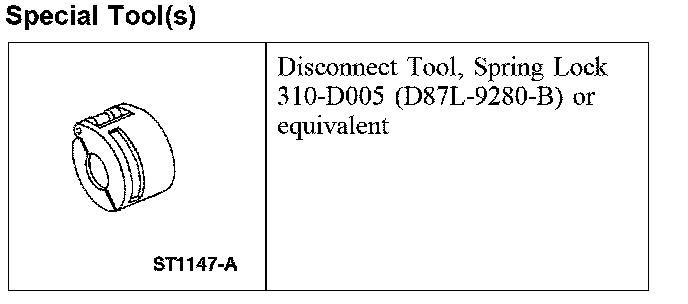

Disconnect Tool, Spring Lock:

Special Tool(s)

Disconnect

WARNING:
- Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited, resulting in possible personal injury.
- Fuel in the fuel system remains under high pressure even when the engine is not running. Before servicing or disconnecting any of the fuel lines or fuel system components, the fuel system pressure must be relieved to prevent accidental spraying of fuel, causing personal injury or a fire hazard.

1. Release the fuel system pressure.

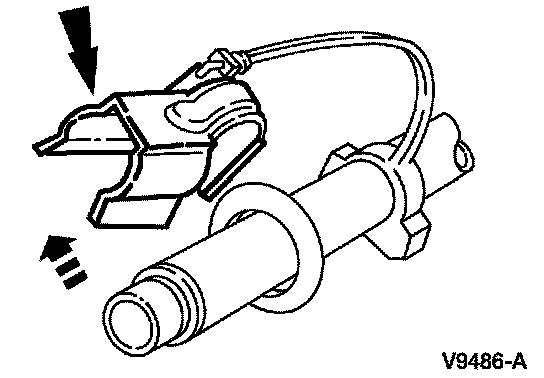

2. Remove the fuel tube clip.

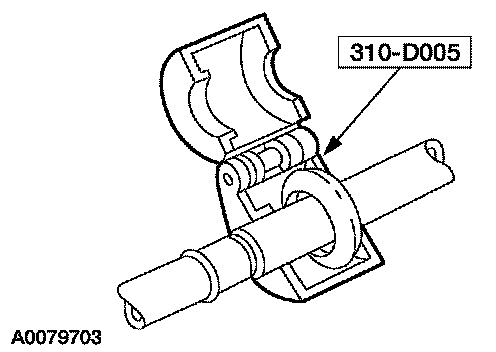

3. Install the special tool.

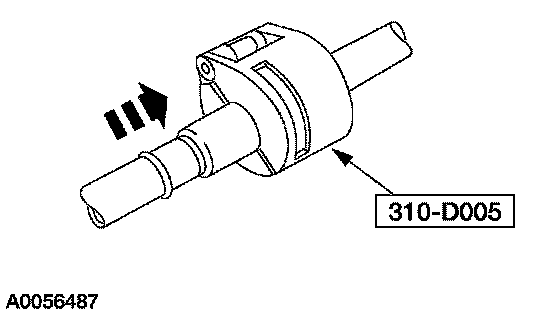

4. Close and push the special tool into the open side of the cage.

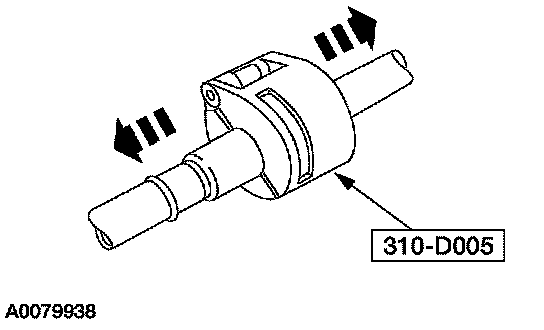

5. Separate the fitting.

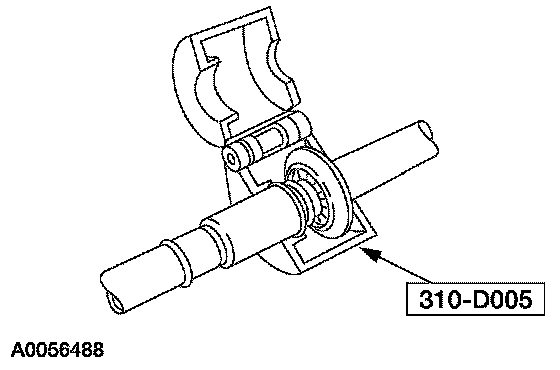

6. Remove the special tool.

Connect







1. To connect, push both of the coupling ends together until the spring lock is in place.

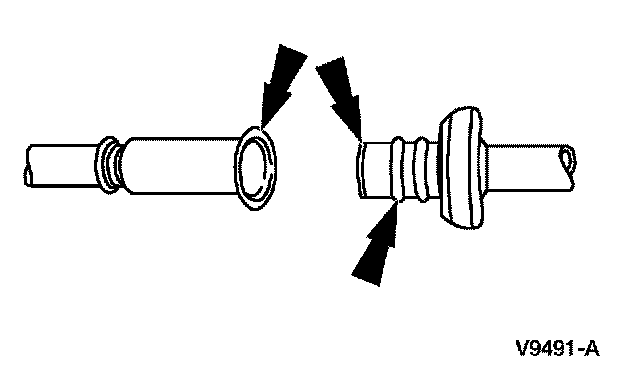

- Inspect and clean both coupling ends.
- Lubricate the O-ring seals with engine oil.
