Tests KD: Electric Exhaust Gas Recirculation (EEGR) System



PINPOINT TEST KD: ELECTRIC EXHAUST GAS RECIRCULATION (EEGR) SYSTEM

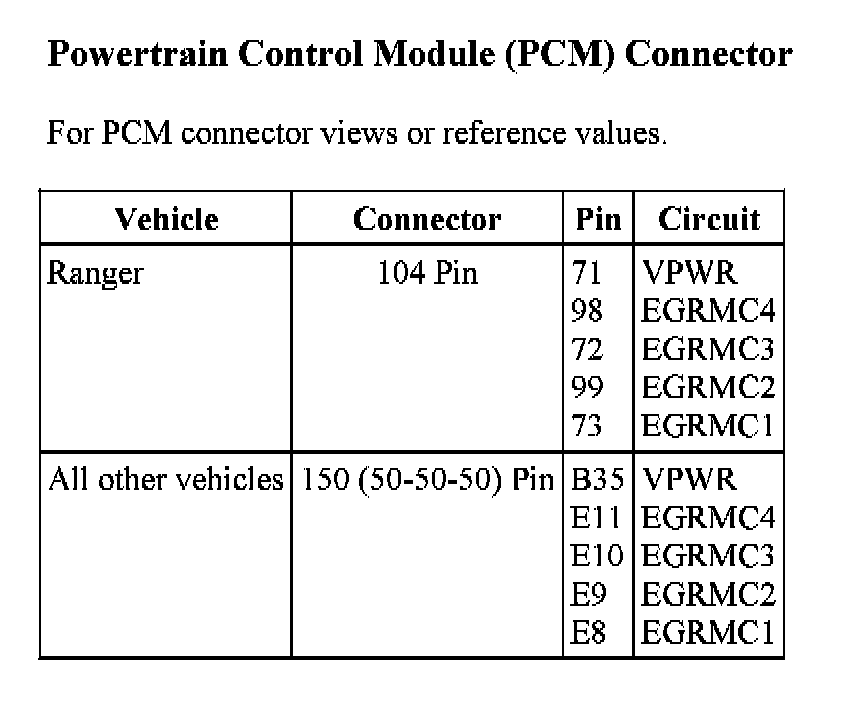

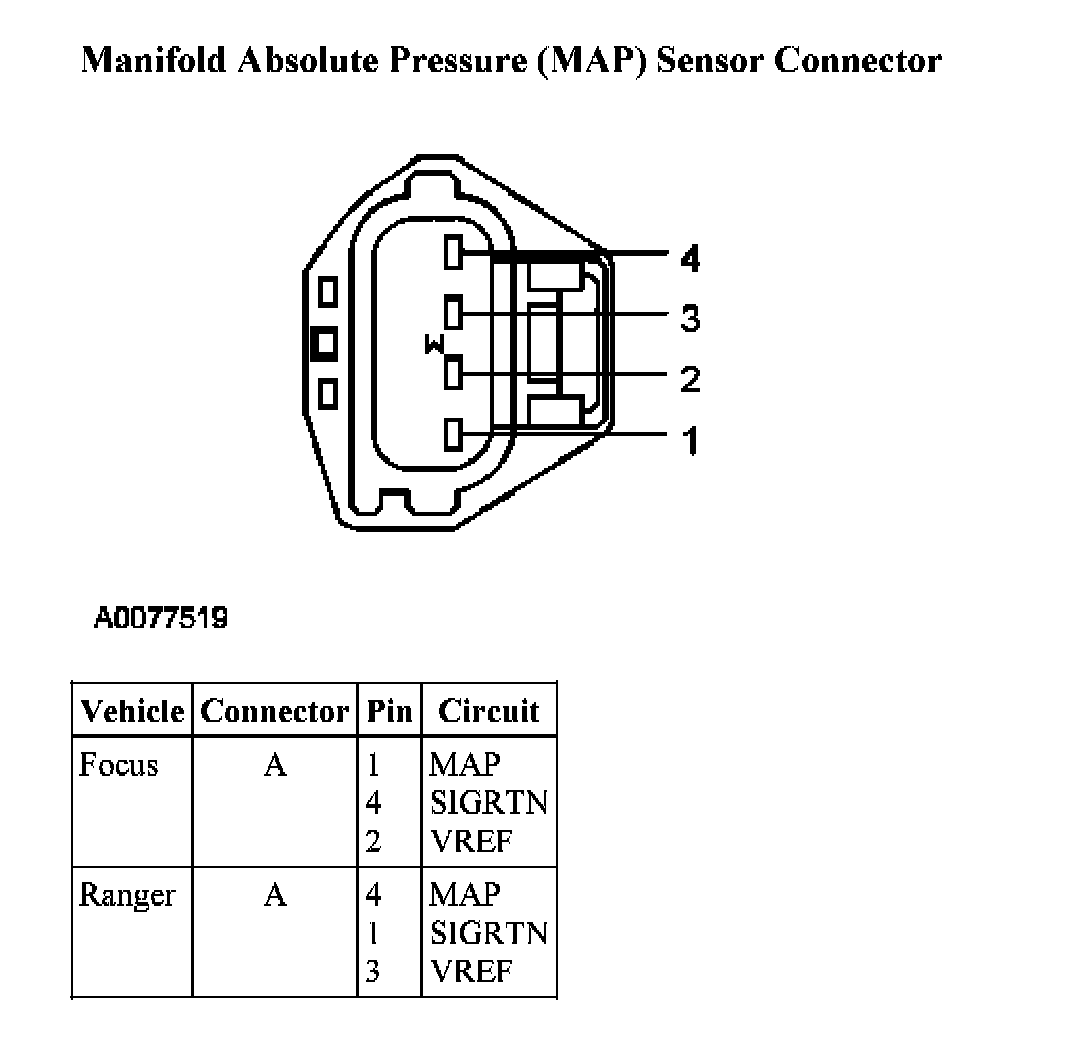

KD Introduction:





KD Introduction:





KD Introduction:

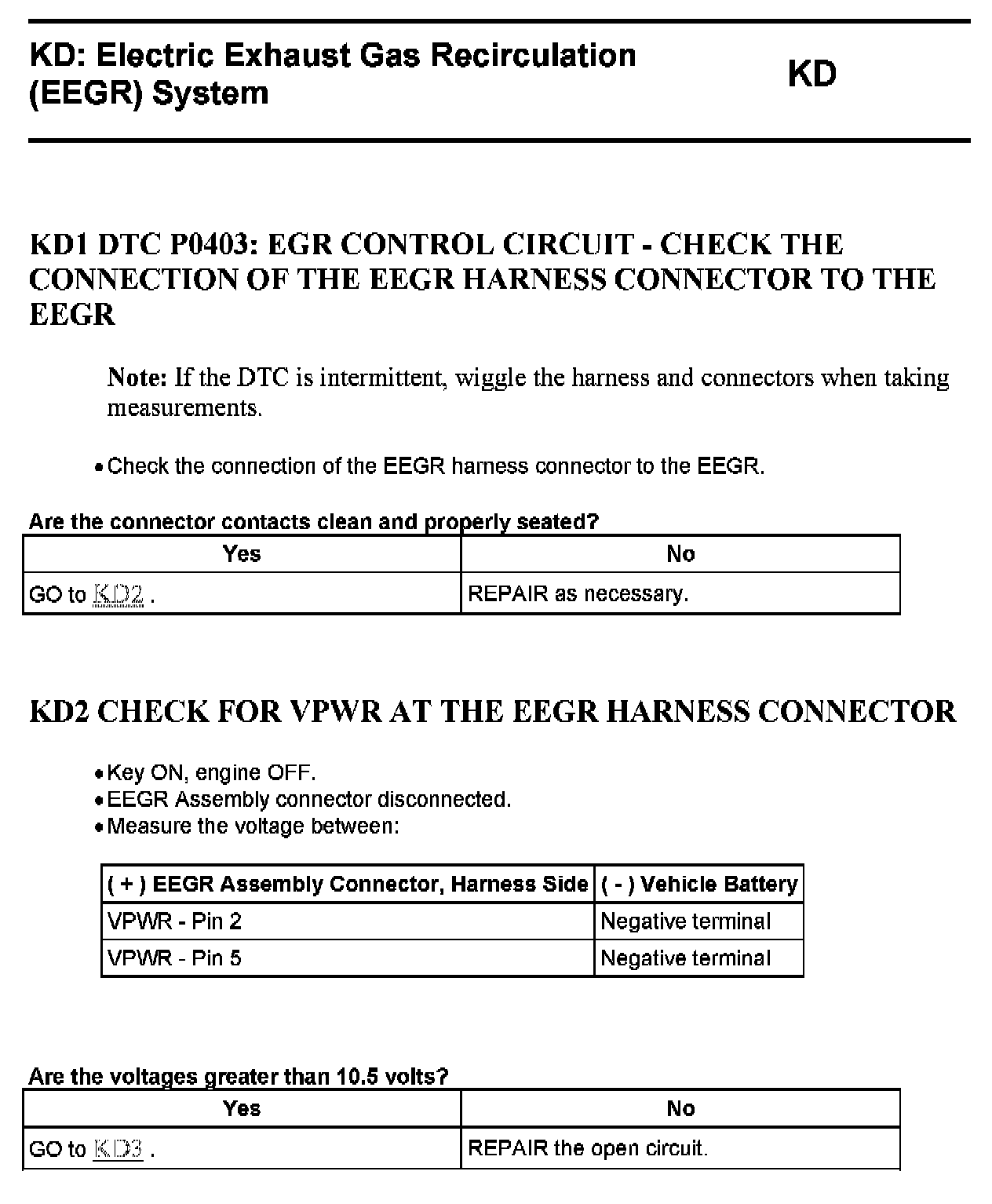

KD1 - KD2:

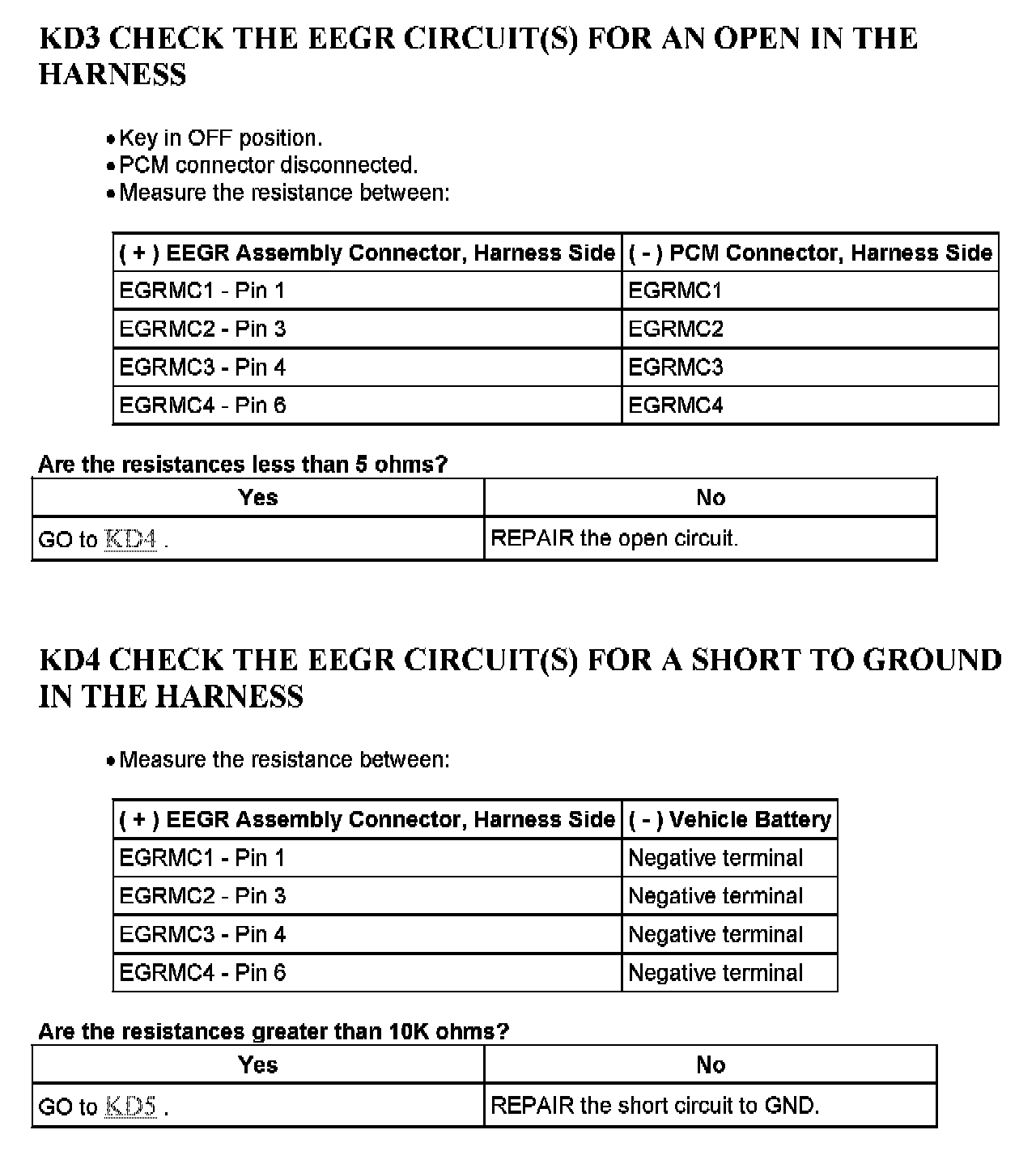

KD3 - KD4:

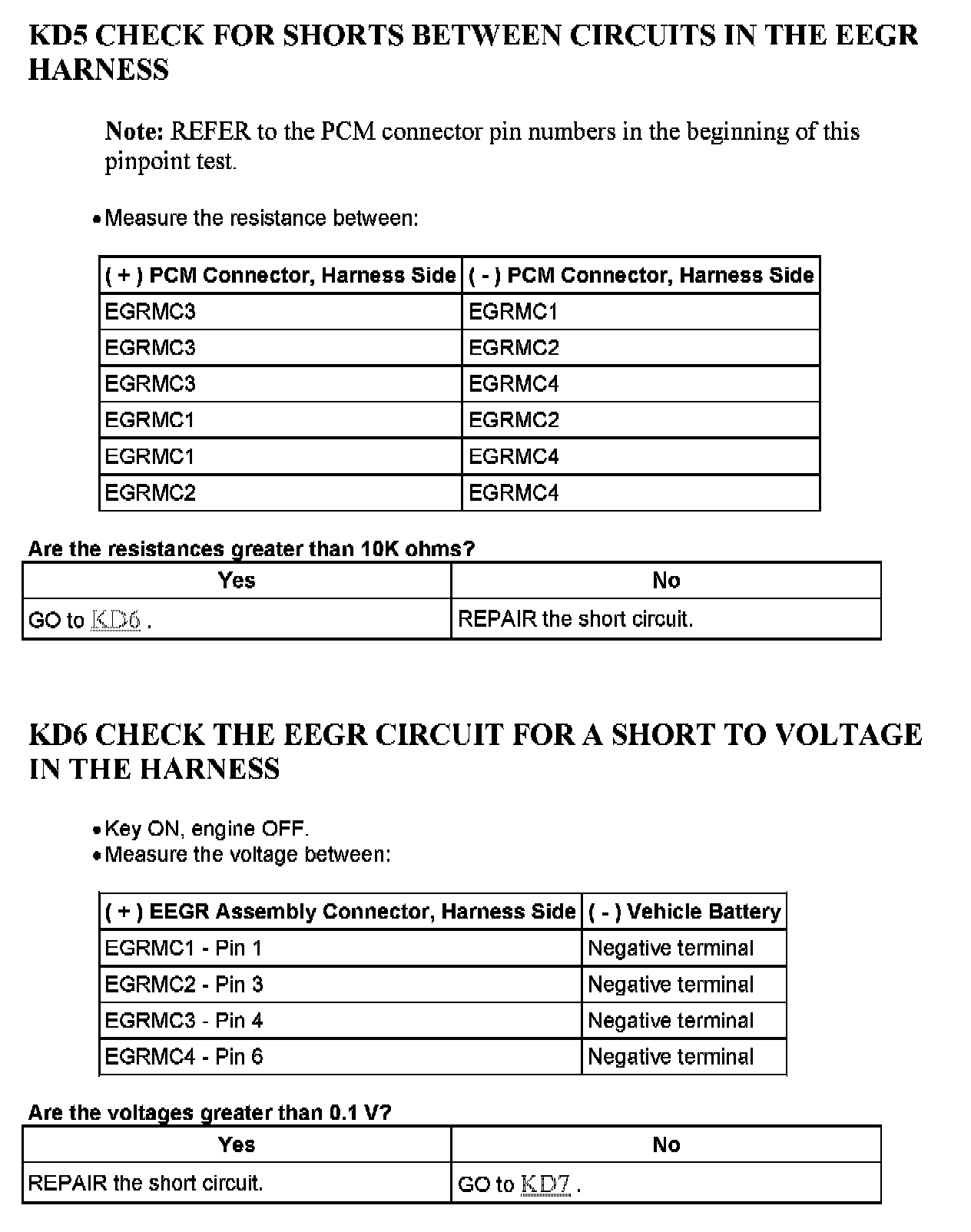

KD5 - KD6:

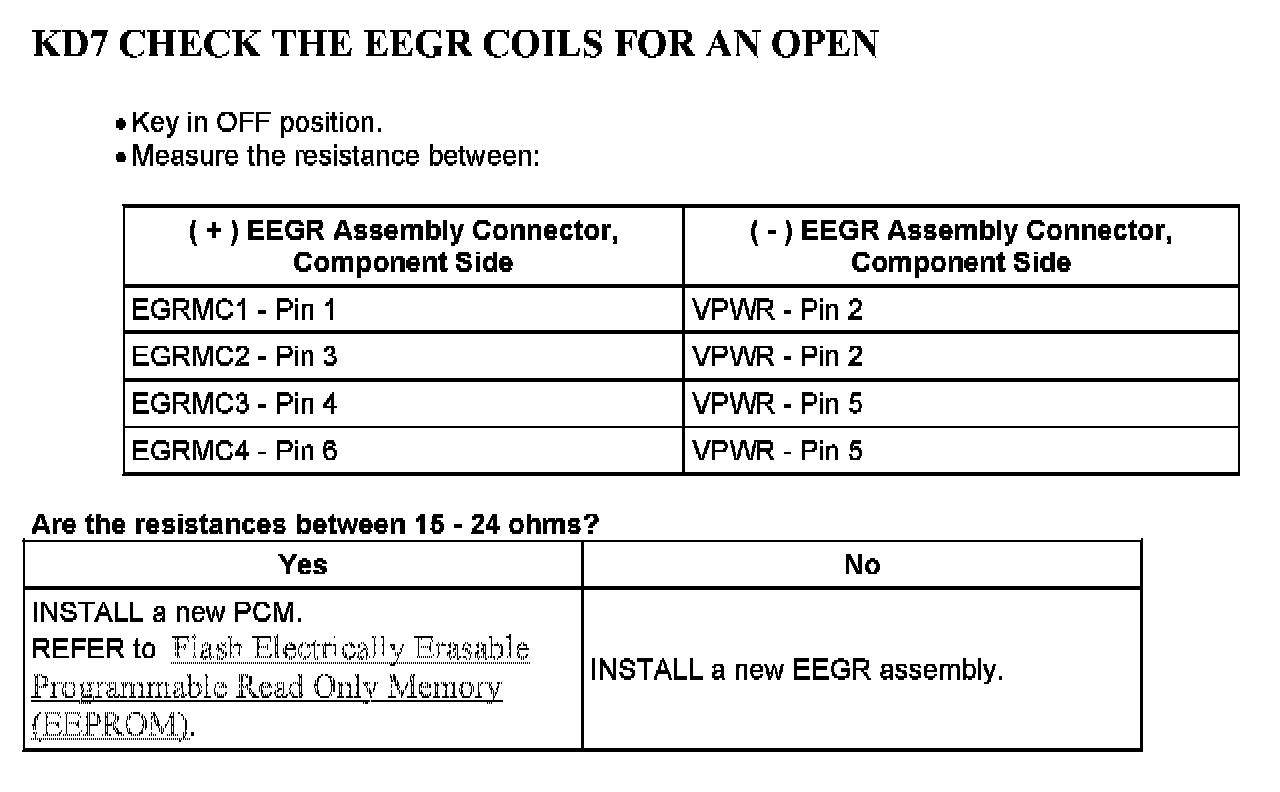

KD7:

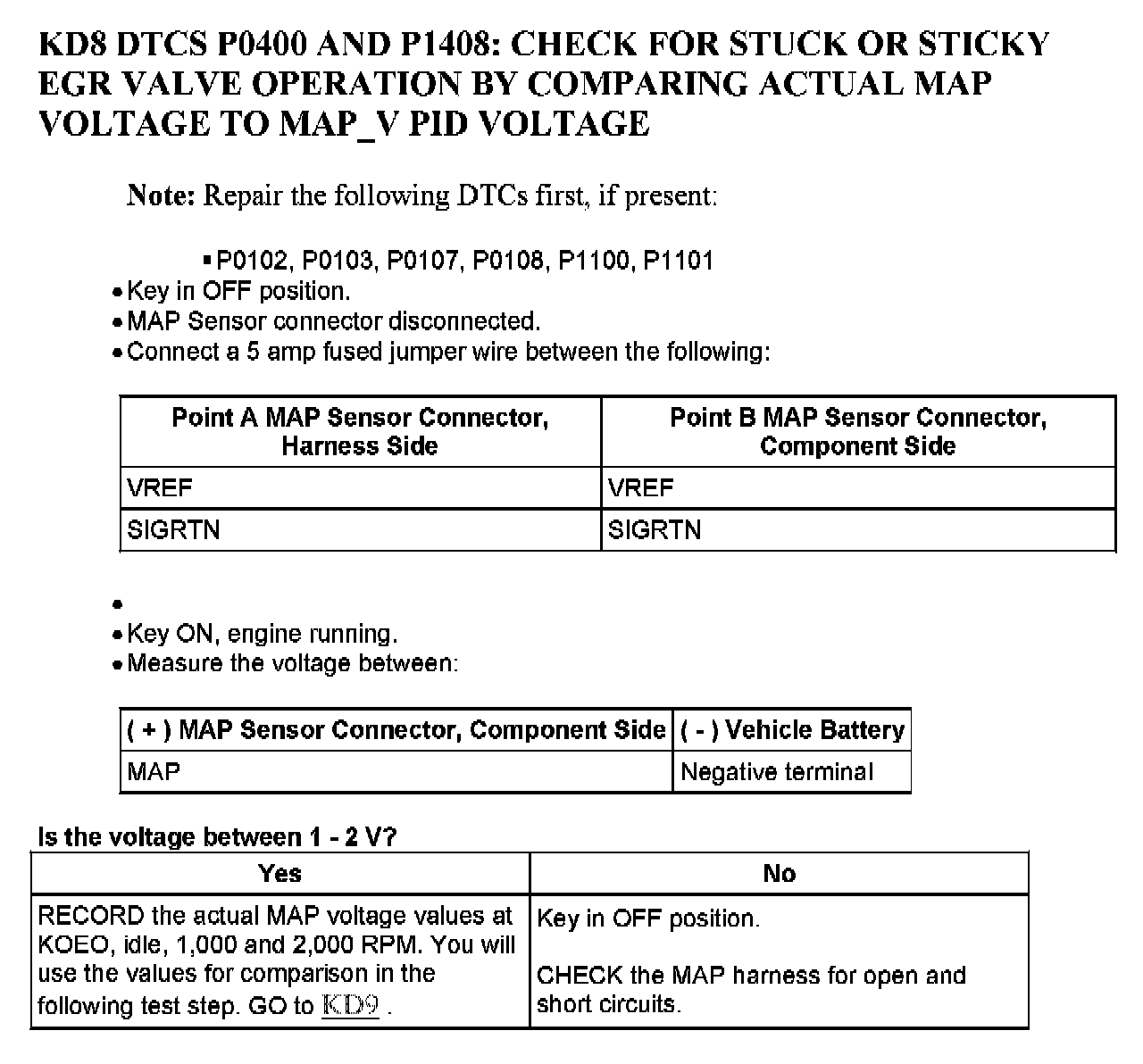

KD8:

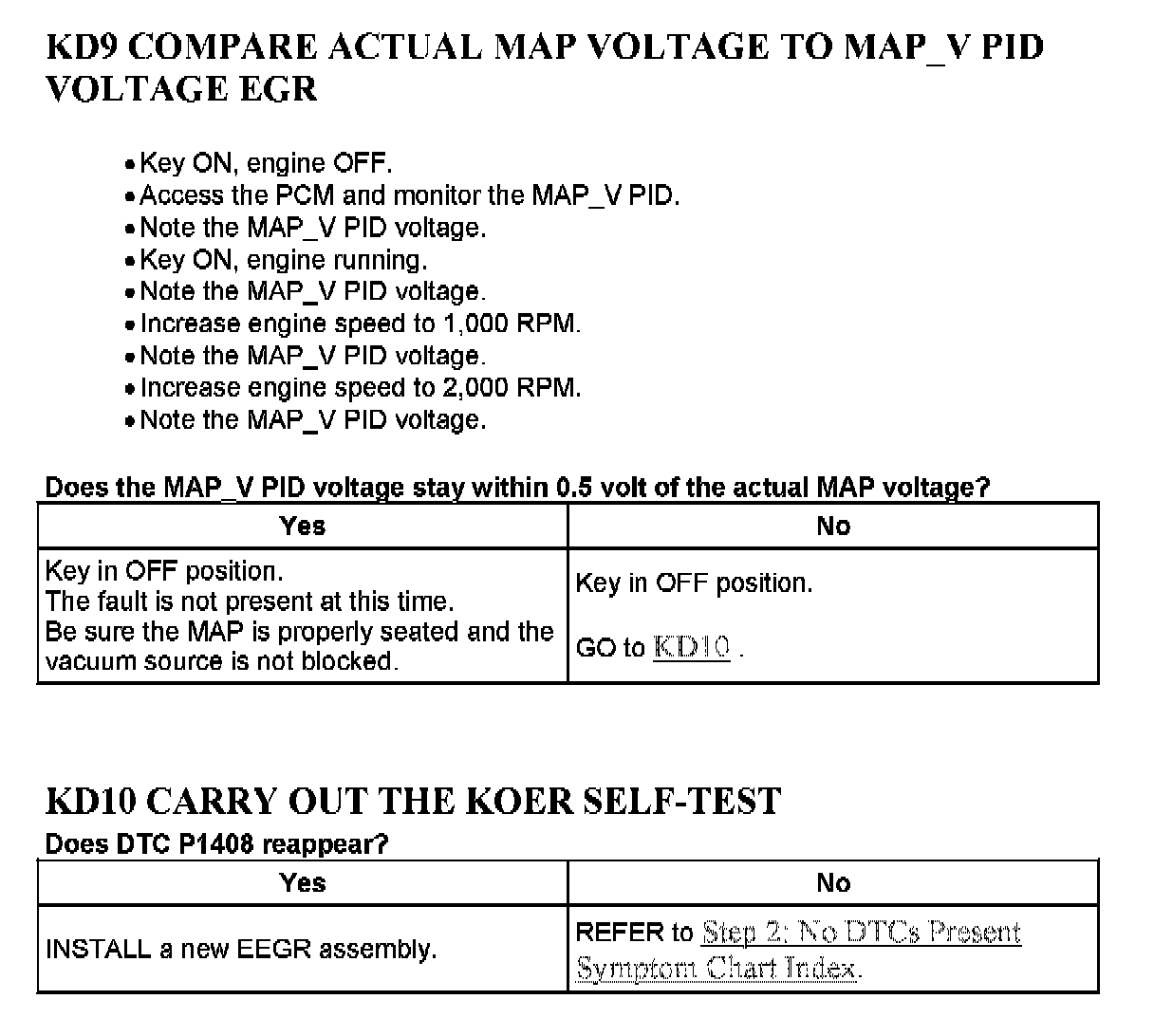

KD9 - KD10:
