Tests JE: Integrated Ignition Coil Pack A, B or C Failure
Tests JE: Integrated Ignition Coil Pack A, B or C Failure
PINPOINT TEST JE: INTEGRATED IGNITION COIL PACK A, B OR C FAILURE

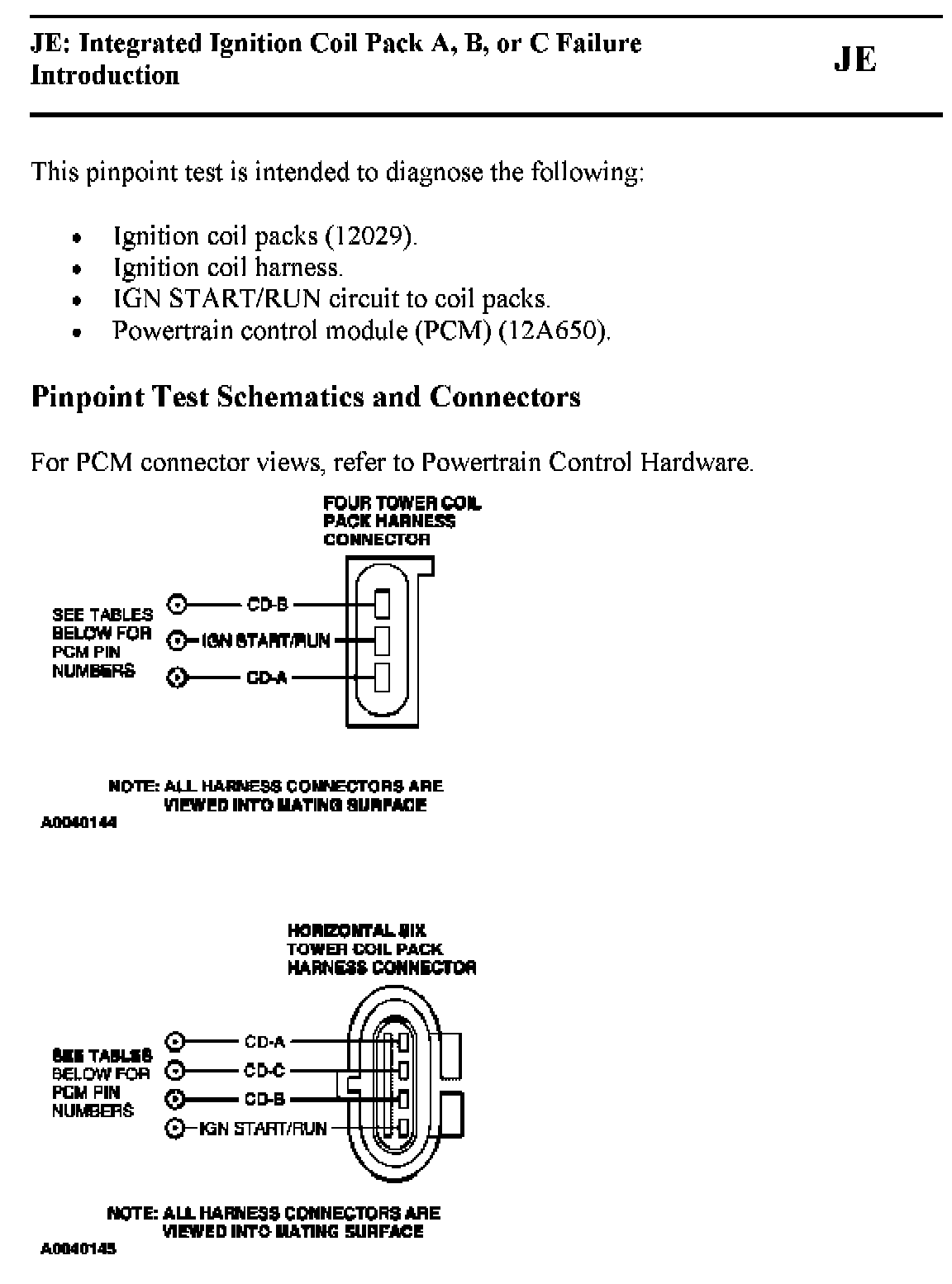

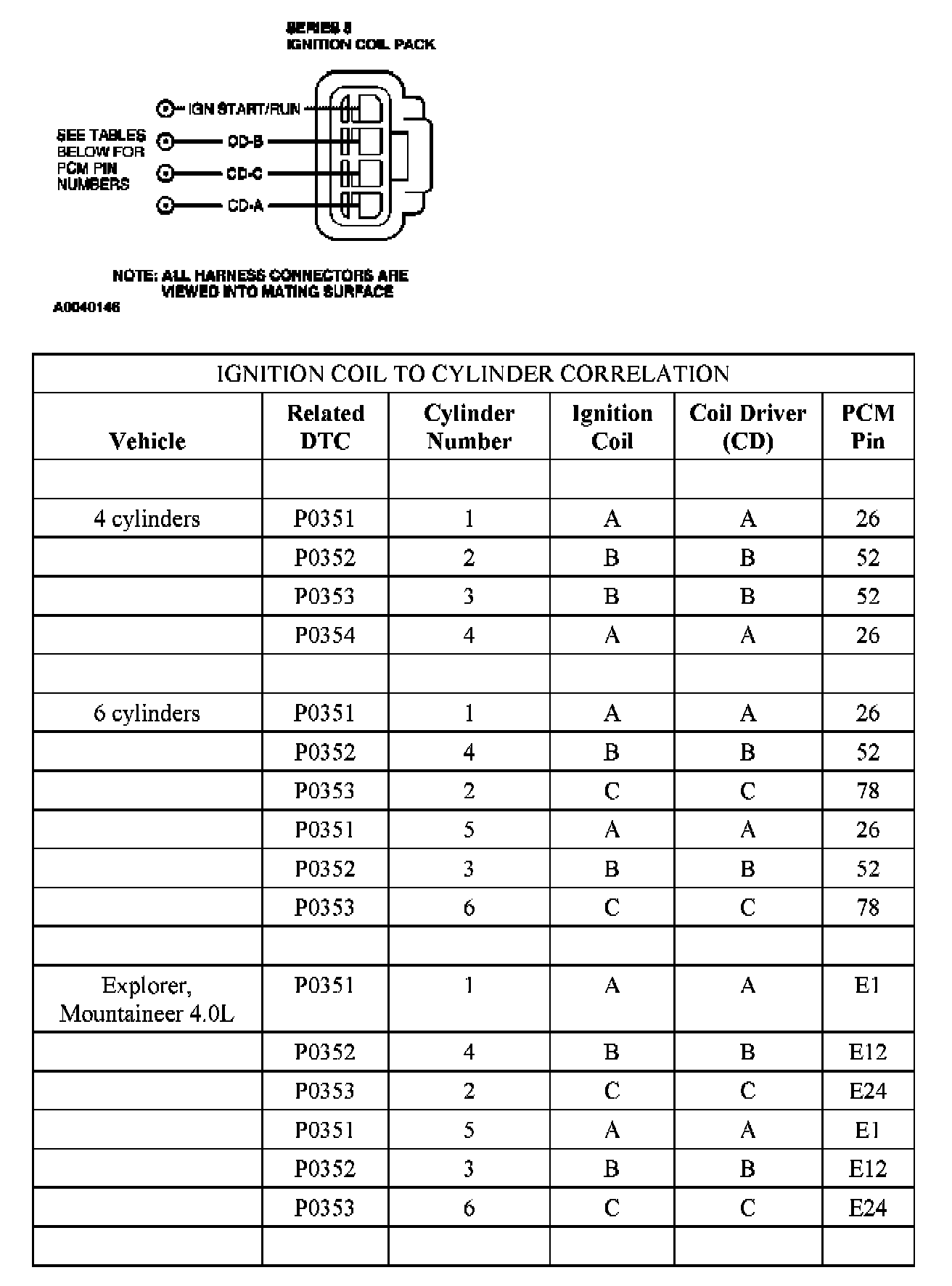

JE Introduction:
JE Introduction:
JE Introduction:

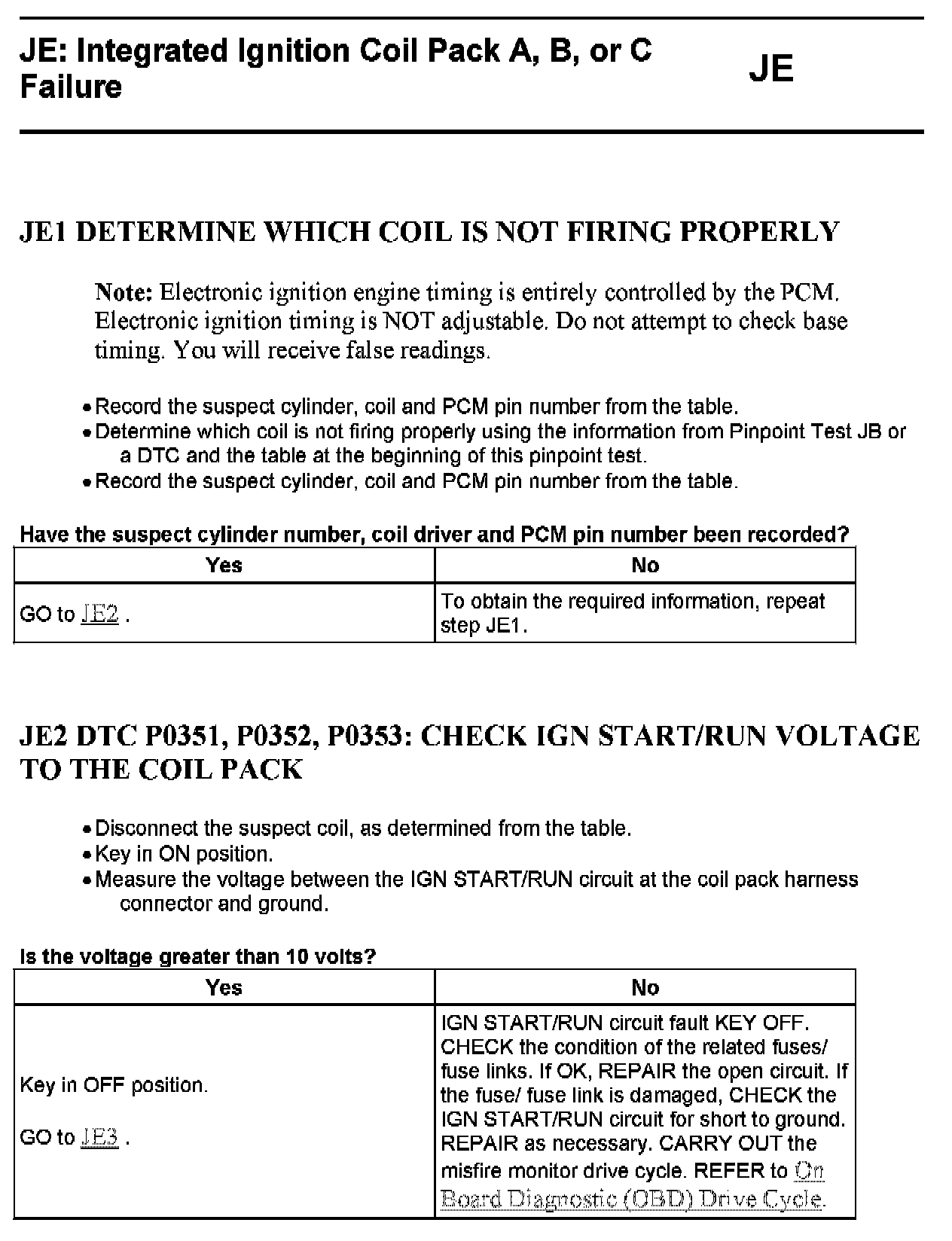

JE1 - JE2:

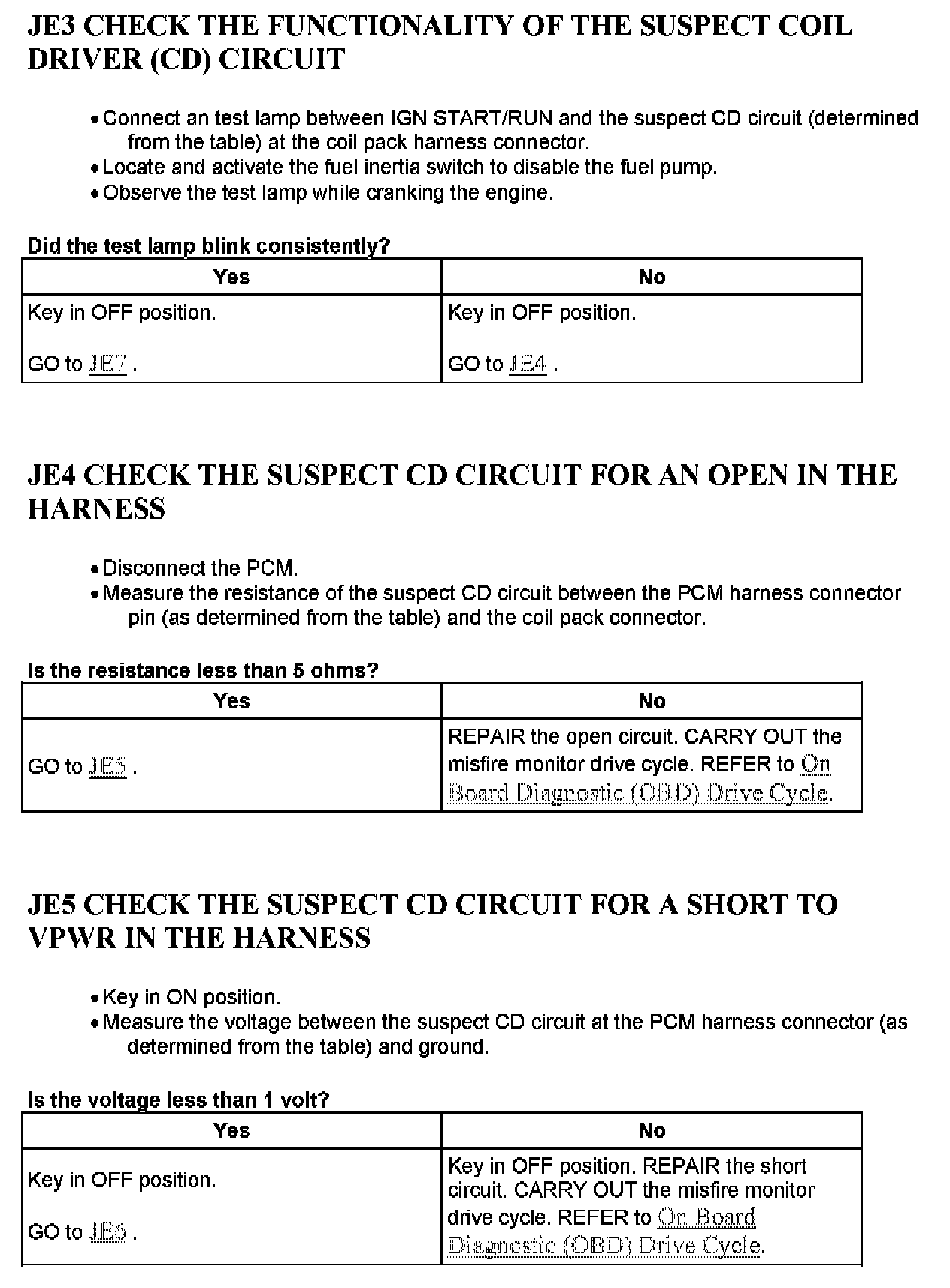

JE3 - JE5:

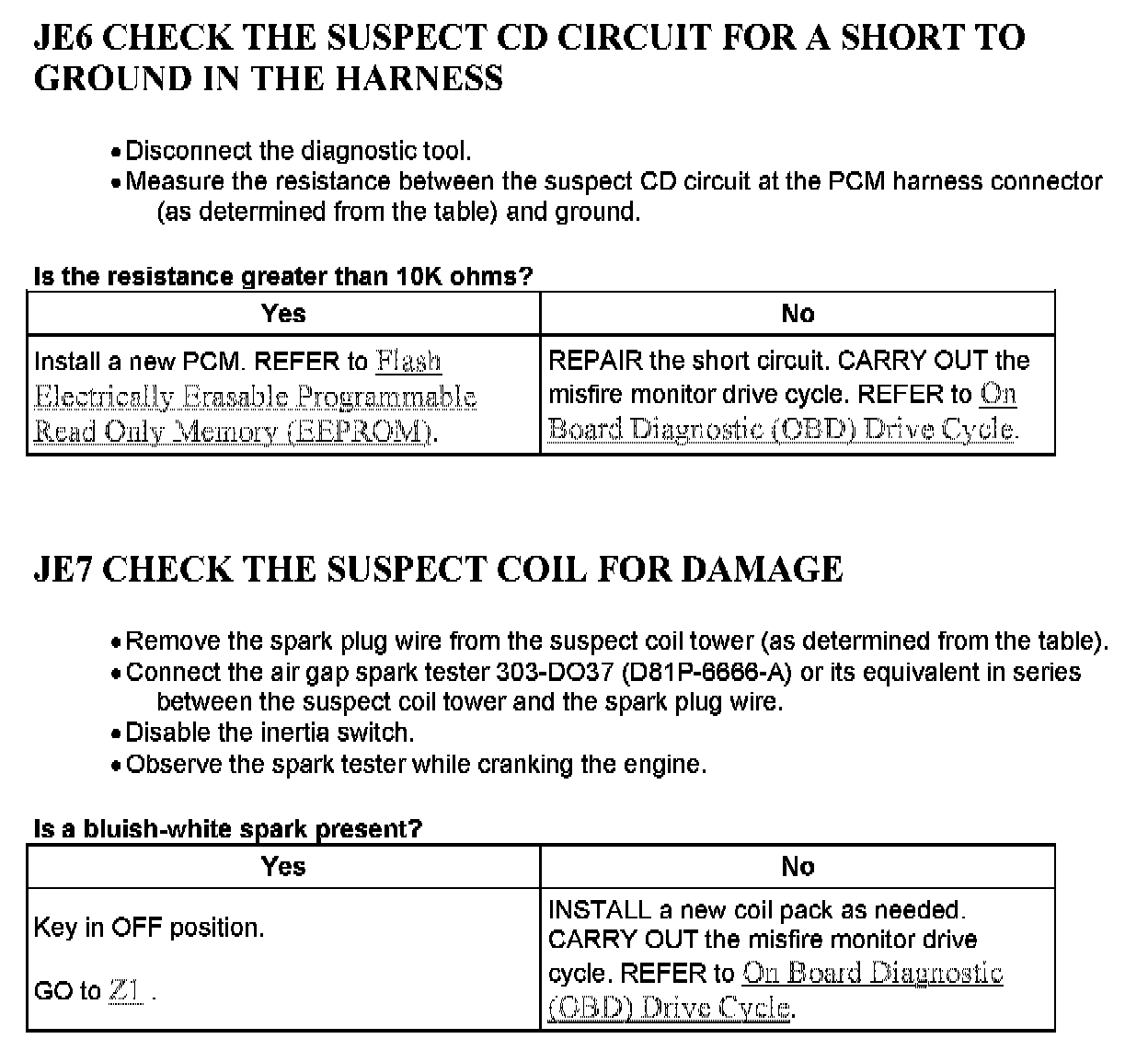

JE6 - JE7:
