FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2005
>>
Sable V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Tests DT: Power Steering Pressure (PSP) Sensor
Tests DT: Power Steering Pressure (PSP) Sensor
PINPOINT TEST DT: POWER STEERING PRESSURE (PSP) SENSOR

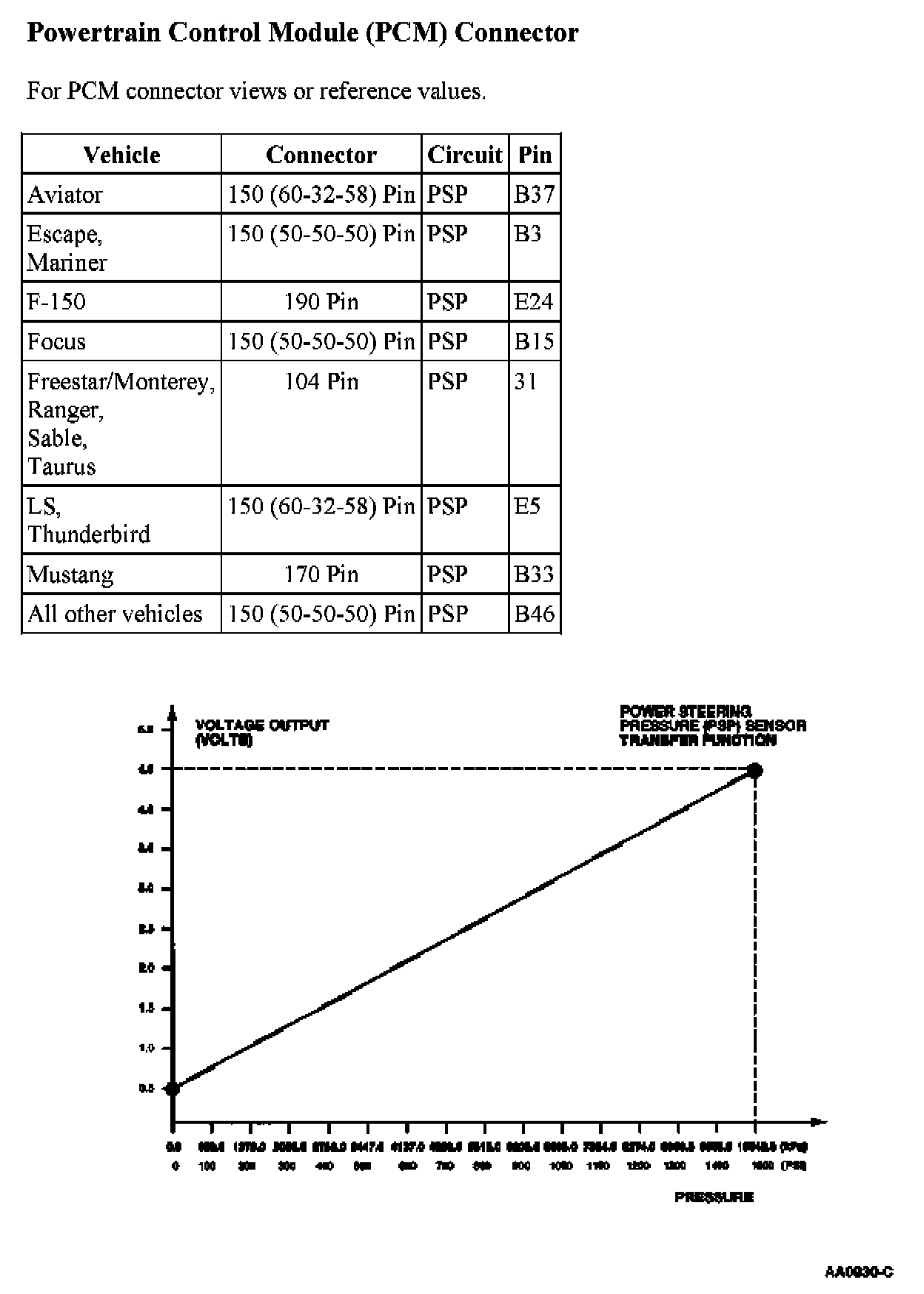

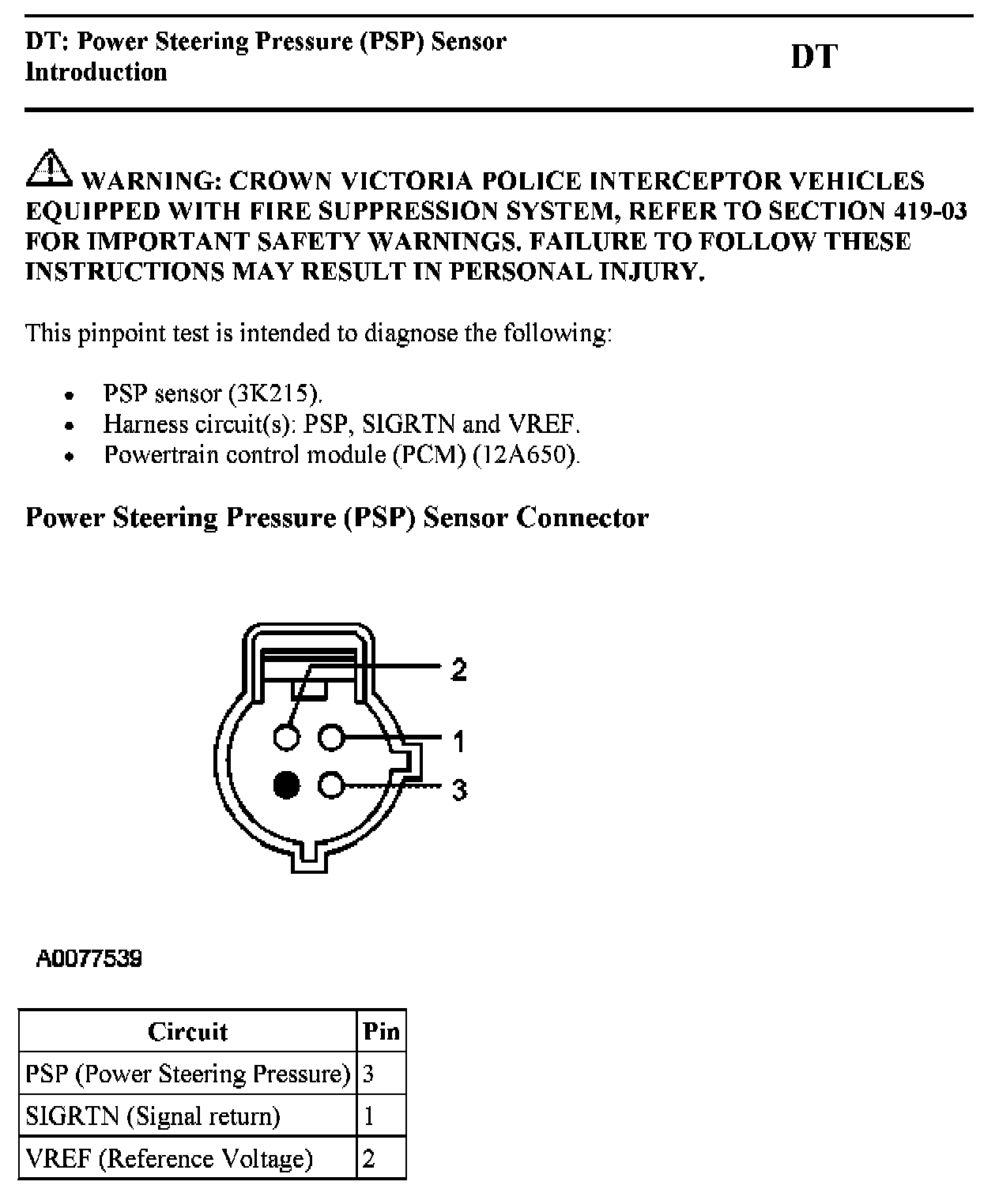

DT Introduction:
DT Introduction:

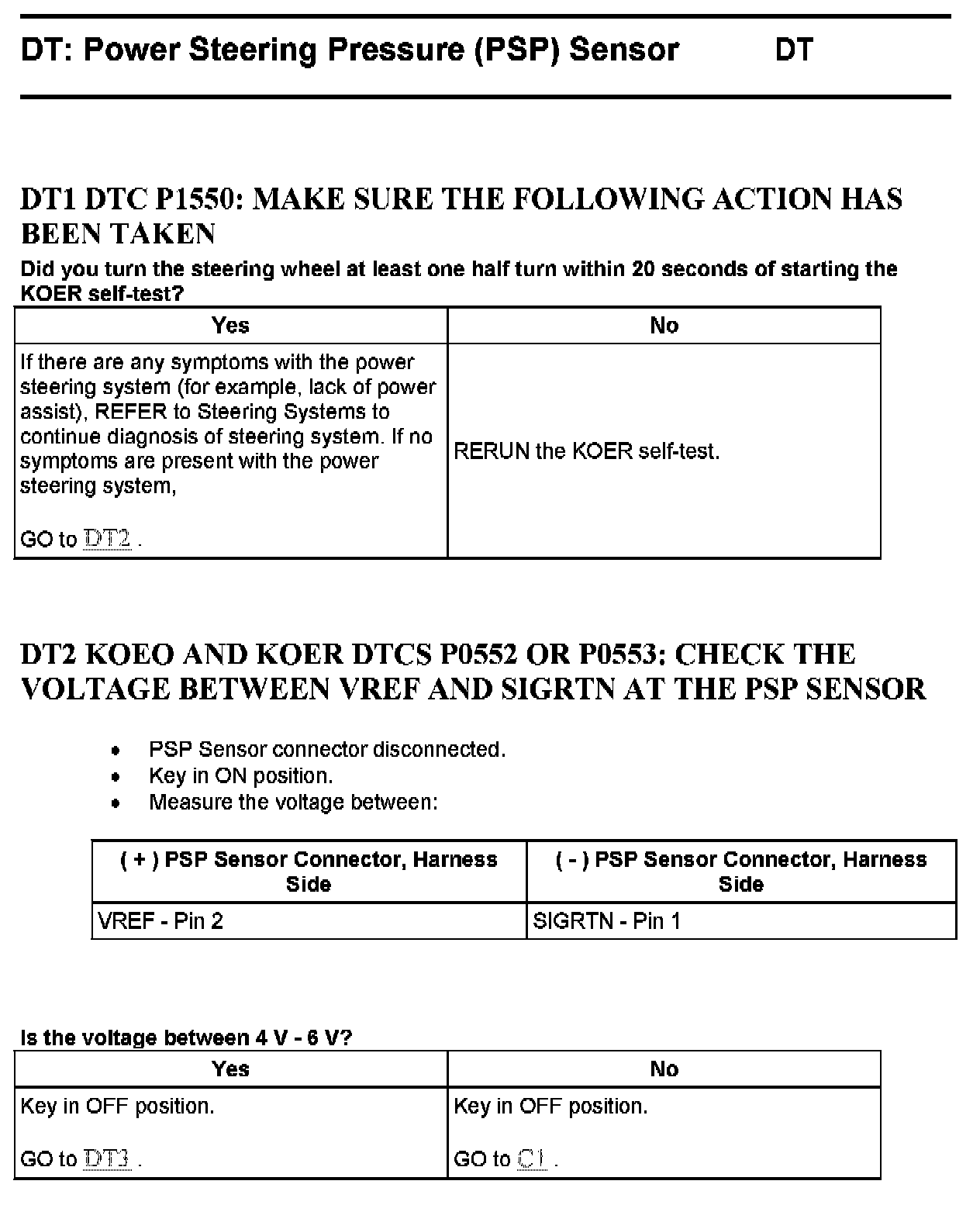

DT1 - DT2:

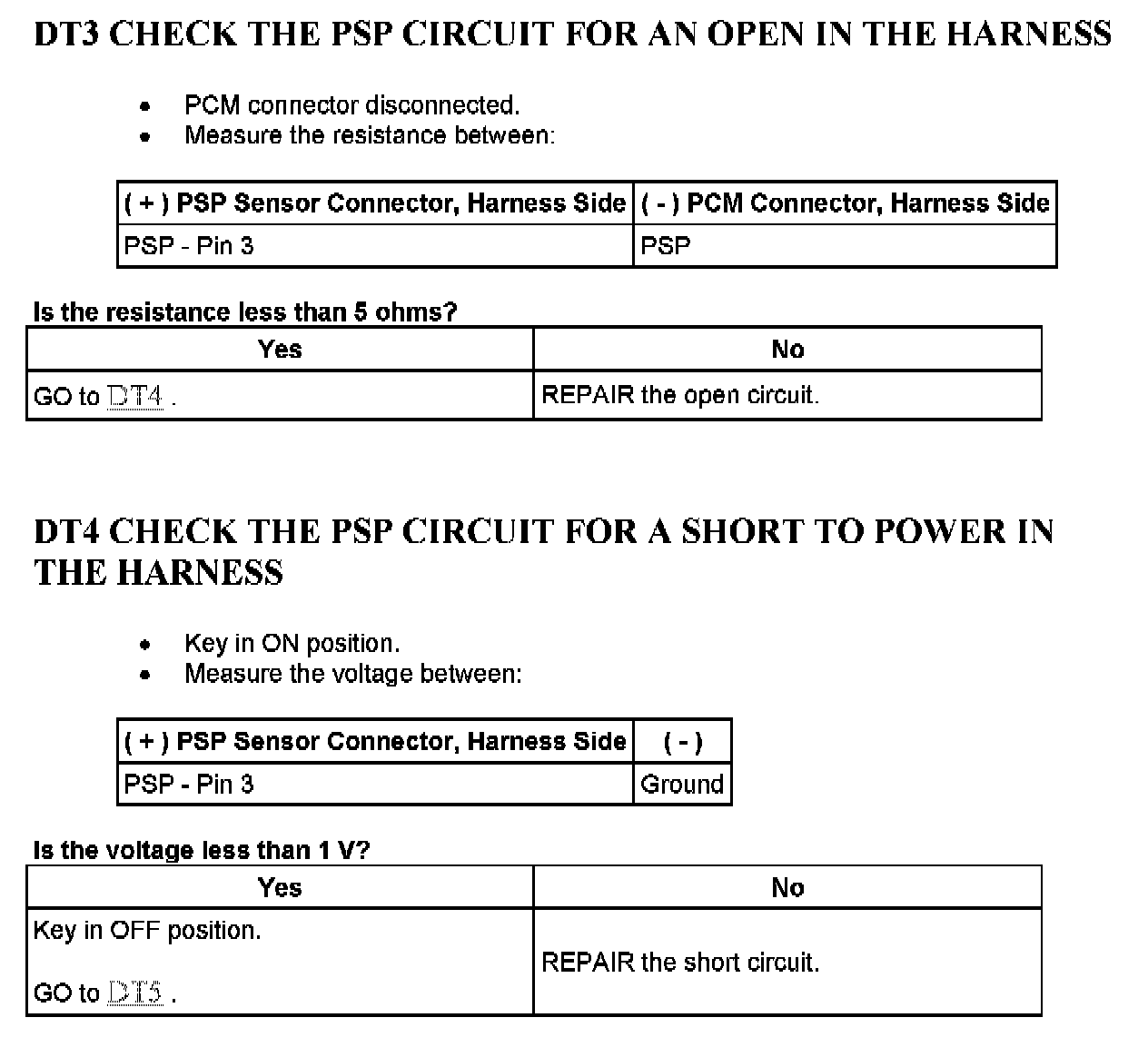

DT3 - DT4:

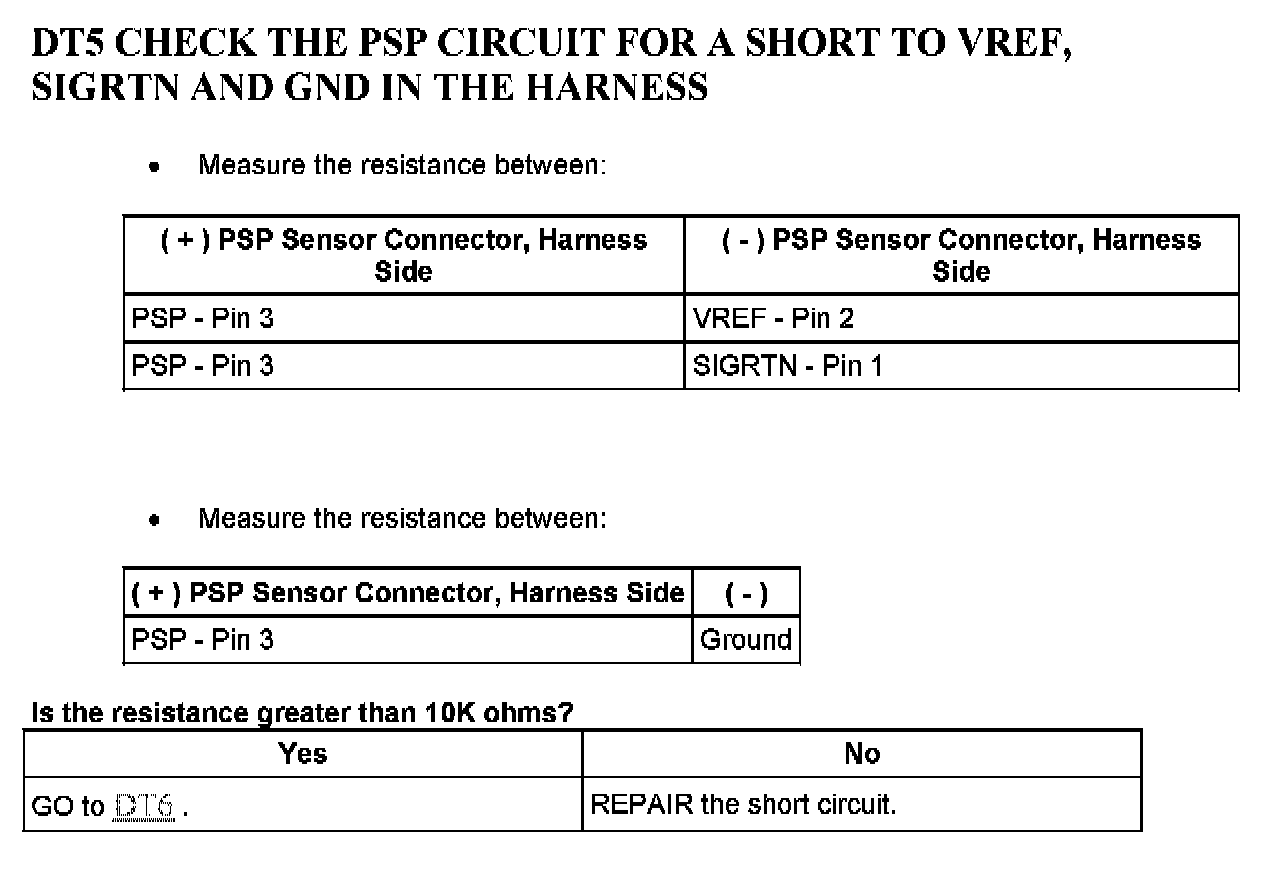

DT5:

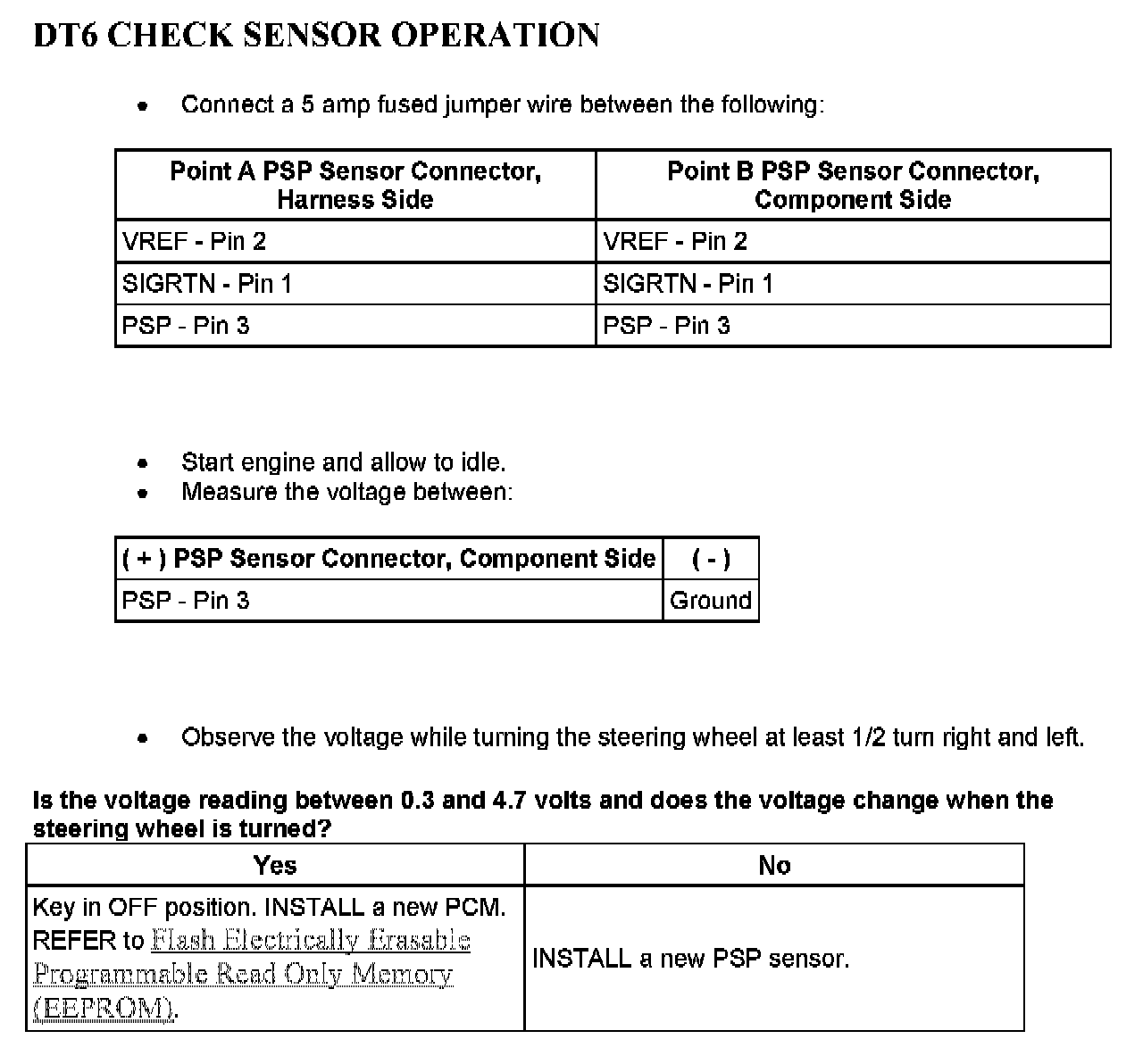

DT6:
DT7:
