Home >> Mercury >> 2005 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Tests DJ: Air Conditioner Evaporator Temperature (ACET) Sensor

Tests DJ: Air Conditioner Evaporator Temperature (ACET) Sensor



PINPOINT TEST DJ: AIR CONDITIONER EVAPORATOR TEMPERATURE (ACET) SENSOR

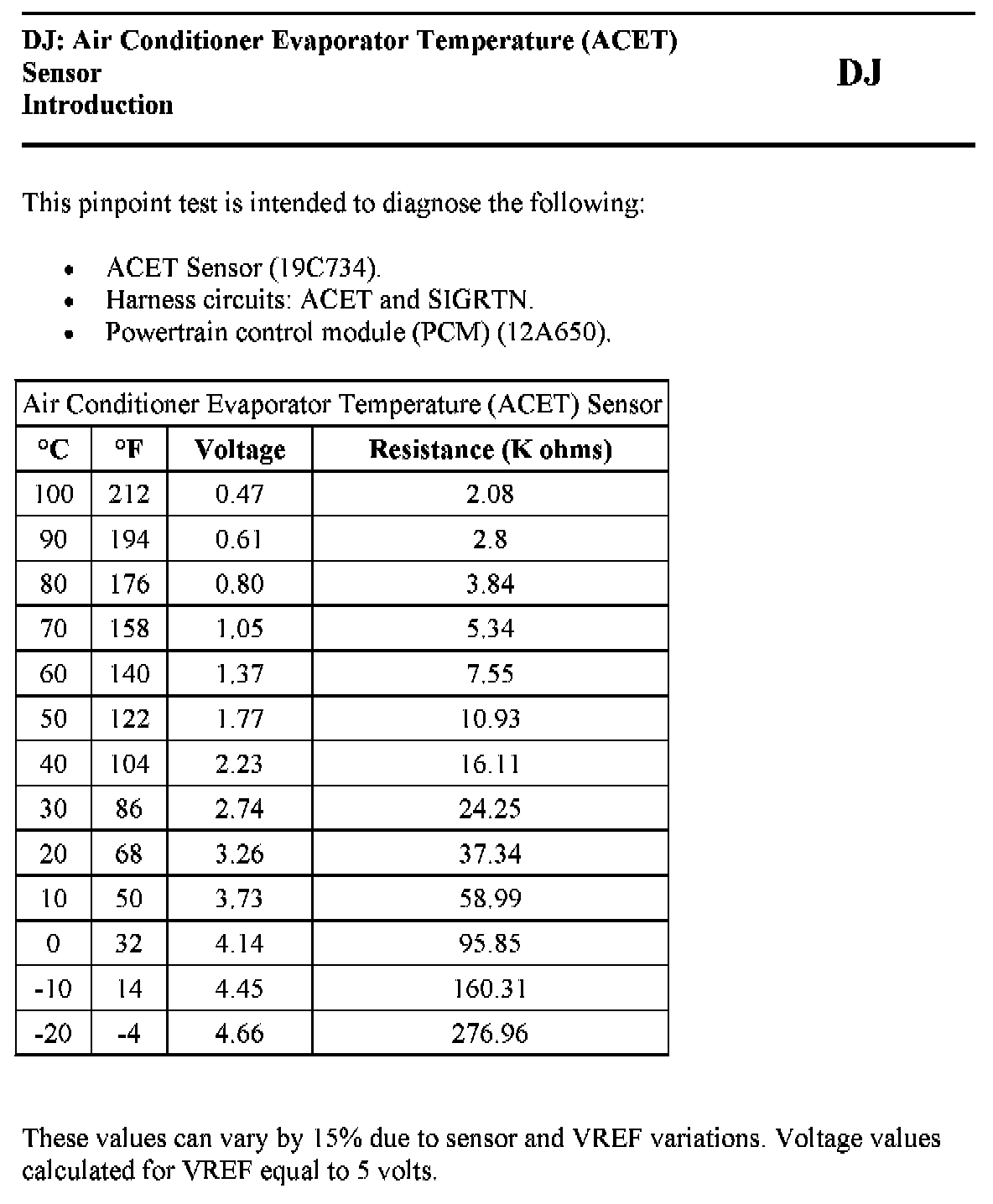

DJ Introduction:





DJ Introduction:





DJ Introduction:





DJ Introduction:

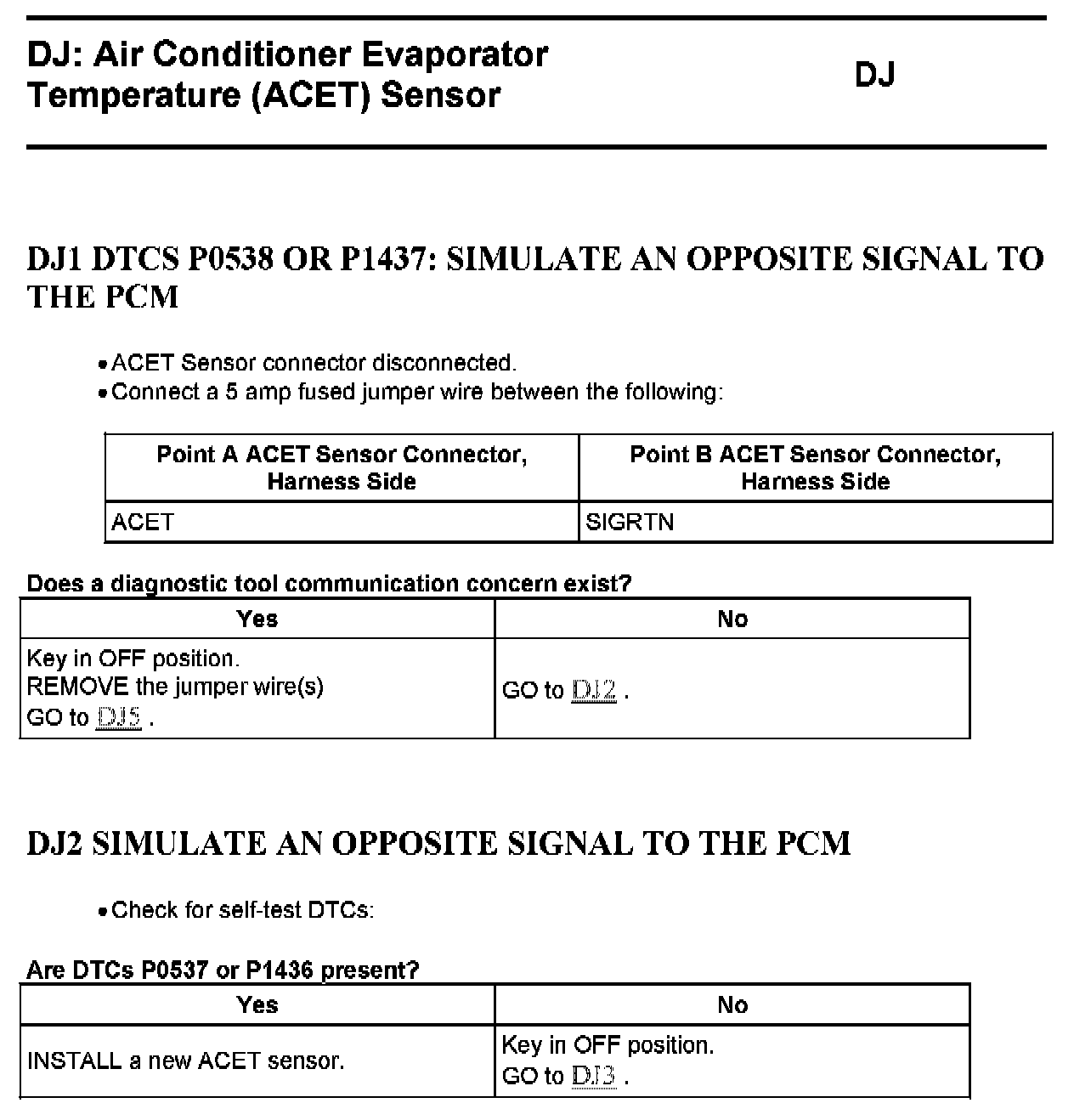

DJ1 - DJ2:

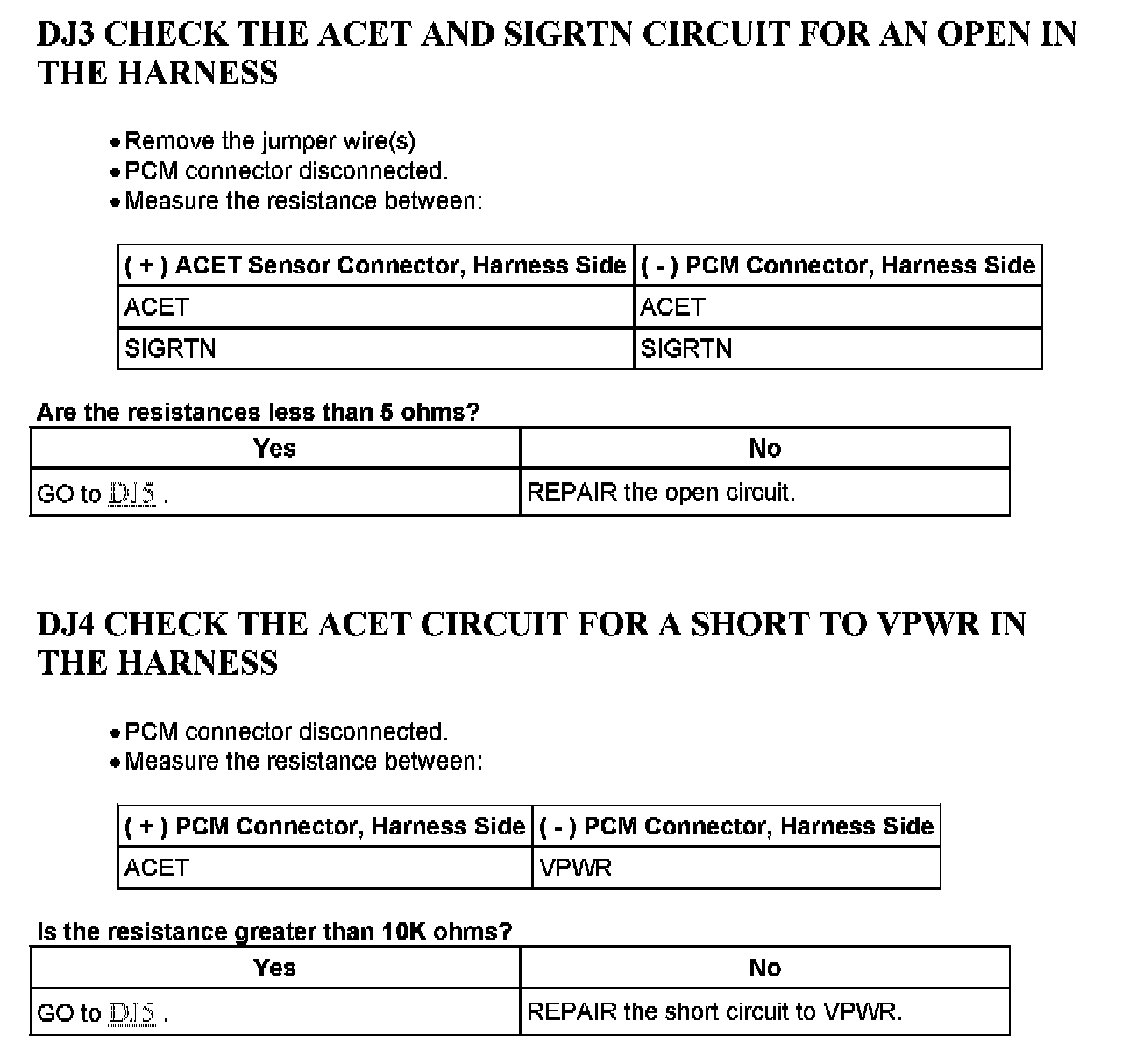

DJ3 - DJ4:





DJ5 - DJ7:

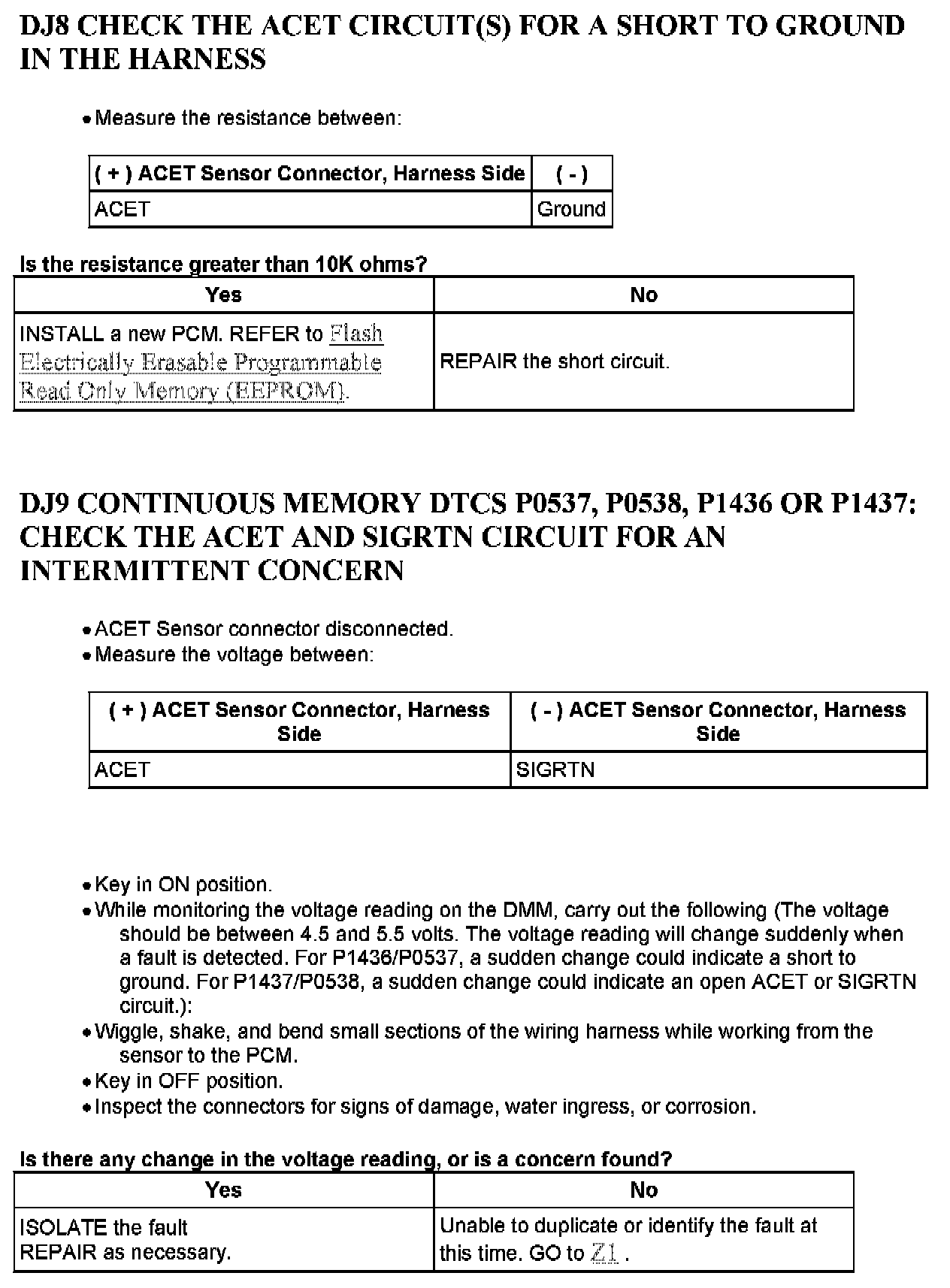

DJ8 - DJ9:
