Tests DA: Intake Air Temperature (IAT) Sensor



PINPOINT TEST DA: INTAKE AIR TEMPERATURE (IAT) SENSOR

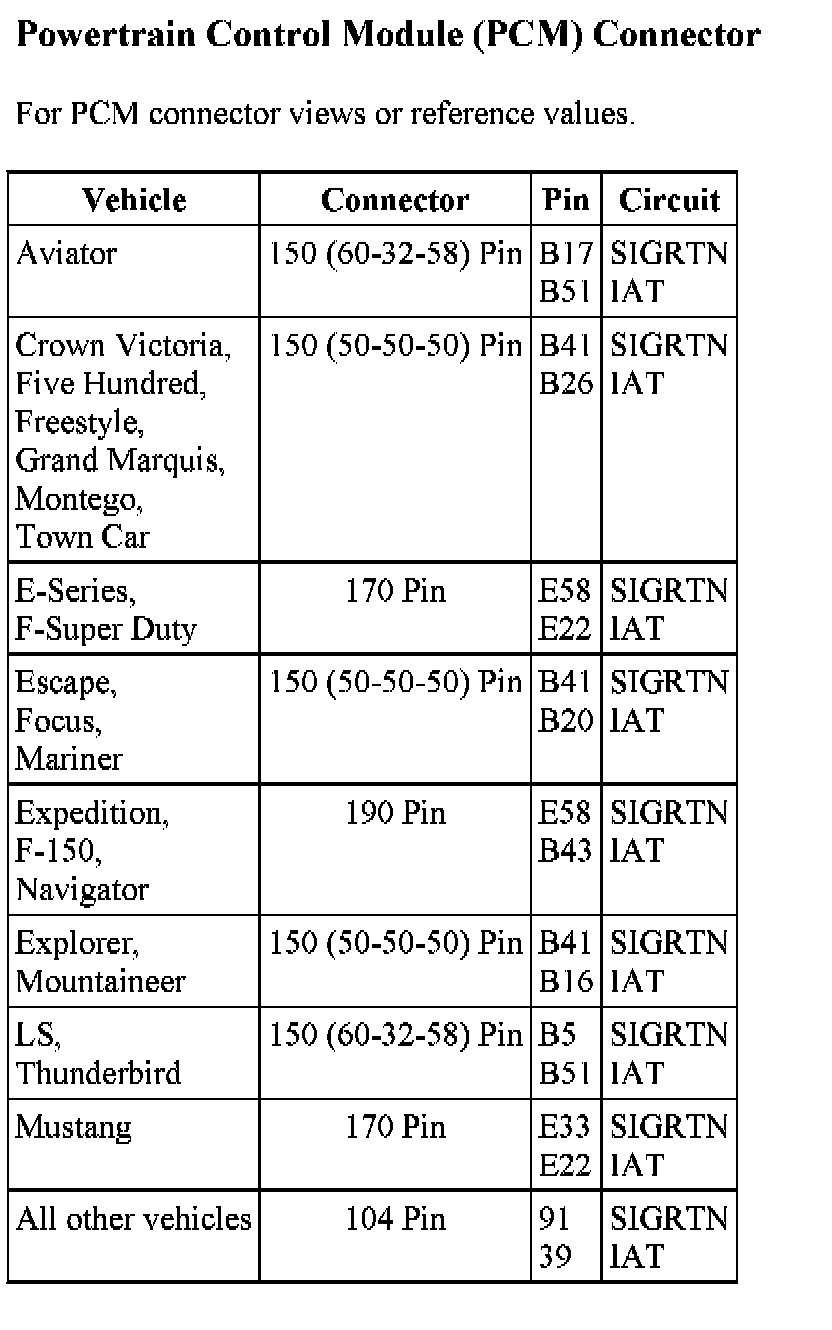

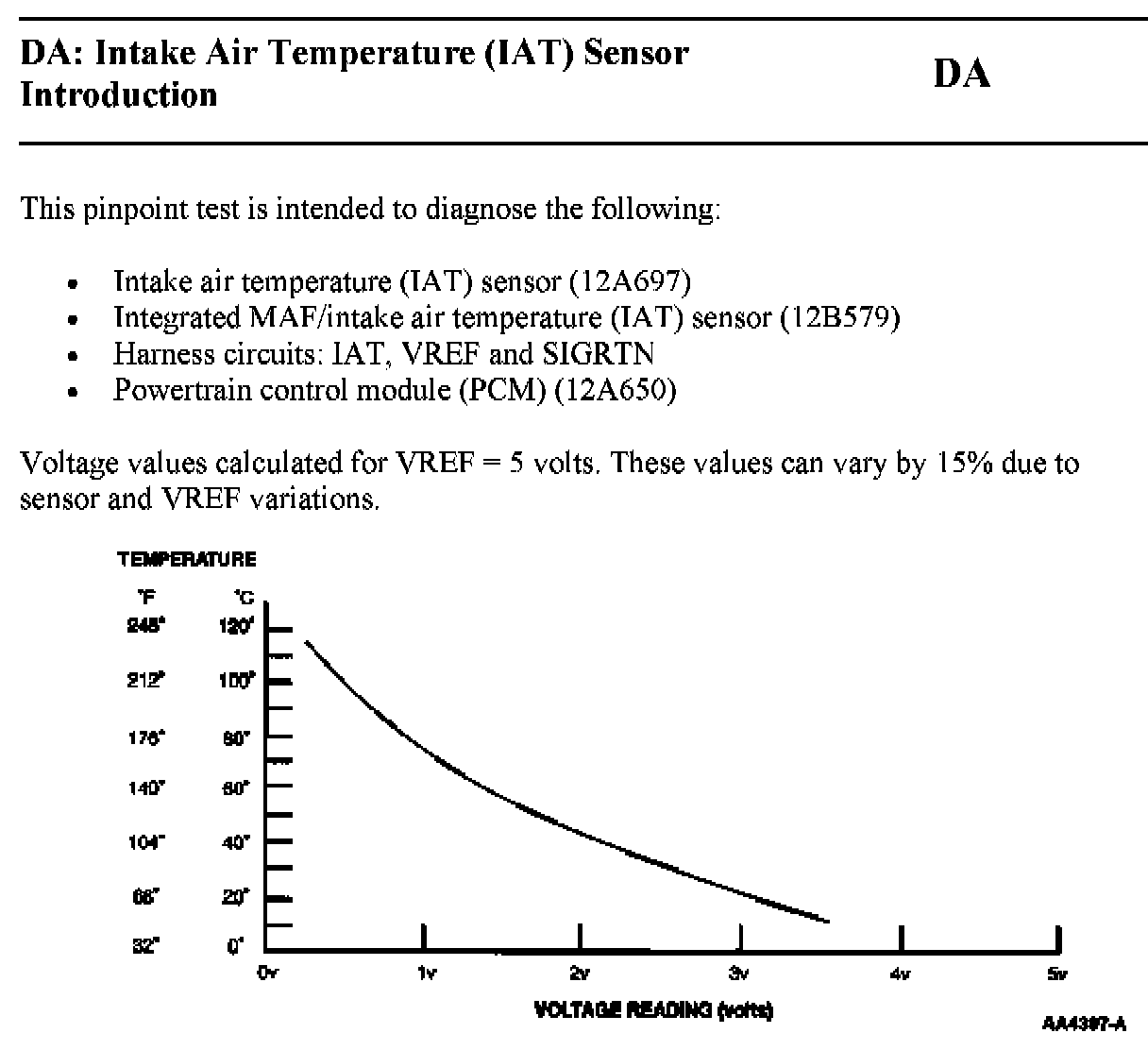

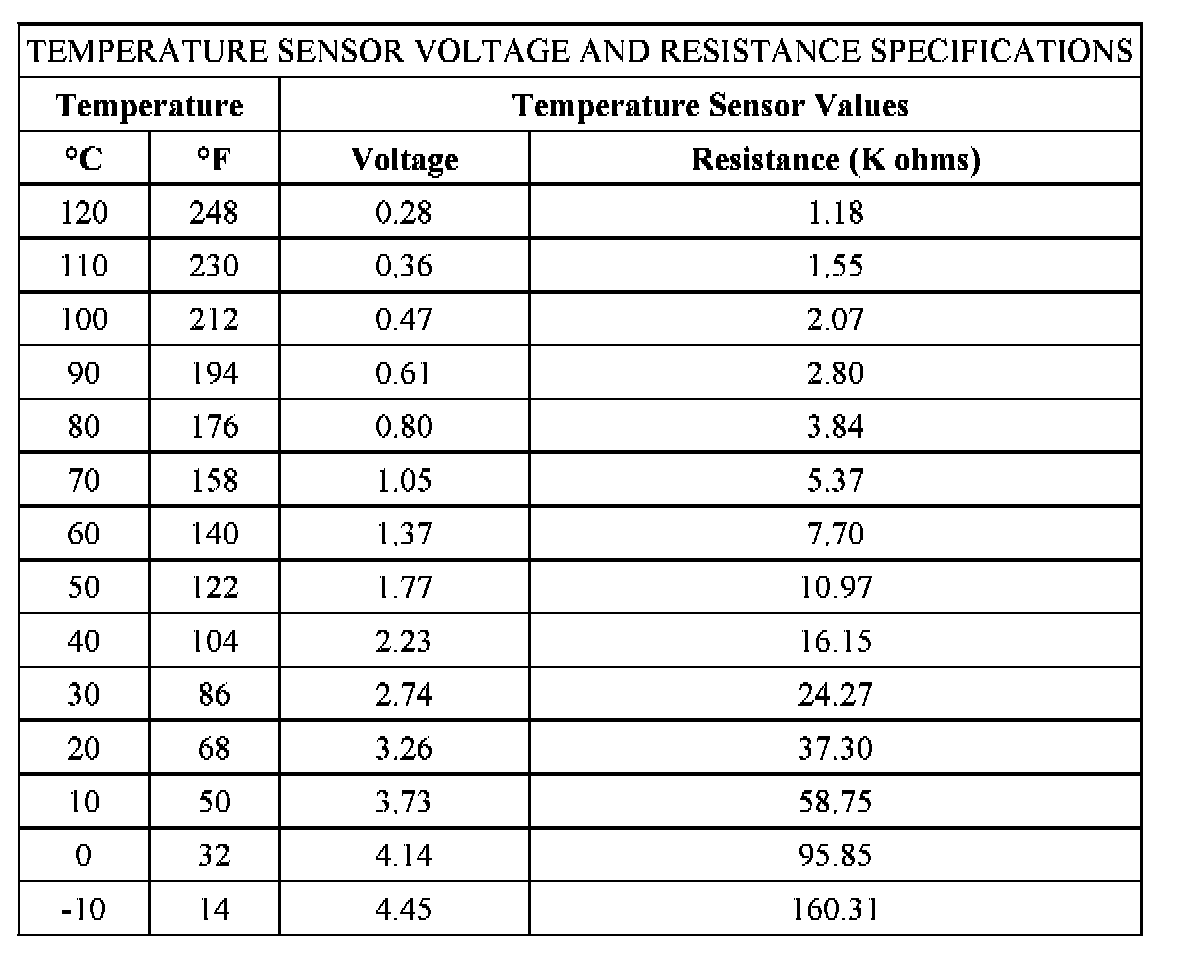

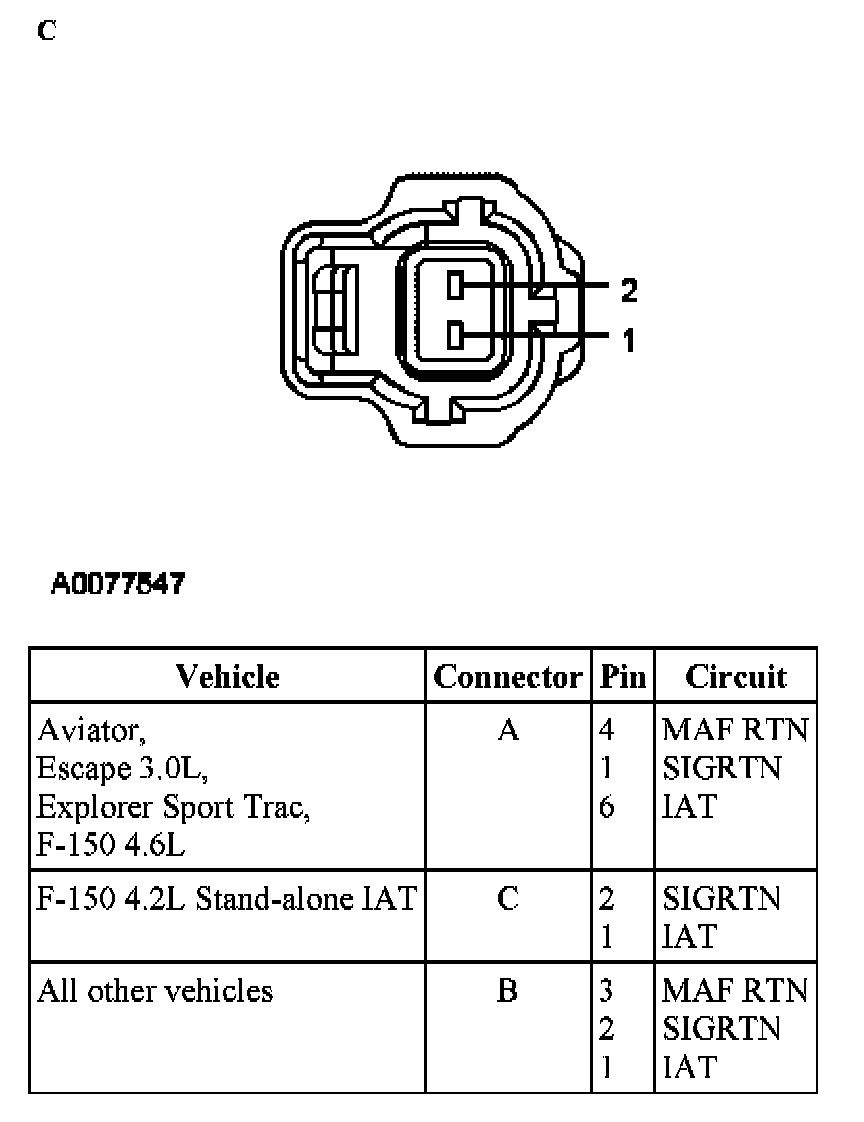

DA Introduction:





DA Introduction:





DA Introduction:





DA Introduction:





DA Introduction:

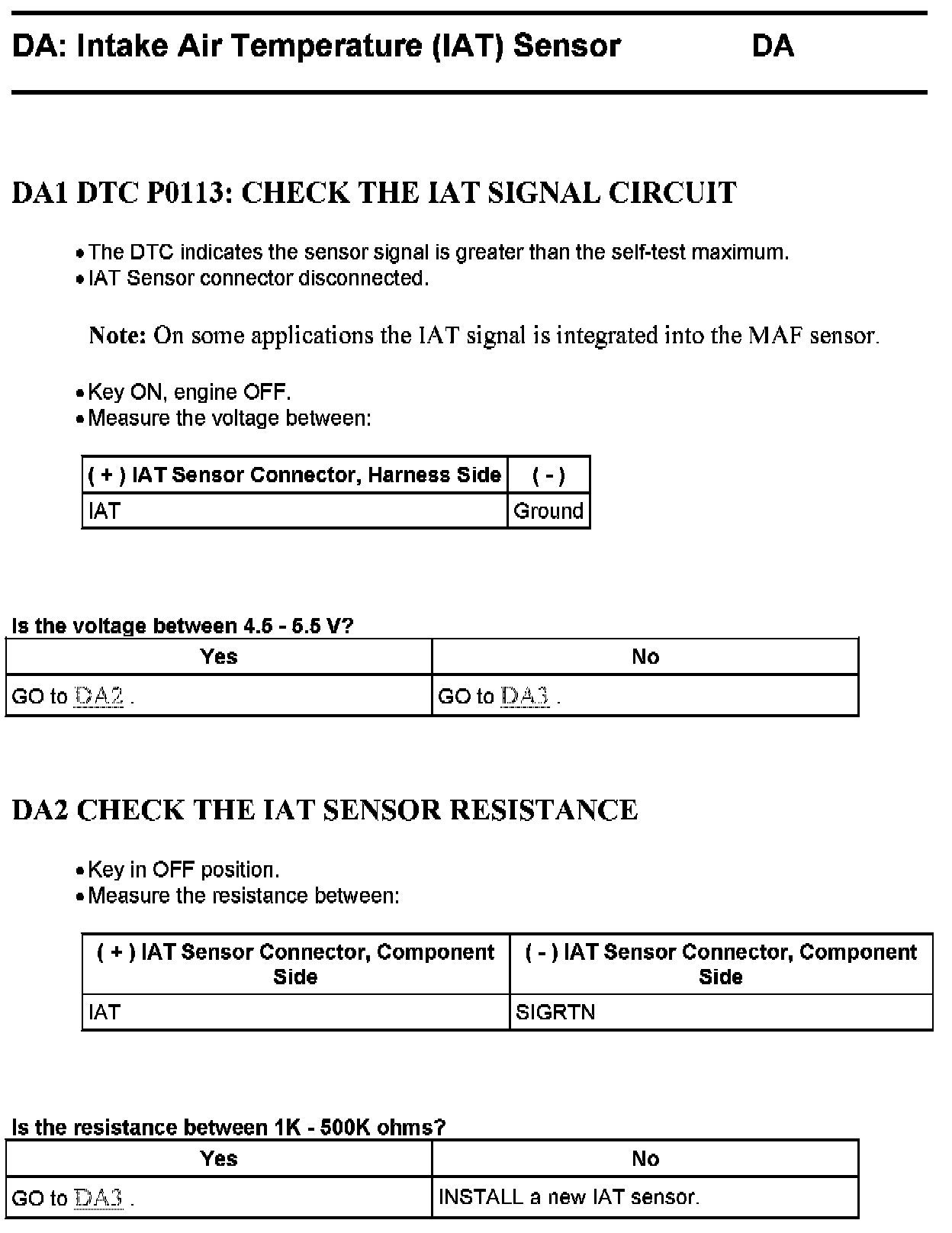

DA1 - DA2:

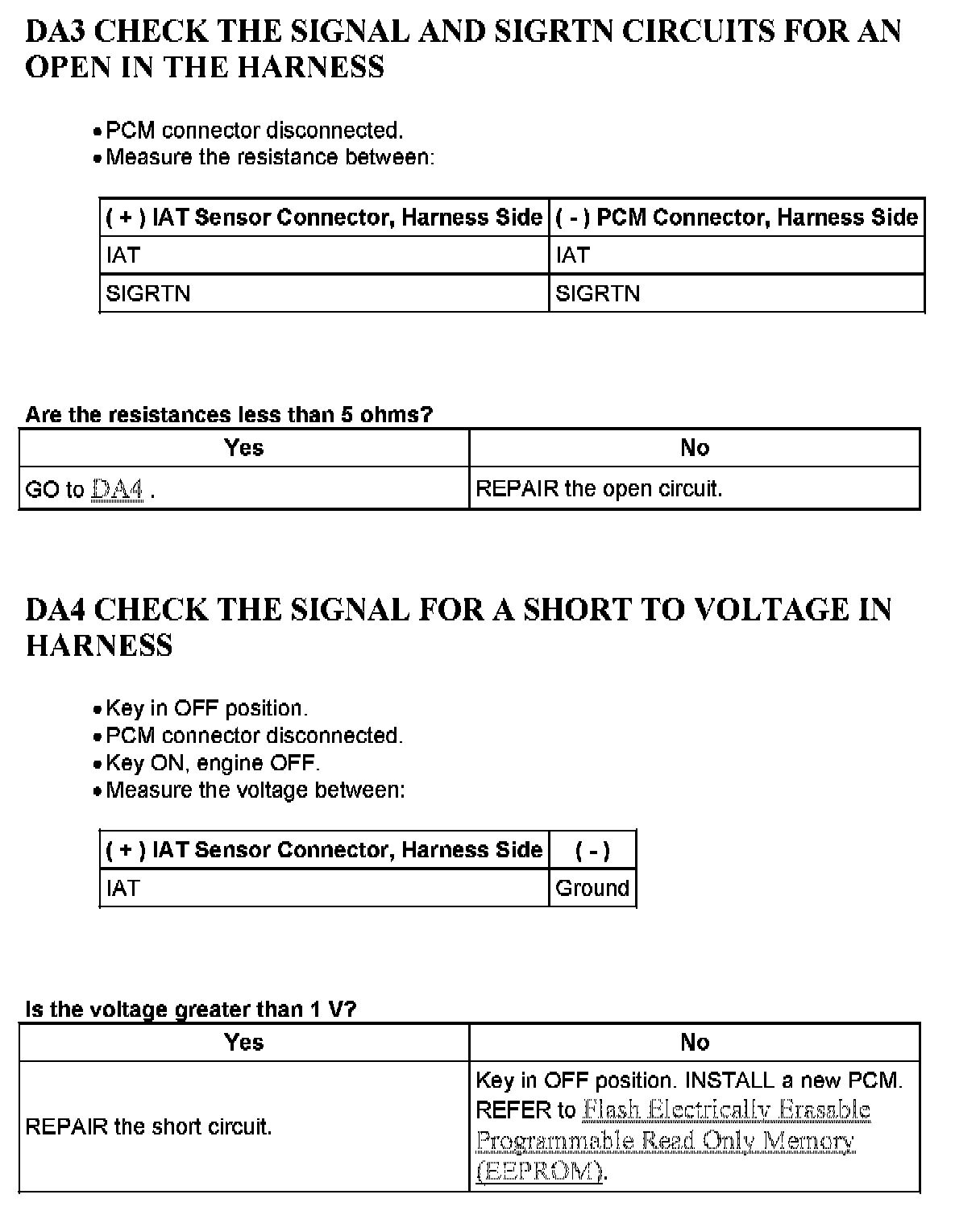

DA3 - DA4:

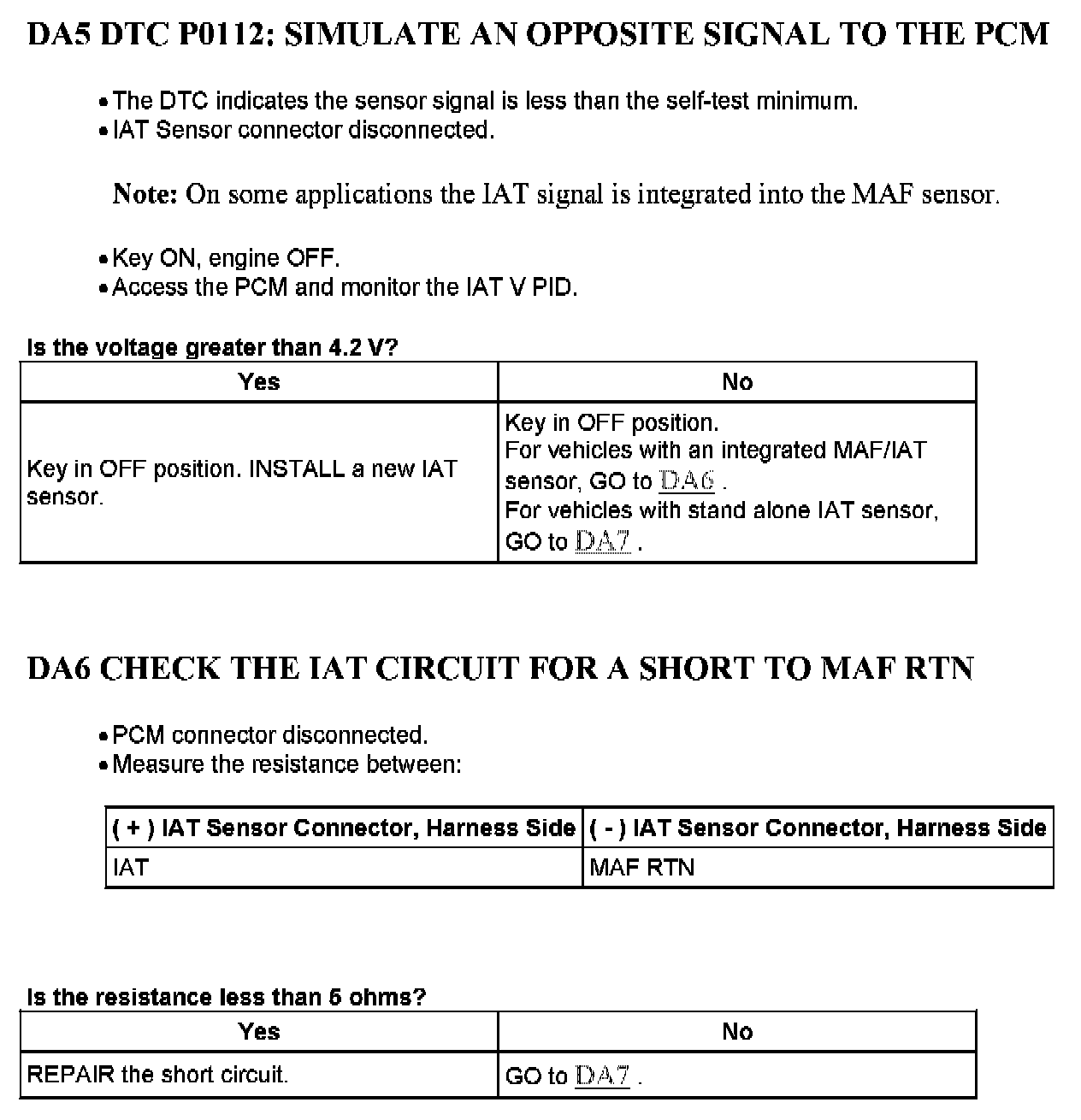

DA5 - DA6:

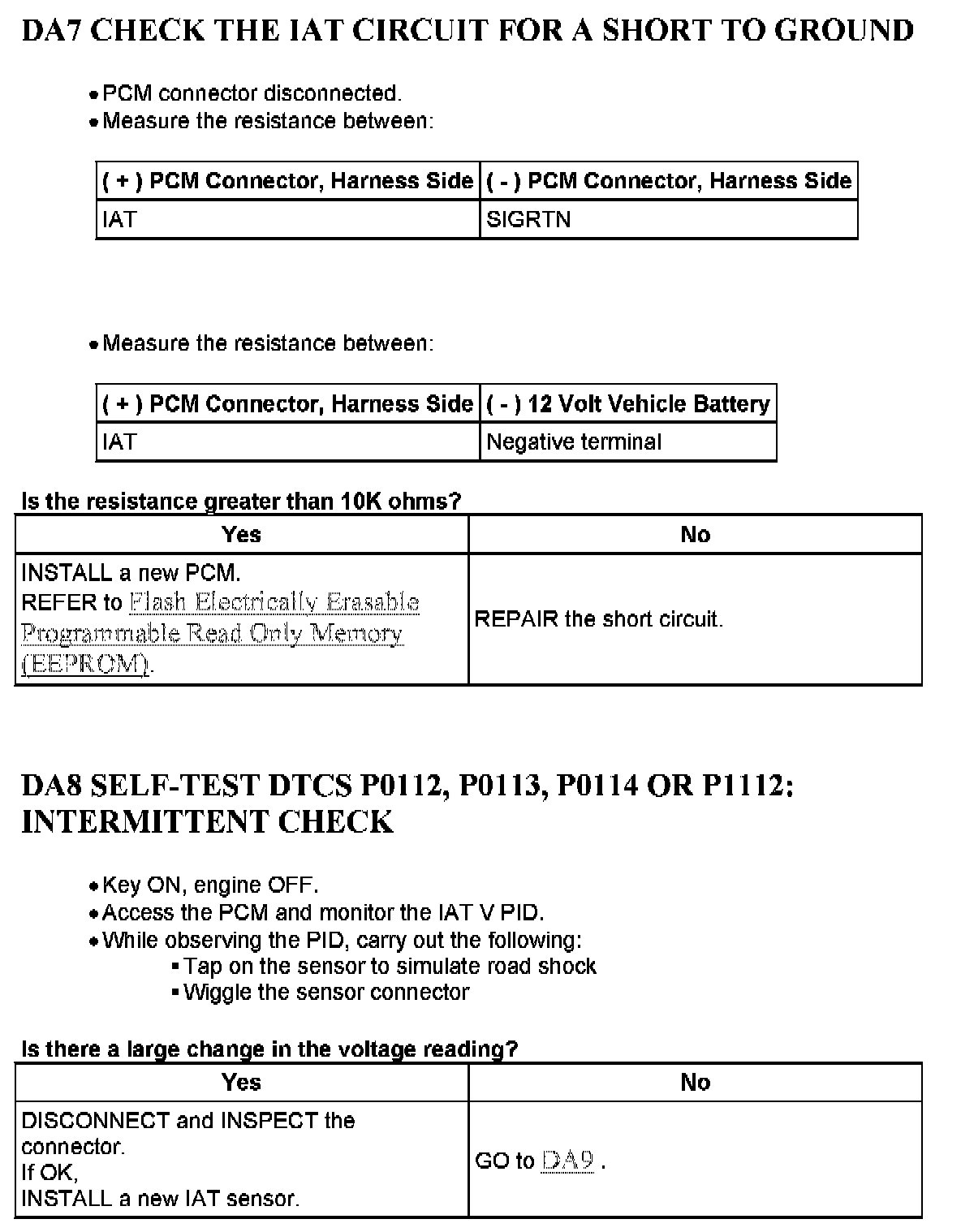

DA7 - DA8:

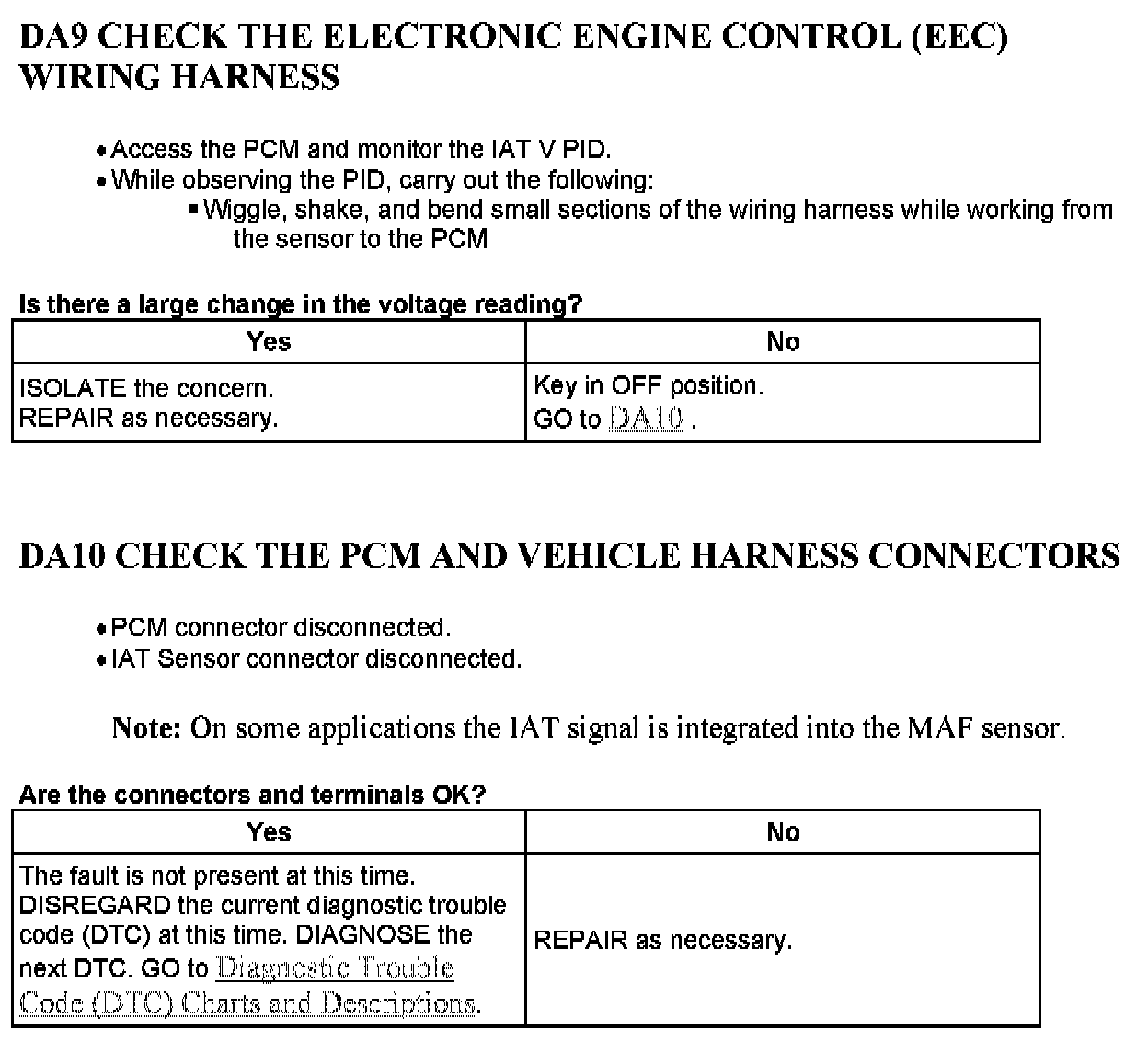

DA9 - DA10:
