Test I: No Module/Network Communication
Test I: No Module/Network Communication

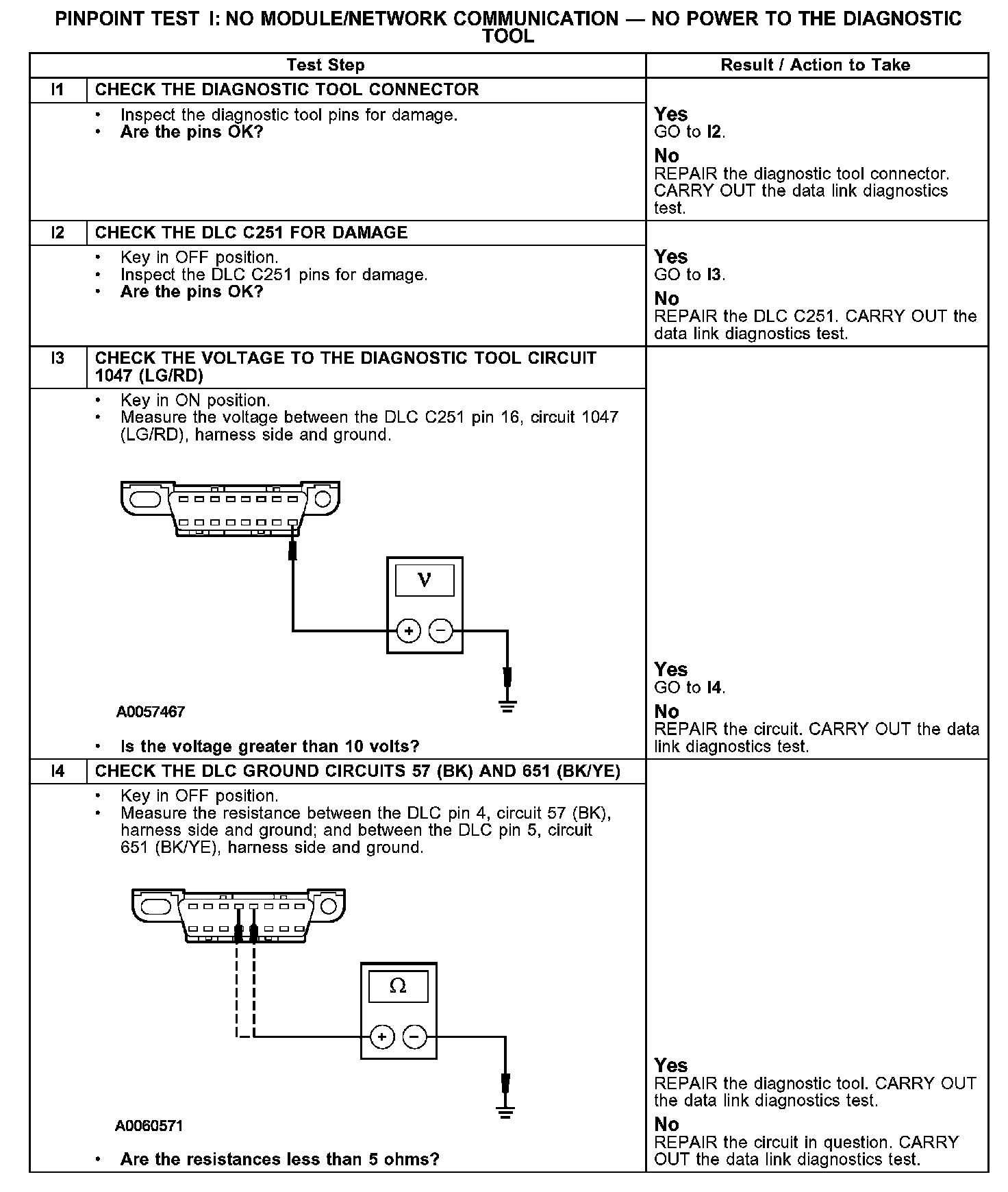

PINPOINT TEST I: NO MODULE/NETWORK COMMUNICATION NO POWER TO THE DIAGNOSTIC TOOL
Test I1-I4:
