Test F: No Medium Speed Controller Area Network (CAN) Communication

PINPOINT TEST F: NO MEDIUM SPEED CONTROLLER AREA NETWORK (CAN) COMMUNICATION

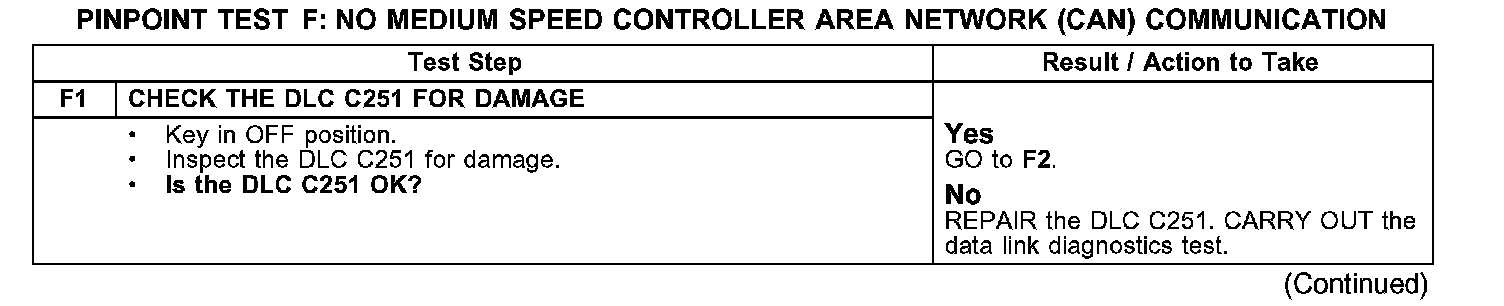

Test F1:

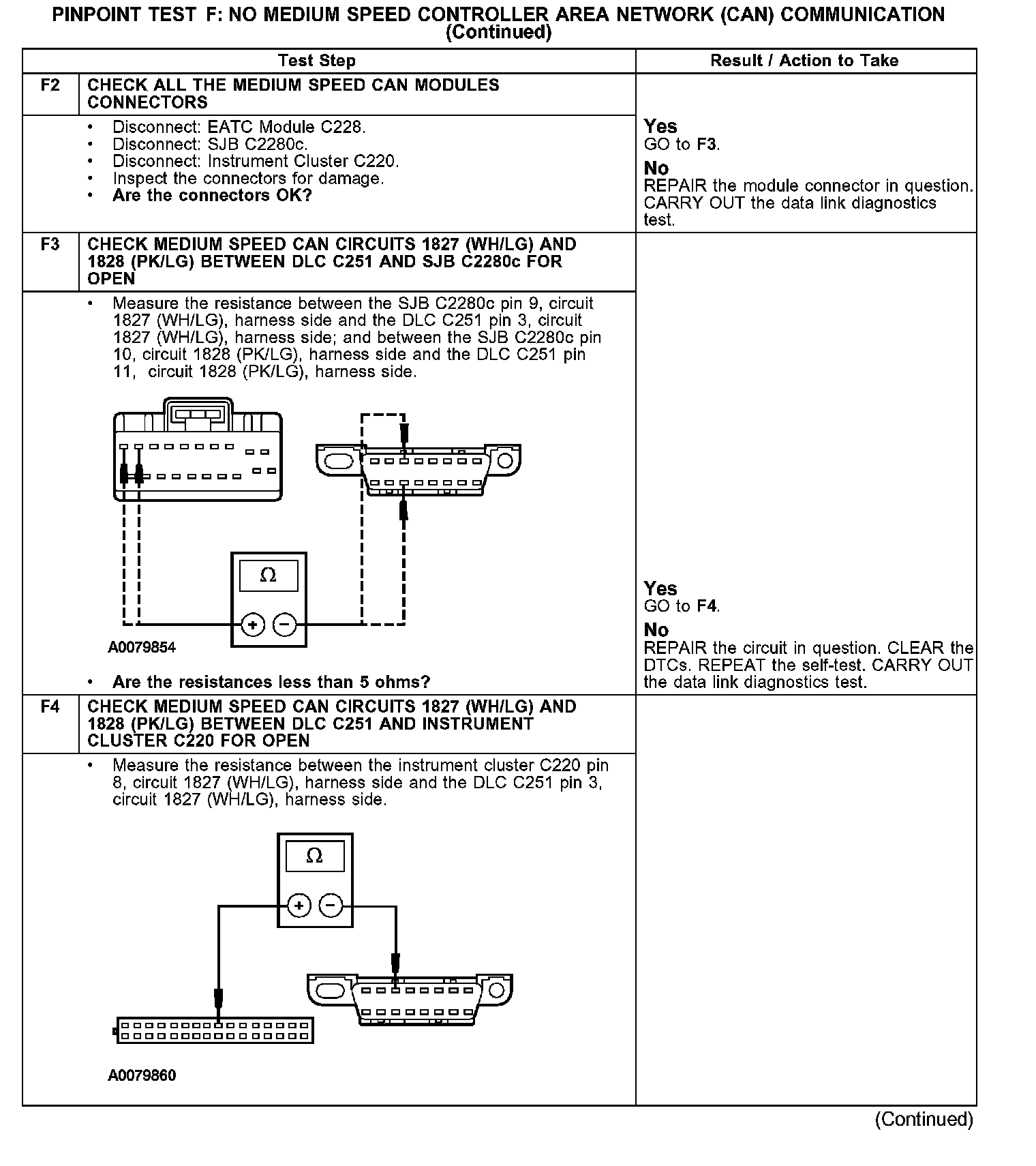

Test F2-F4:






Test F4-F6:

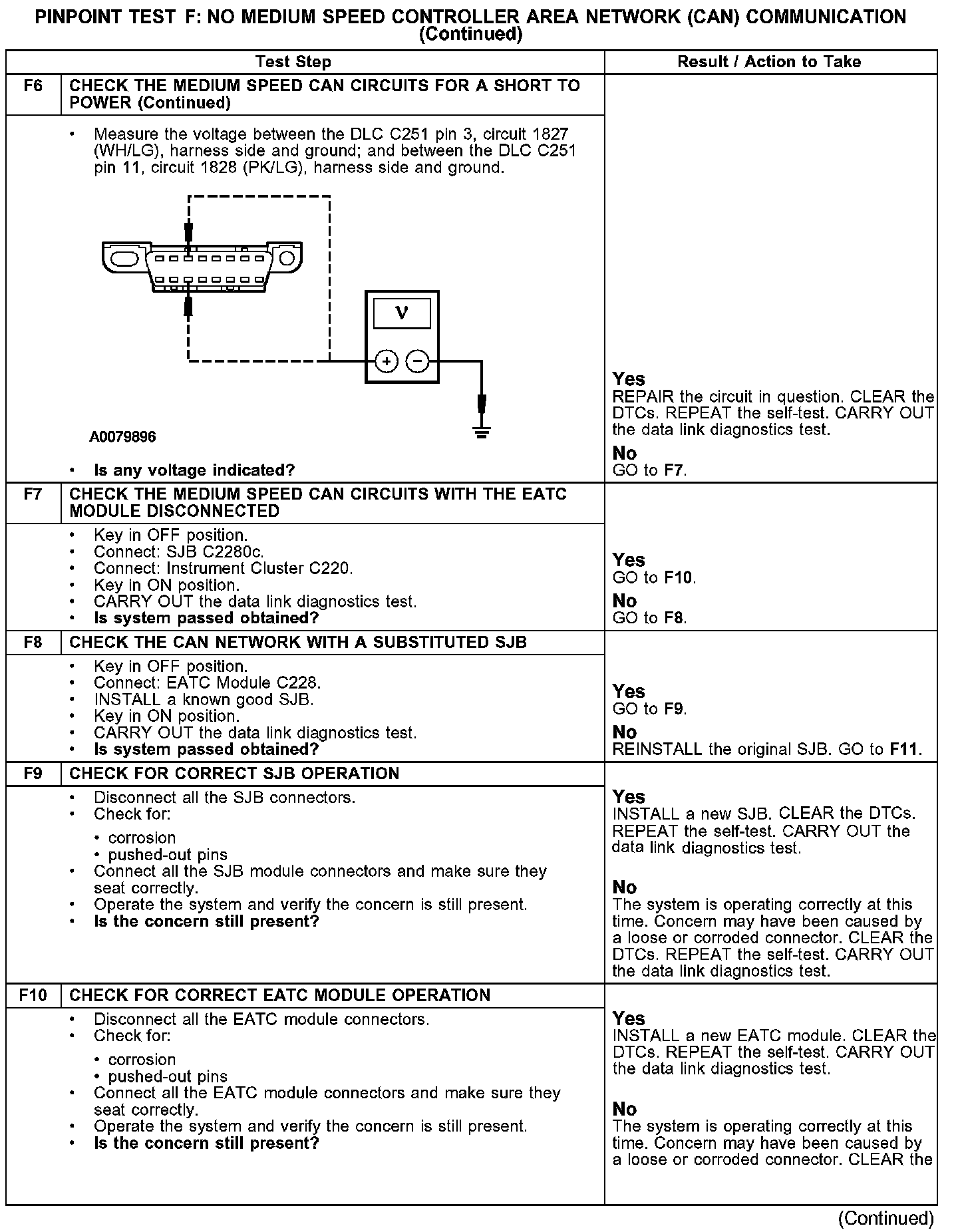

Test F6-F10:

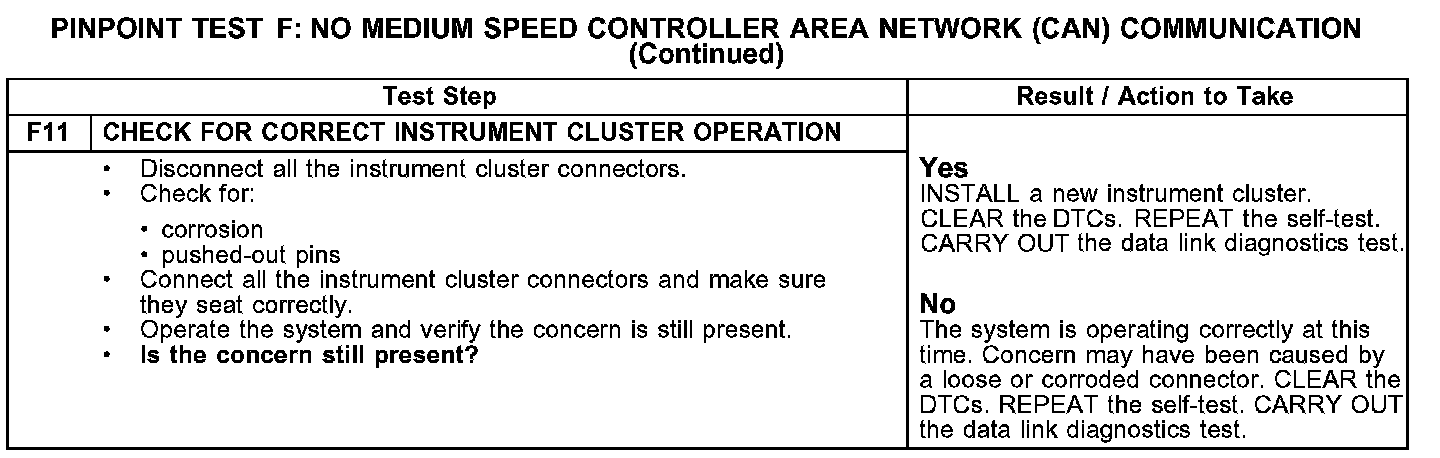

Test F11:
