Test E: The Instrument Cluster Does Not Respond to the Diagnostic Tool
Test E: The Instrument Cluster Does Not Respond to the Diagnostic Tool
PINPOINT TEST E: THE INSTRUMENT CLUSTER DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

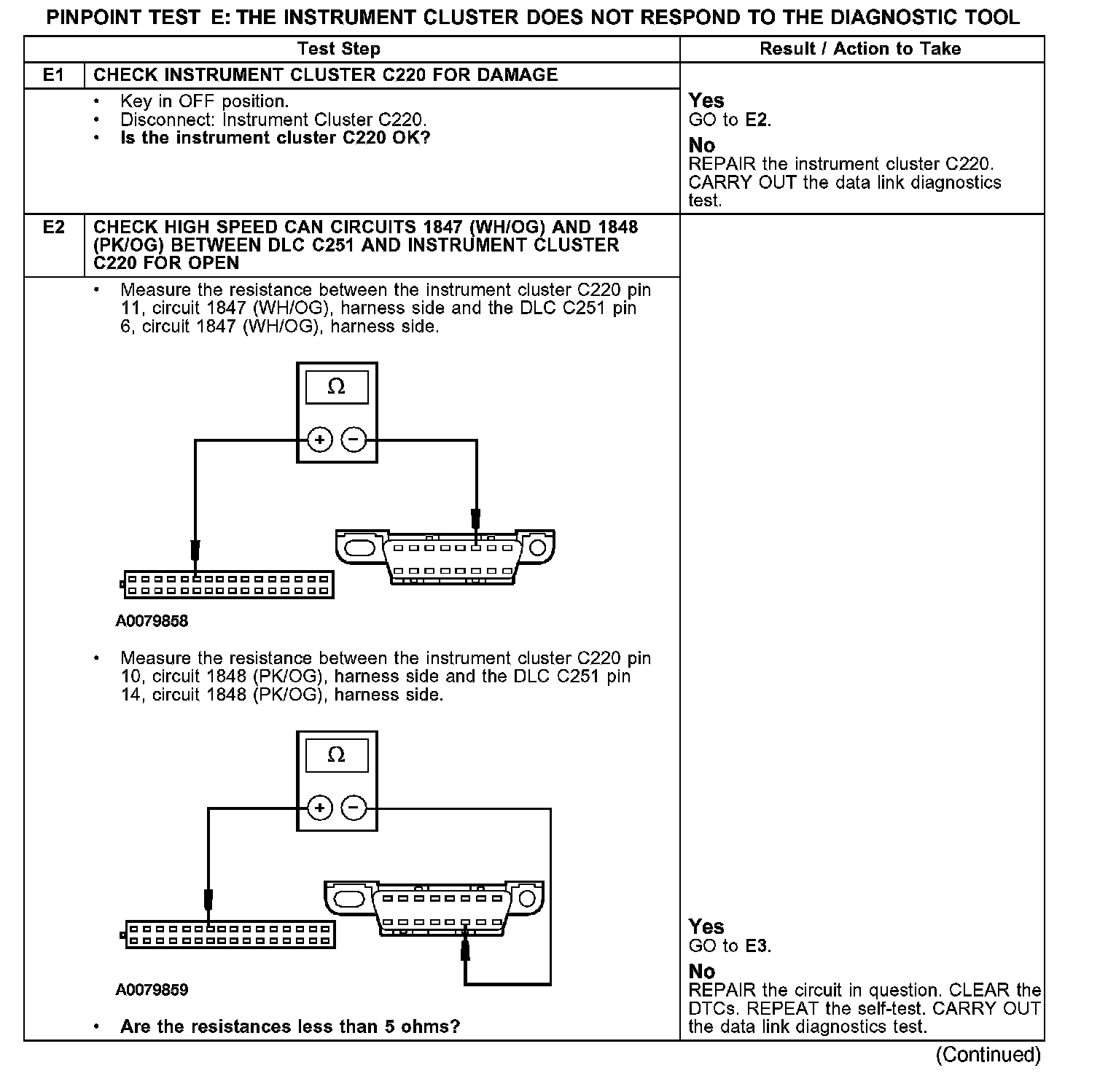

Test E1-E2:

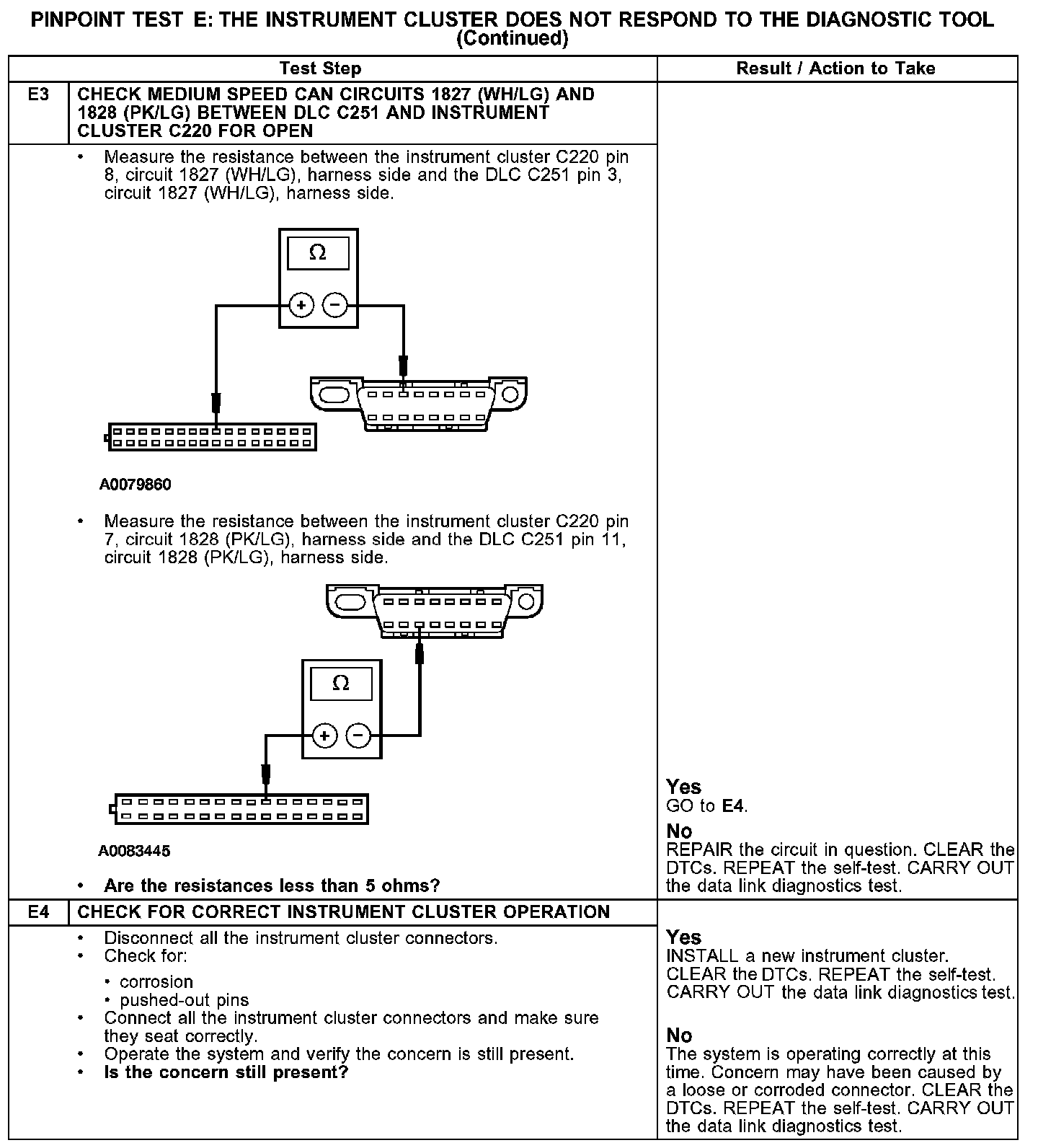

Test E3-E4:
