Test D: The Powertrain Control Module (PCM) Does Not Respond to the Diagnostic Tool

PINPOINT TEST D: THE POWERTRAIN CONTROL MODULE (PCM) DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

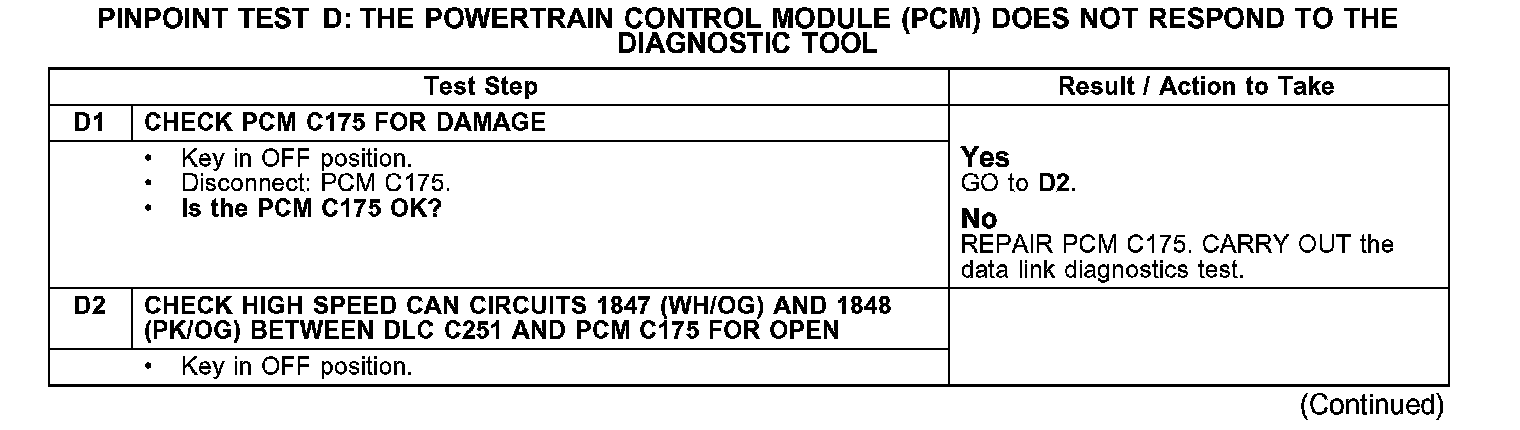

Test D1-D2:

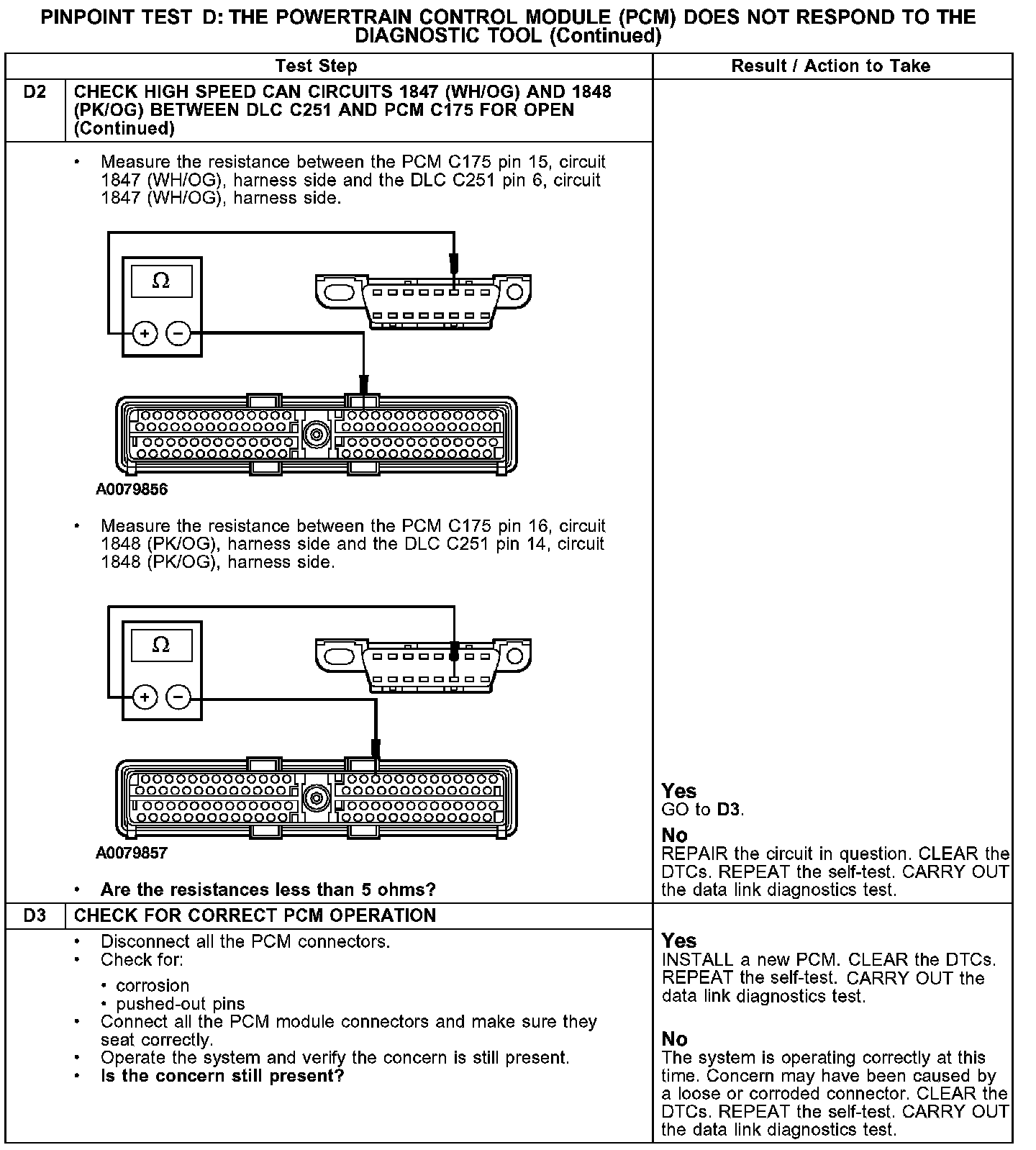

Test D2-D3:
