Test B: The Electronic Automatic Temperature Control (EATC) Module Does Not Respond to the Diagnostic Tool
Test B: The Electronic Automatic Temperature Control (EATC) Module Does Not Respond to the Diagnostic Tool
PINPOINT TEST B: THE ELECTRONIC AUTOMATIC TEMPERATURE CONTROL (EATC) MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

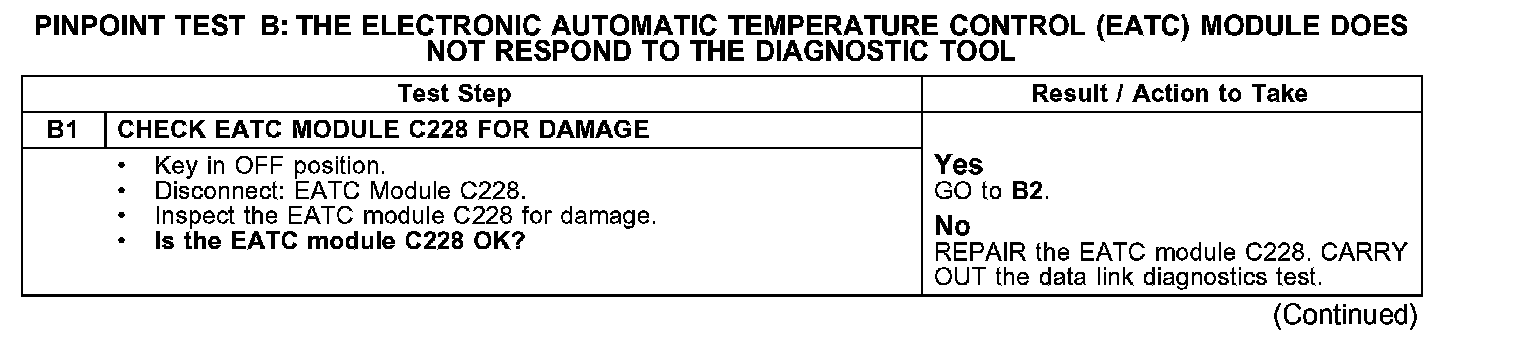

Test B1:

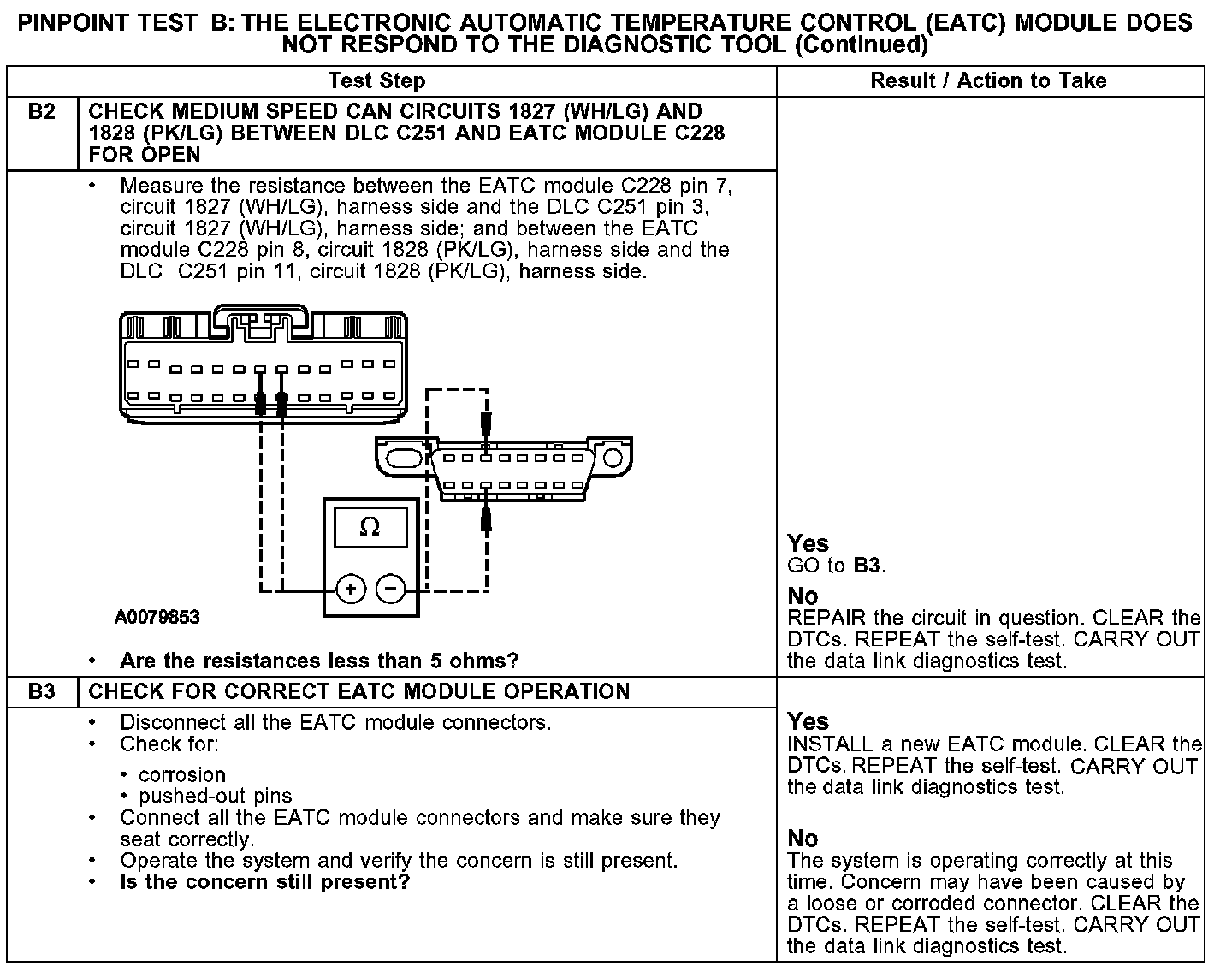

Test B2-B3:
