Test A: The Anti-Lock Brake System (ABS) Module Does Not Respond to the Diagnostic Tool

PINPOINT TEST A: THE ANTI-LOCK BRAKE SYSTEM (ABS) MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

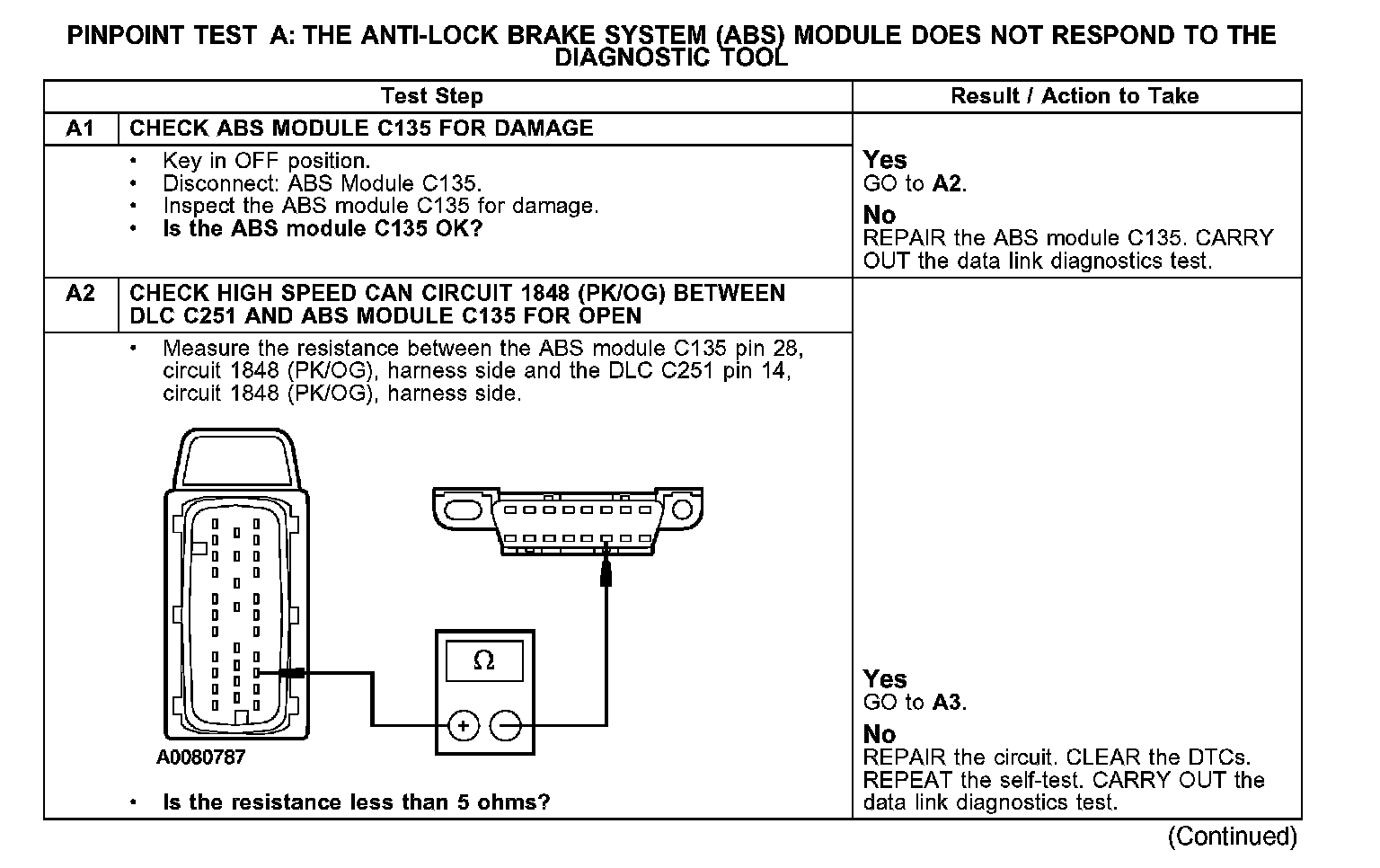

Test A1-A2:

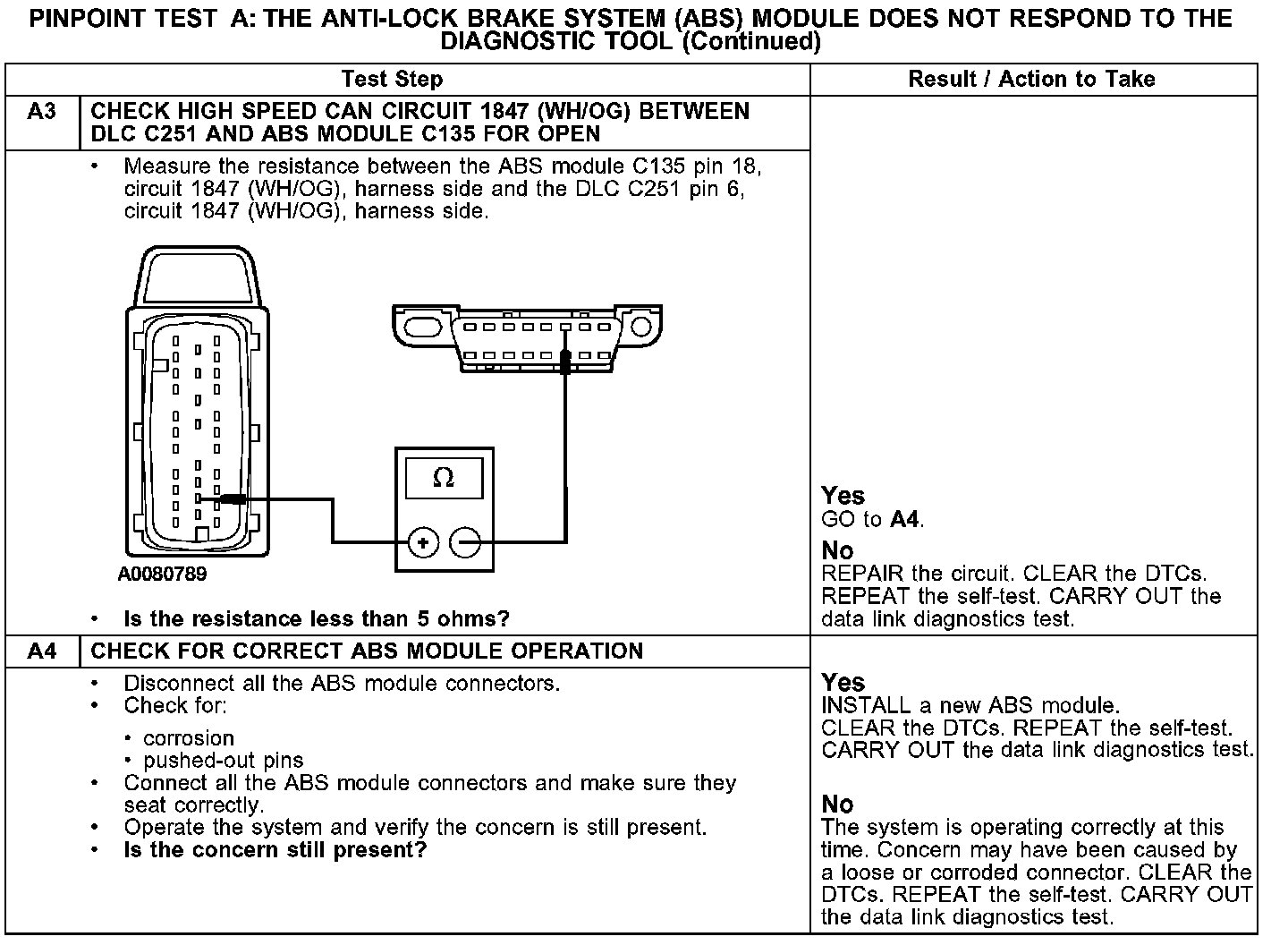

Test A3-A4:
