Inspection and Verification

INSPECTION AND VERIFICATION

1. Visually inspect for obvious signs of electrical damage.

VISUAL INSPECTION CHART

Electrical
- Wiring harness
- Connectors

Configurable Modules
The vehicle contains the following modules that are configurable:
- instrument cluster
- powertrain control module (PCM)

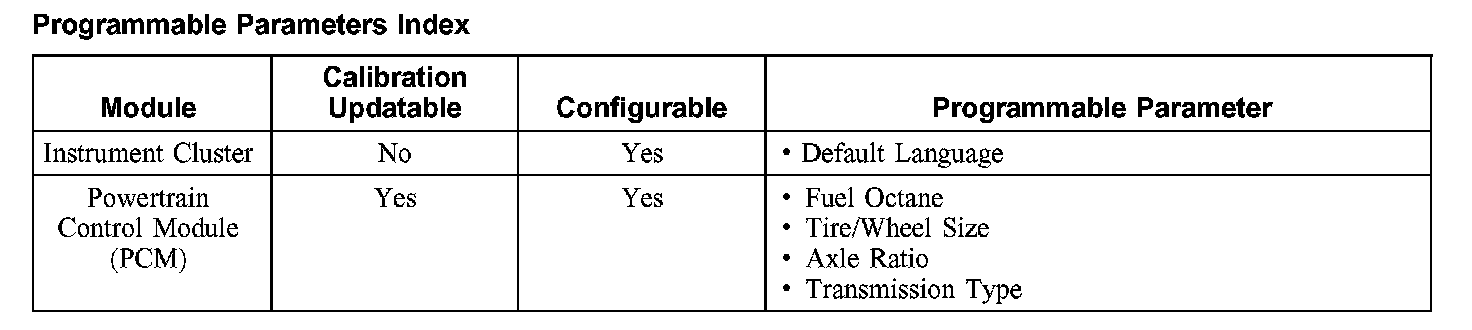

Programmable Parameters Index
