Idle Speed/Throttle Actuator - Electronic: Service and Repair

IDLE AIR CONTROL (IAC) VALVE

Removal and Installation
1. Disconnect the battery ground cable.

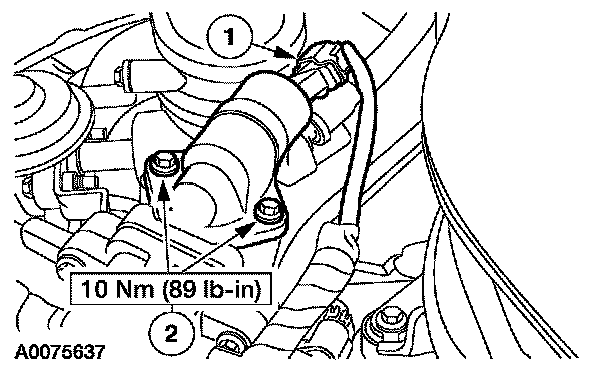

2. Remove the idle air control (IAC) solenoid.
1 Disconnect the electrical connector.
2 Remove the bolts and the IAC solenoid.

3. To install, reverse the removal procedure.
