Test O: One or More Parking, Rear or License Lamp Is Inoperative
Test O: One or More Parking, Rear or License Lamp Is Inoperative
PINPOINT TEST O: ONE OR MORE PARKING, REAR OR LICENSE LAMP IS INOPERATIVE

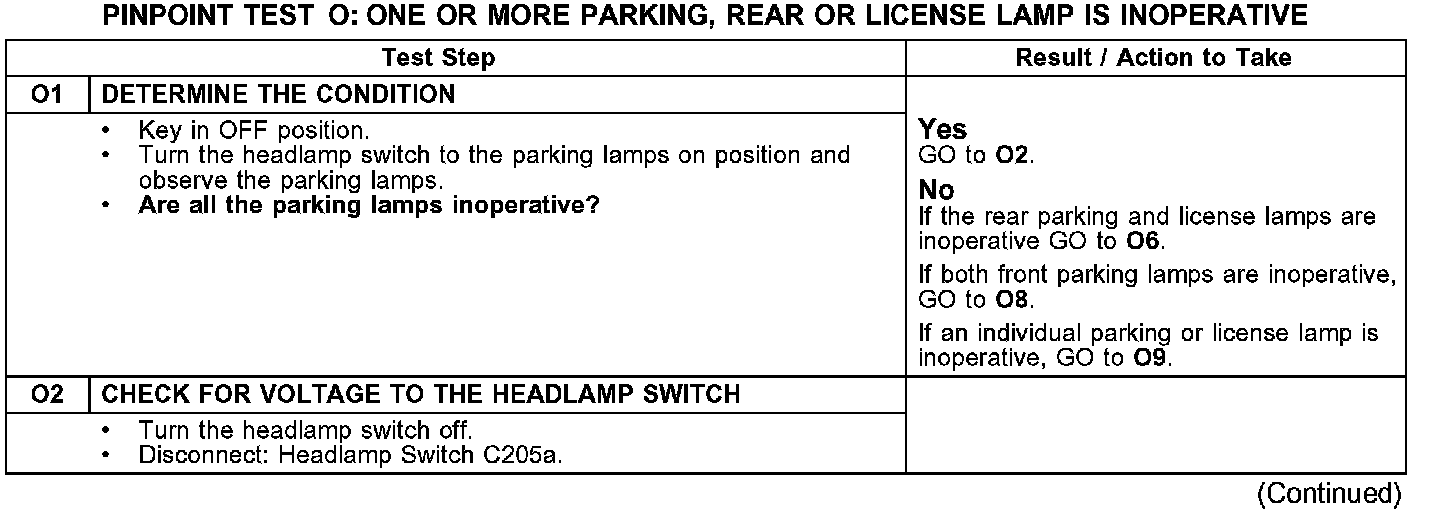

O1-O2:

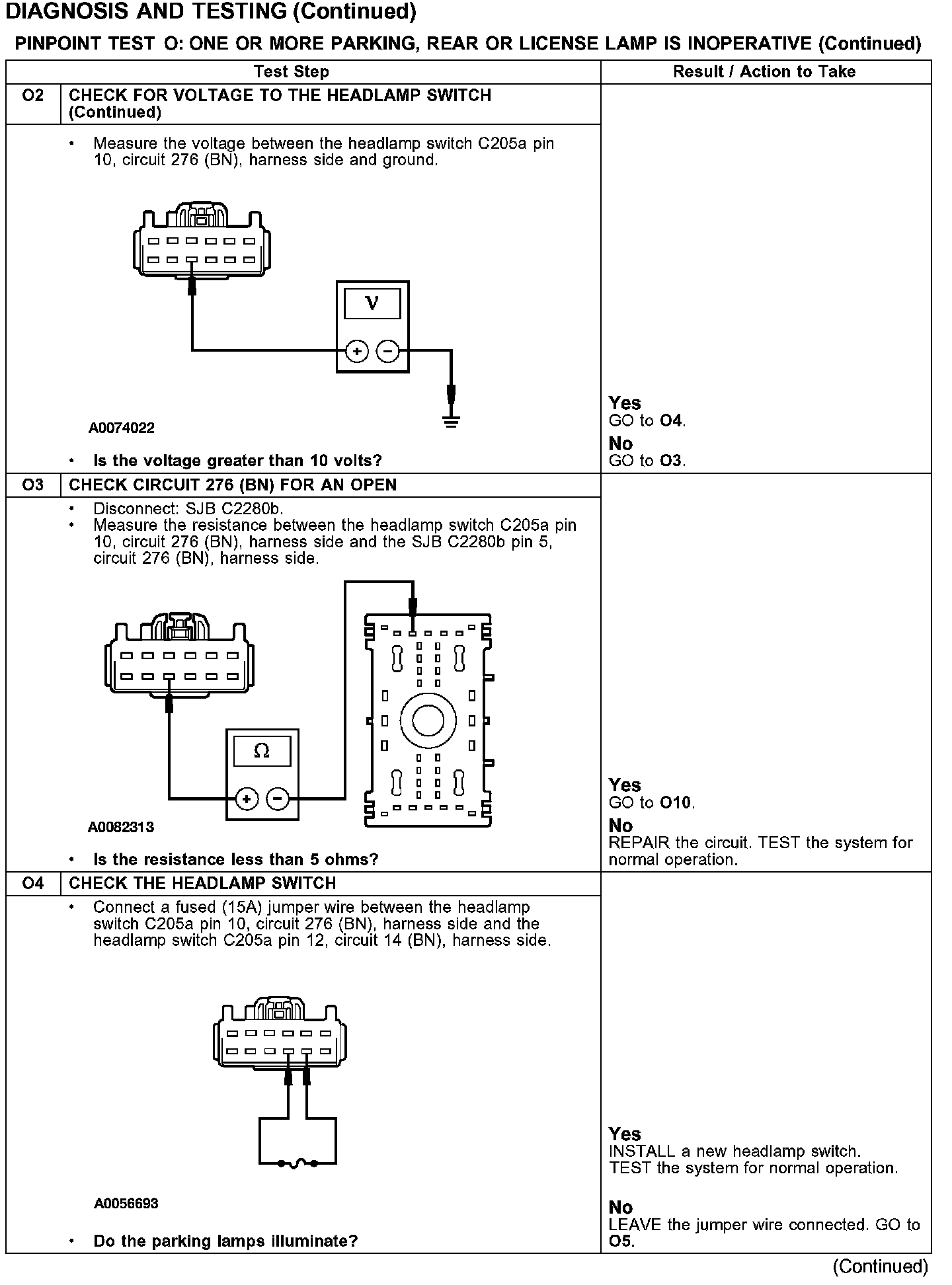

O2-O4:

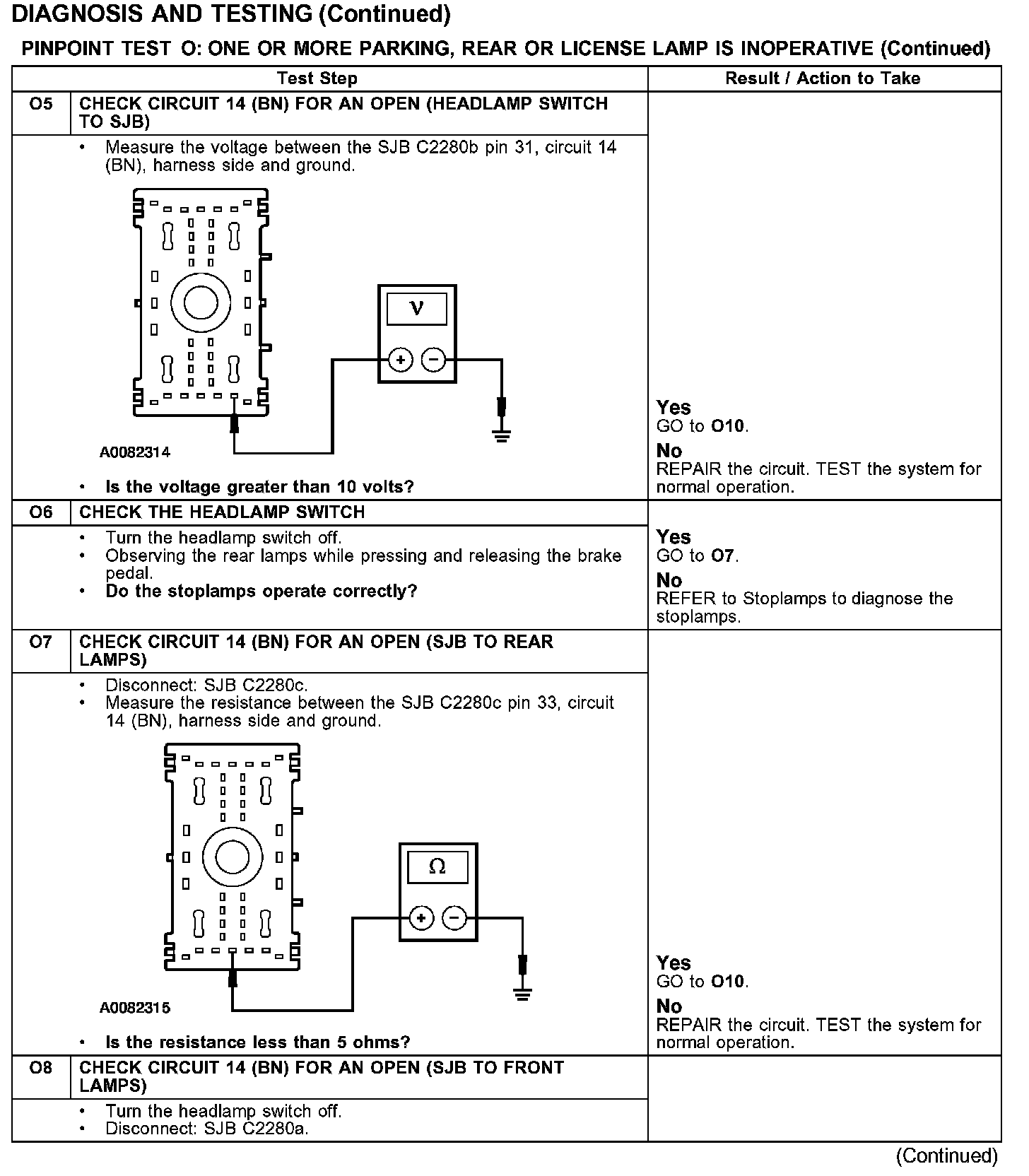

O5-O8:

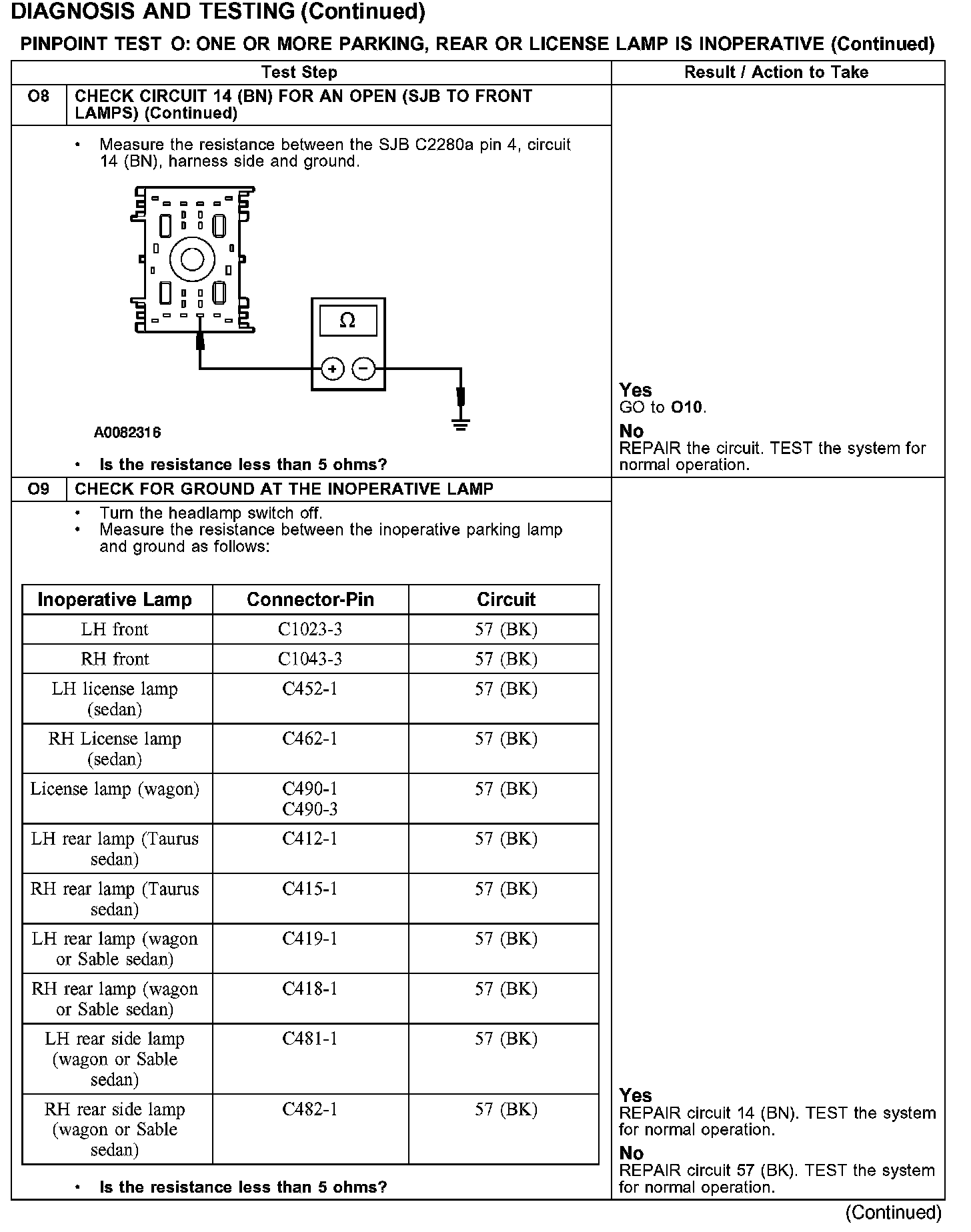

O8-O9:

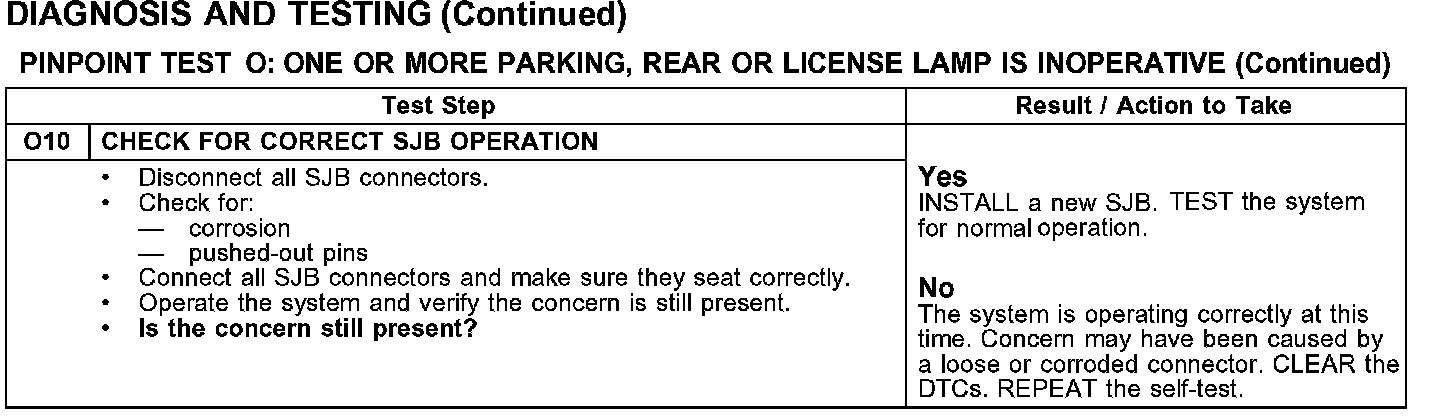

O10:
