Test D: One Low Beam Headlamp Is Inoperative
Test D: One Low Beam Headlamp Is Inoperative
PINPOINT TEST D: ONE LOW BEAM
HEADLAMP
IS INOPERATIVE

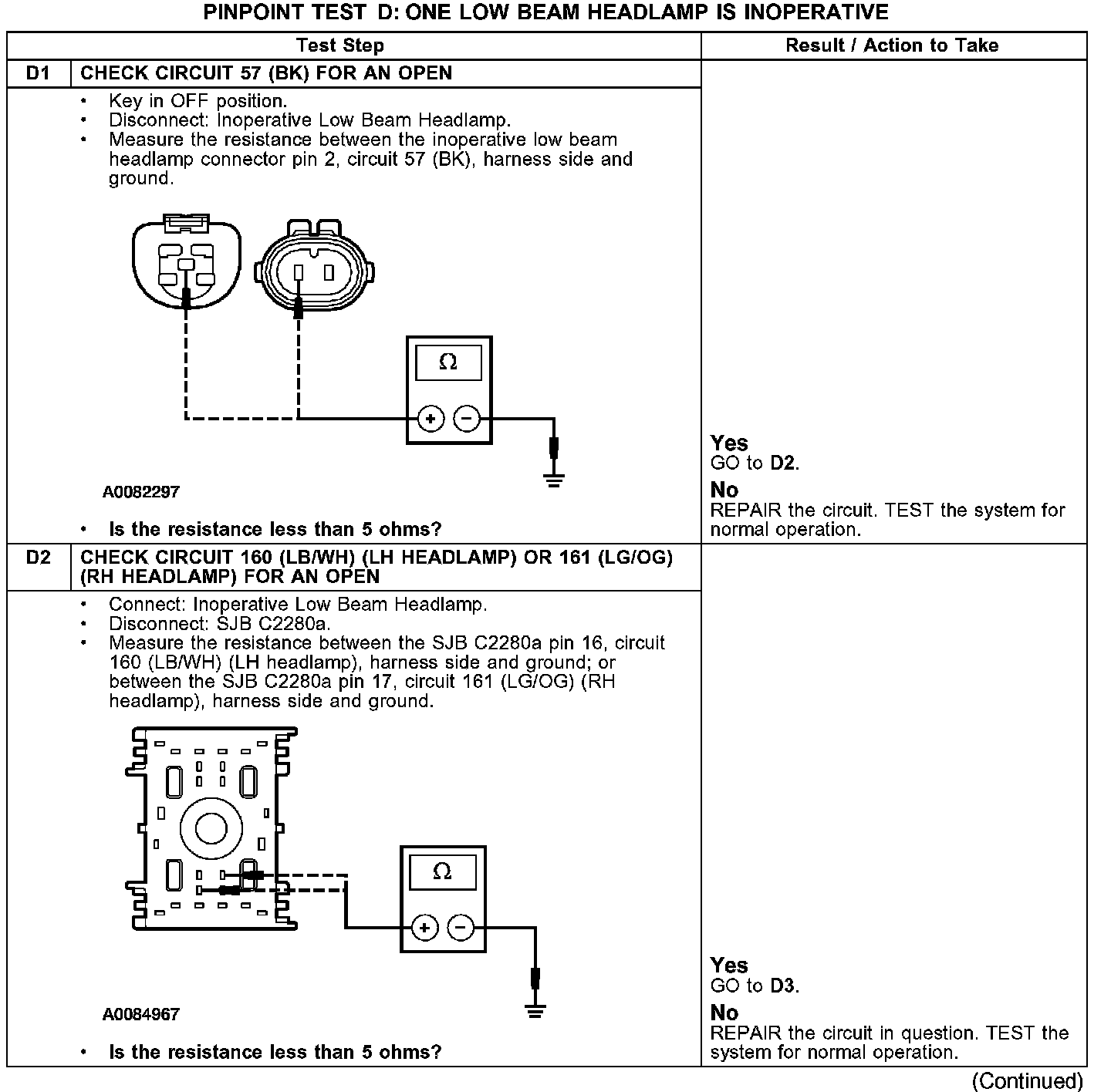

D1-D2:

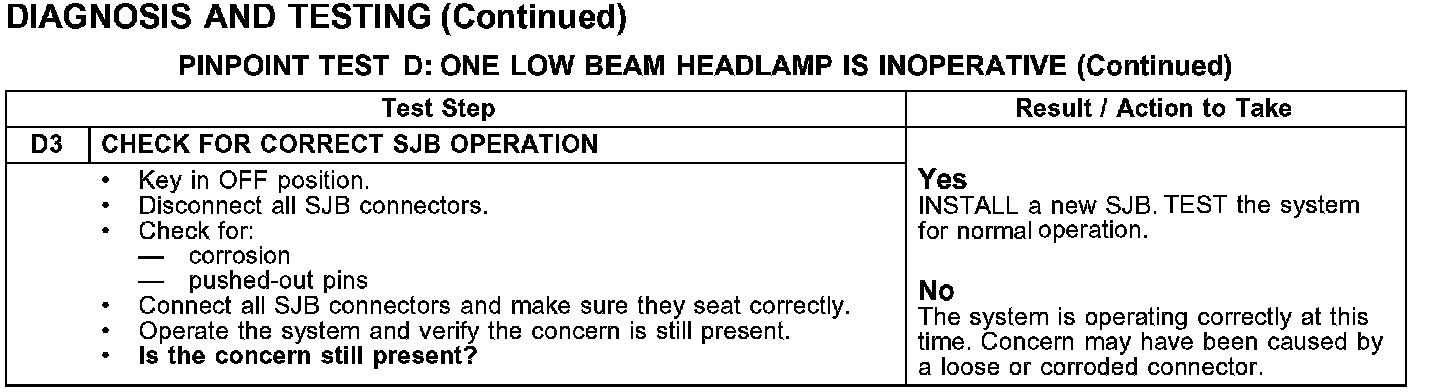

D3:
