Test G: An Individual Demand Lamp Is Inoperative
Test G: An Individual Demand Lamp Is Inoperative
PINPOINT TEST G: AN INDIVIDUAL DEMAND LAMP IS INOPERATIVE

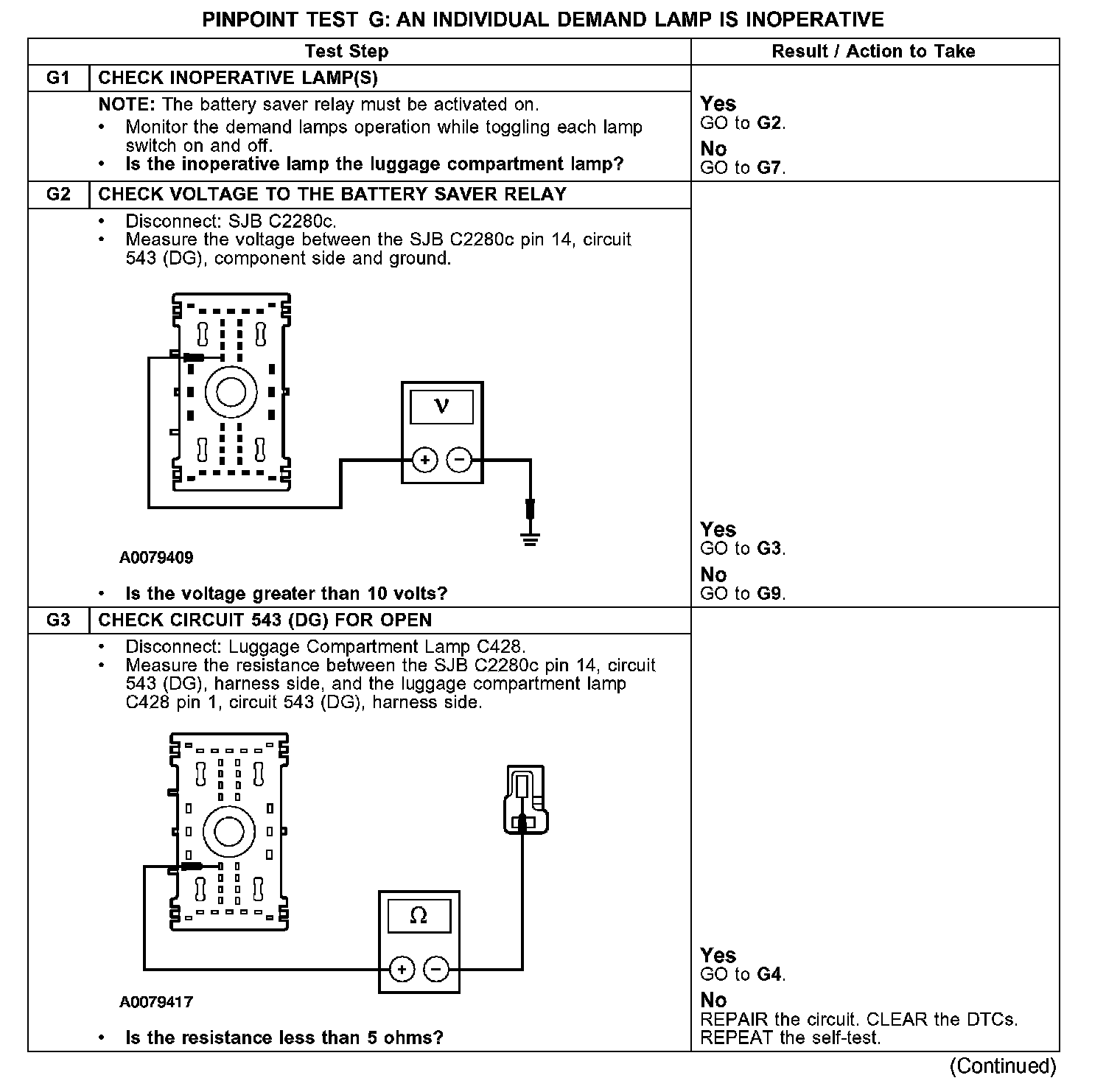

Test G1-G3:

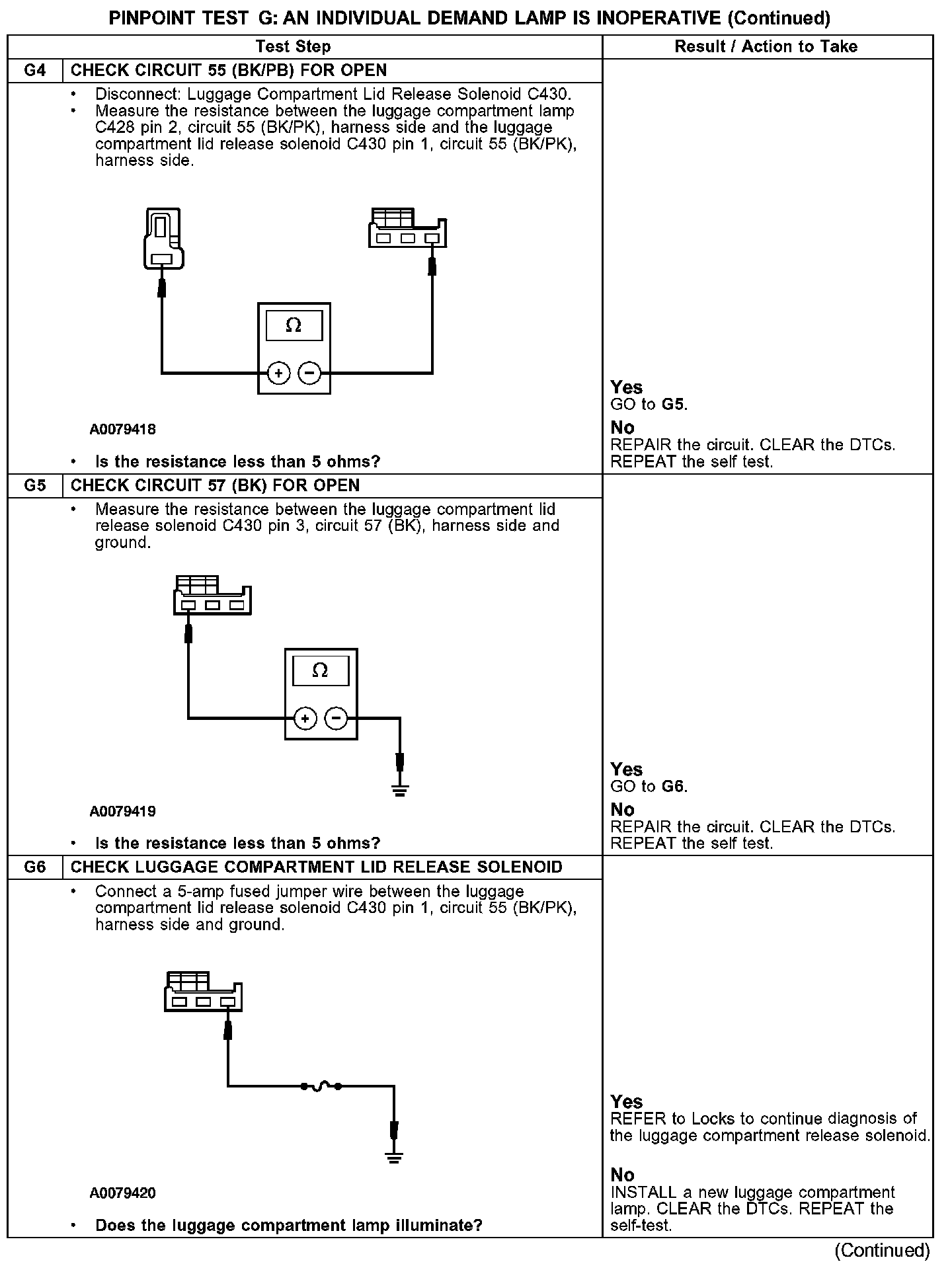

Test G4-G6:

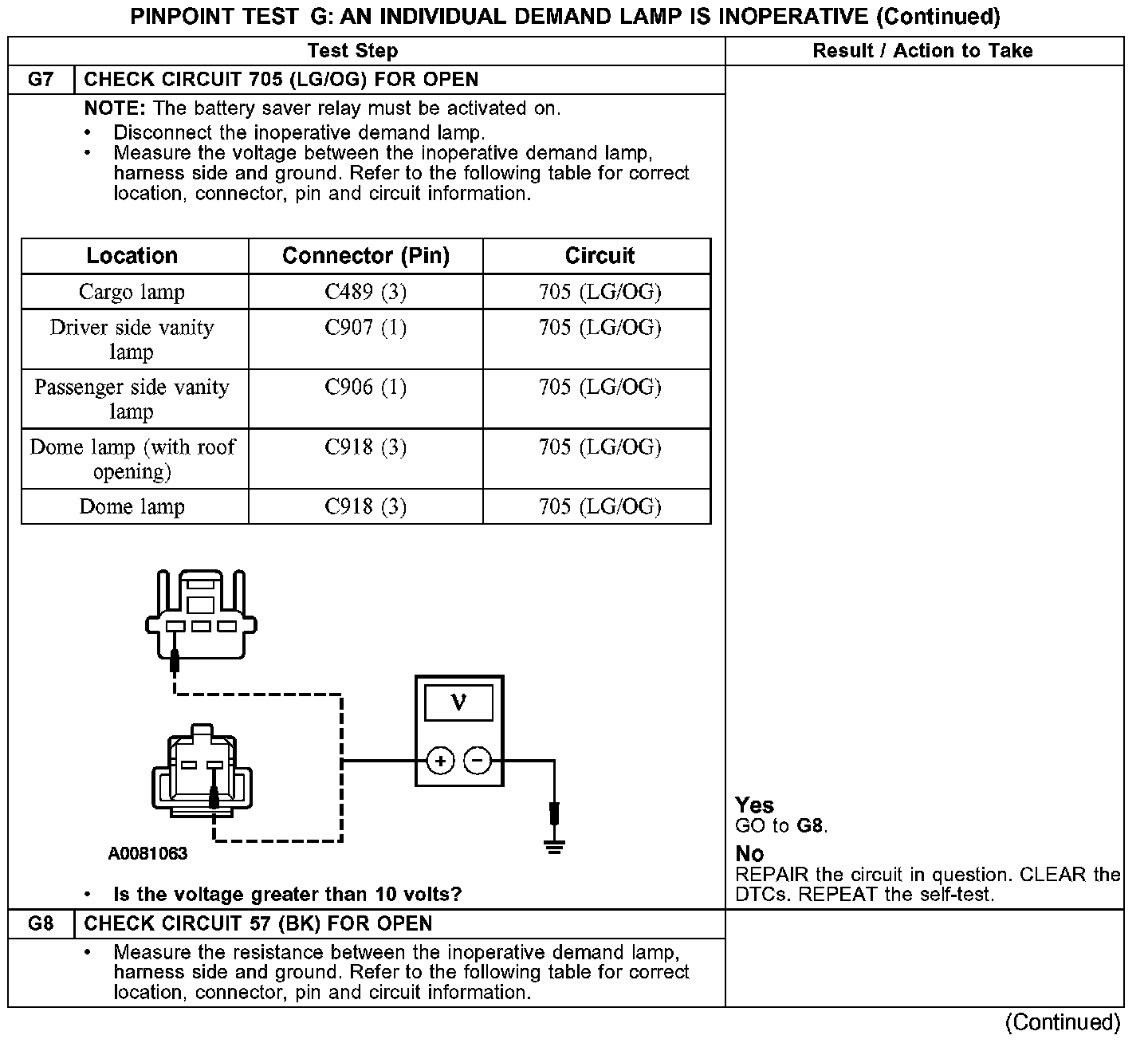

Test G7-G8:

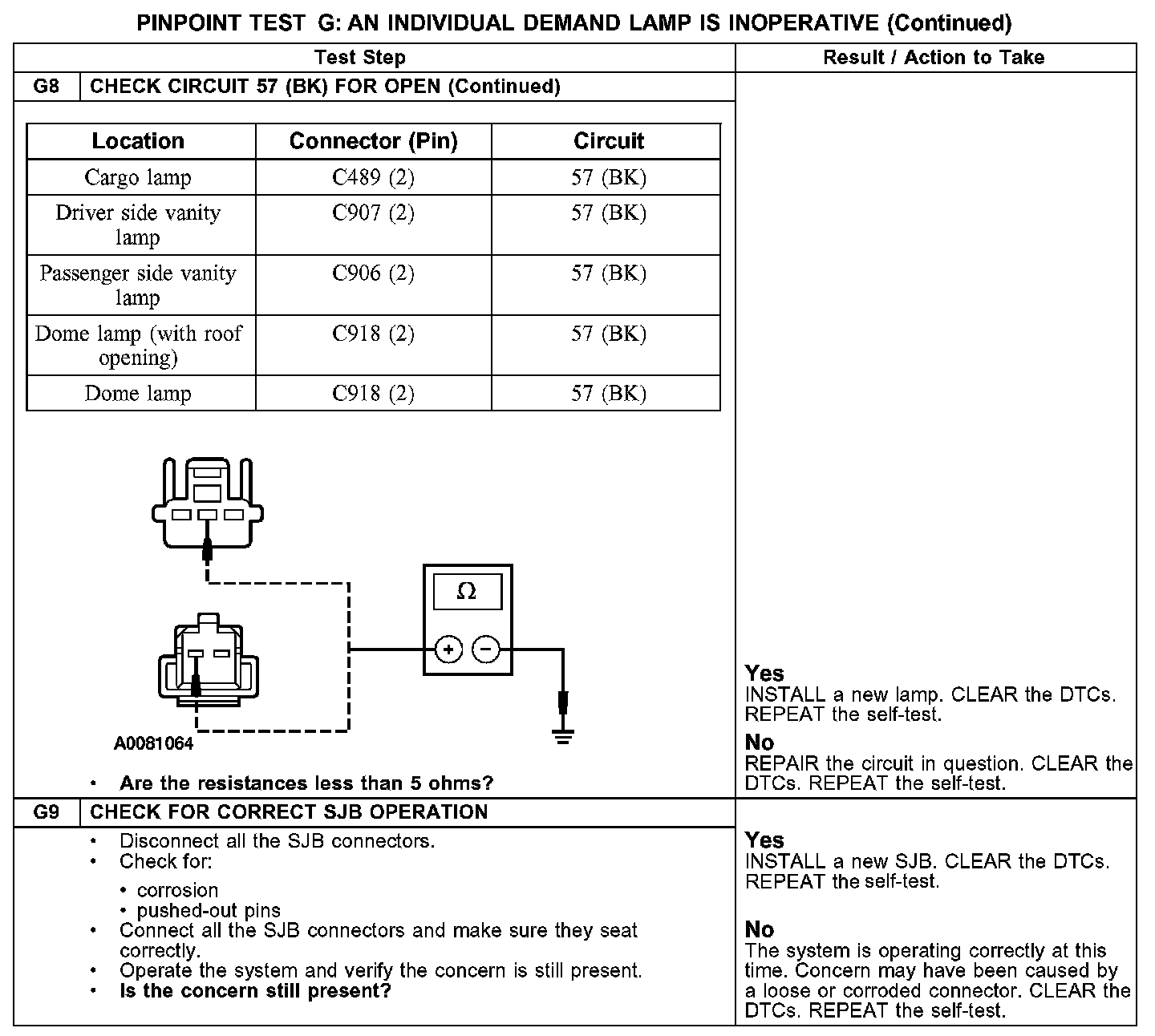

Test G8-G9:
