Test D: The Interior Lamps Do Not Turn on With One Door Open
Test D: The Interior Lamps Do Not Turn on With One Door Open
PINPOINT TEST D: THE INTERIOR LAMPS DO NOT TURN ON WITH ONE DOOR OPEN

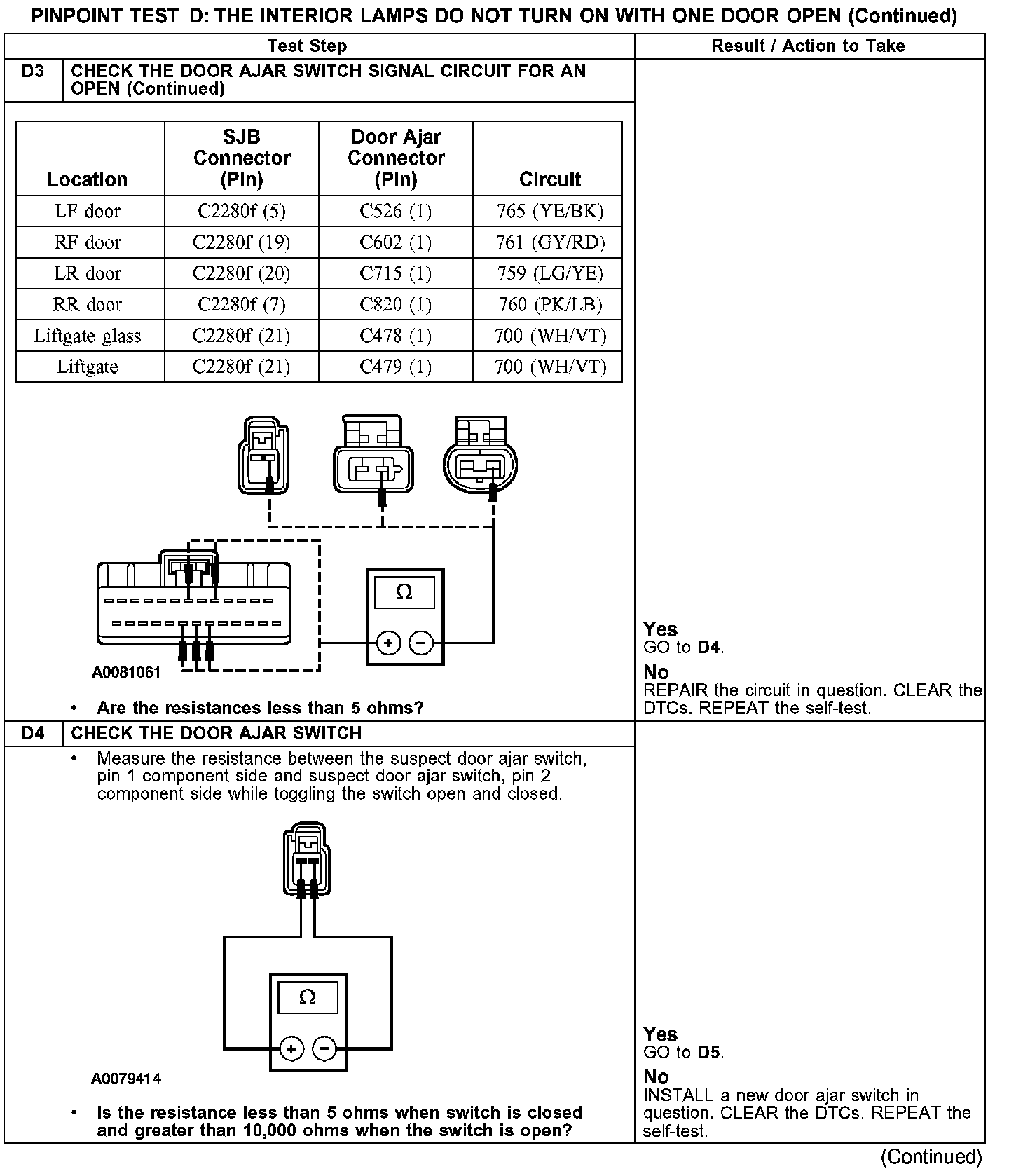

Test D1-D3:
Test D3-D4:

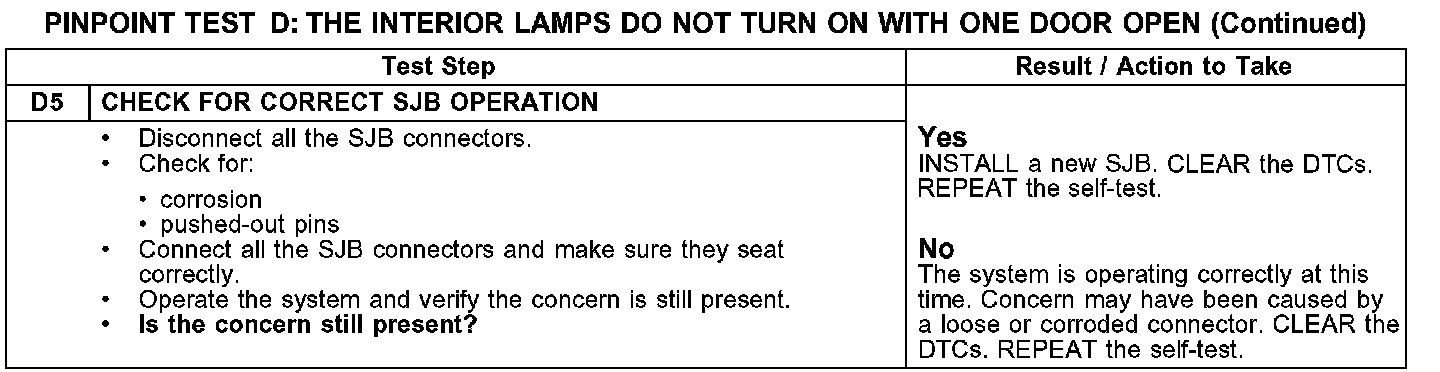

Test D5:
