Test C: The Interior Lamps Stay on Continuously
Test C: The Interior Lamps Stay on Continuously
PINPOINT TEST C: THE INTERIOR LAMPS STAY ON CONTINUOUSLY

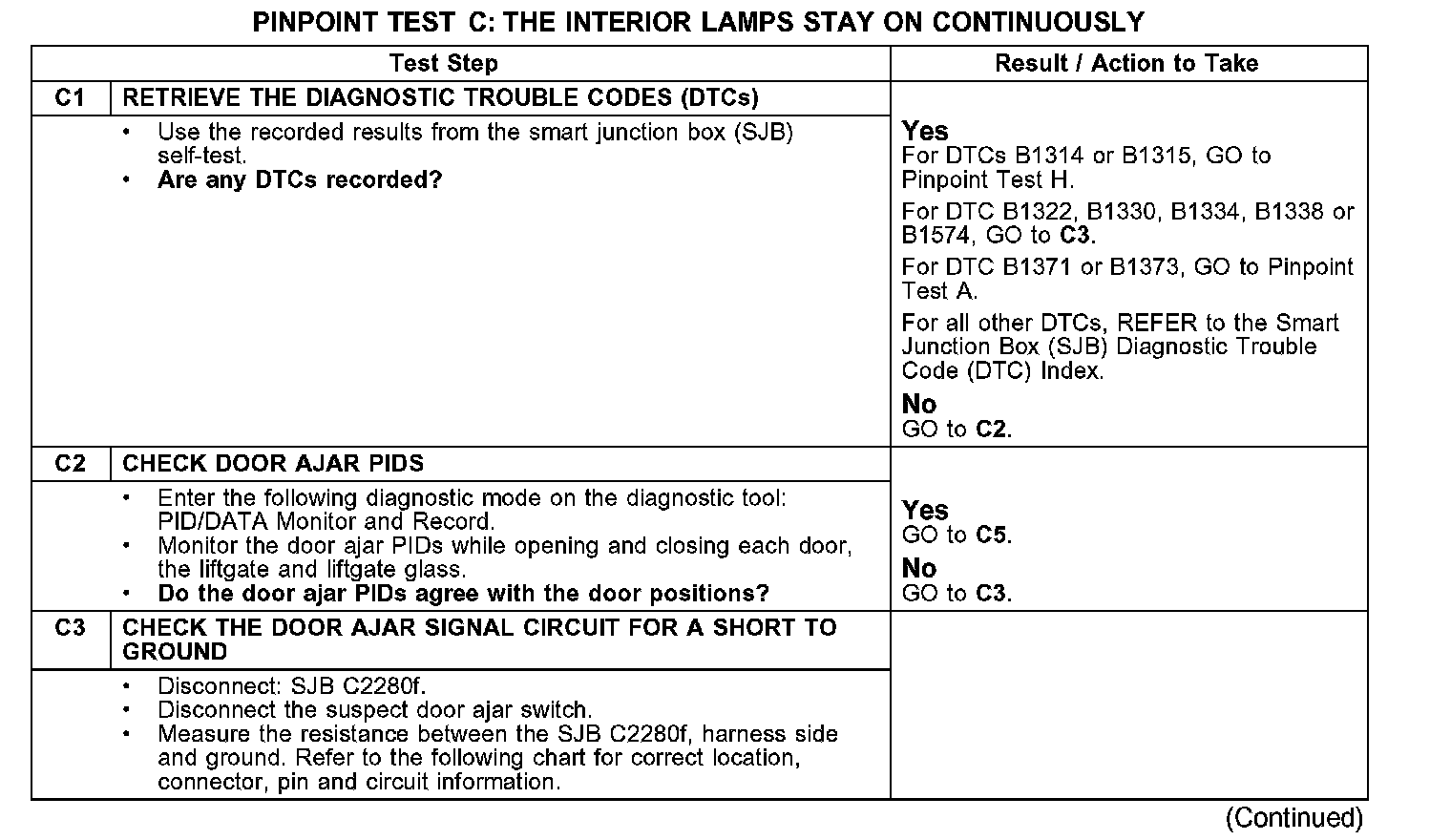

Test C1-C3:

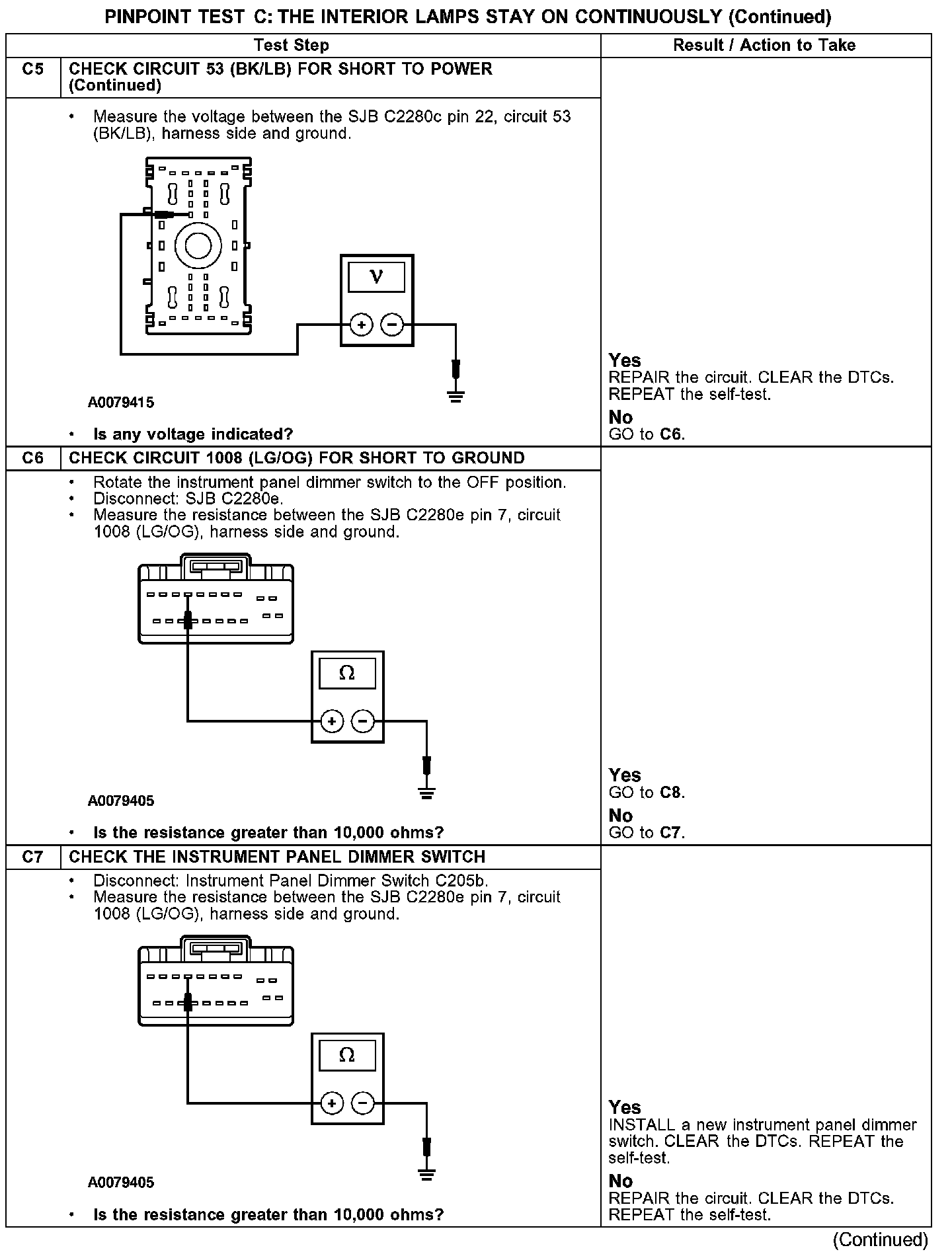

Test C3-C5:
Test C5-C7:
Test C8:
