HIGH MOUNTED STOPLAMP - PARCEL MOUNTED

Removal and Installation

CAUTION: Take care not to damage the rear parcel shelf or the LED module.

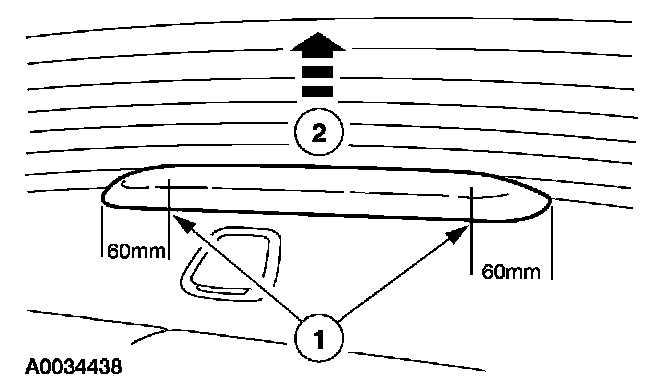

1. Disengage the LED module from the parcel shelf.
1 Insert two thin bladed 20 mm (0.8 inches) wide tools (approximately 60 mm (2.4 in) from the outside edges of the LED module) and push rearward to disengage the snaps.
2 Lift the front of the LED module from the parcel shelf.

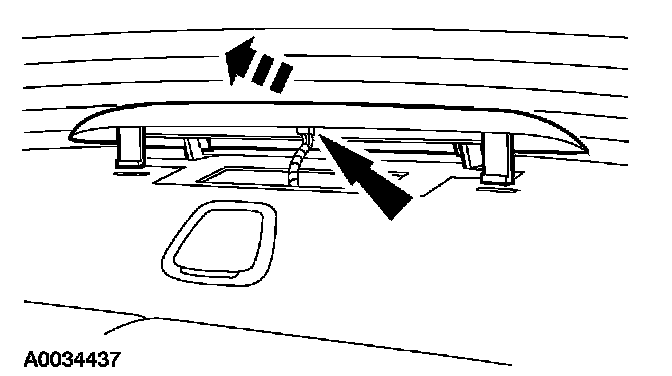

2. Remove the LED module.
- Disconnect the connector and pull the LED module forward.

3. CAUTION: To prevent water from entering the luggage compartment, make sure the rubber grommet is fully seated.

To install, reverse the removal procedure.
